Gameduino solderpad

a game adapter for microcontrollers

excamera.com/sphinx/gameduino/

Recent activity:

  • 9600 updated13 years ago
  • psd bom received13 years ago
  • psd pushed to13 years ago
  • 9600 updated13 years ago
  • 9600 schematic processed13 years ago
  • 9600 board processed13 years ago

Tagged with

Description

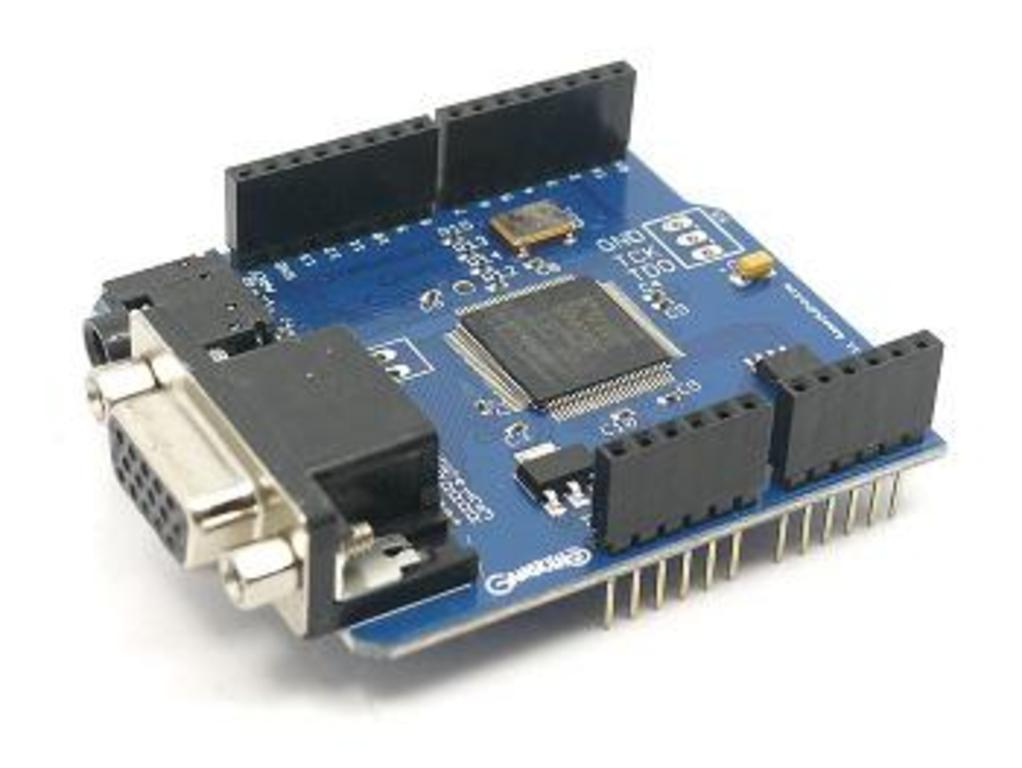

Gameduino is a game adapter for Arduino - or anything else with an SPI interface - built as a single shield that stacks up on top of the Arduino and has plugs for a VGA monitor and stereo speakers.

The sound and graphics are definitely old-school, but thanks to the latest FPGA technology, the sprite capabilities are a step above those in machines from the past.

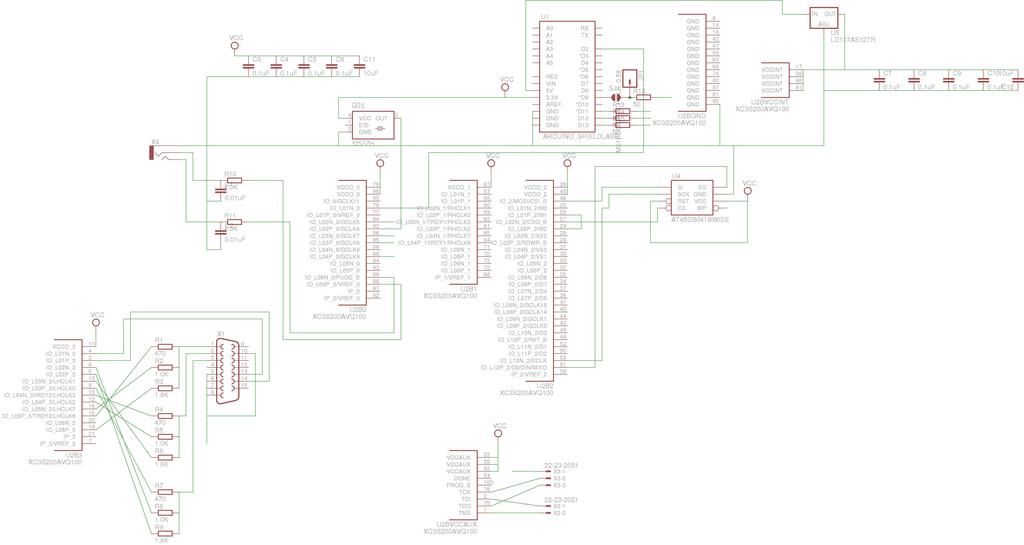

Schematic

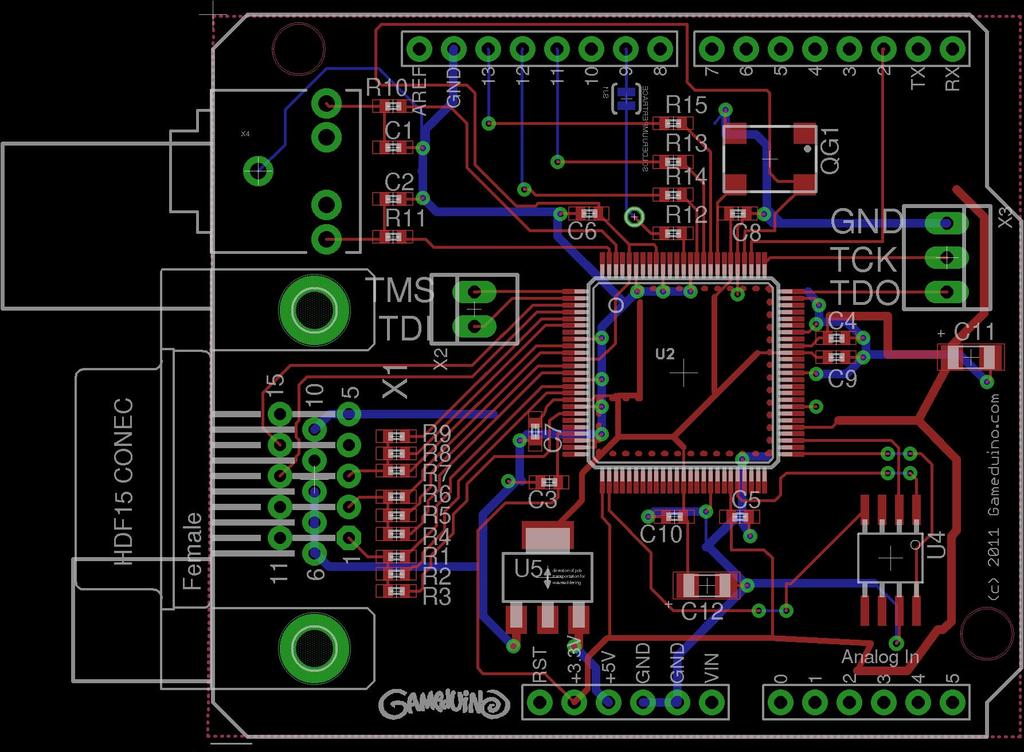

Board

Bill of Materials

Designator Value Description
C1 0.01uF CAPACITOR, European symbol
C2 0.01uF CAPACITOR, European symbol
C3 0.1uF CAPACITOR, European symbol
C4 0.1uF CAPACITOR, European symbol
C5 0.1uF CAPACITOR, European symbol
C6 0.1uF CAPACITOR, European symbol
C7 0.1uF CAPACITOR, European symbol
C8 0.1uF CAPACITOR, European symbol
C9 0.1uF CAPACITOR, European symbol
C10 0.1uF CAPACITOR, European symbol
C11 10uF CAPACITOR, European symbol
C12 10uF CAPACITOR, European symbol
JP1 M01POGOPIN_HOLE_0.58 Header 1
QG1 SM77H 3.3V CMOS Clock Oscillator
R1 470 RESISTOR, European symbol
R2 1.0K RESISTOR, European symbol
R3 1.8K RESISTOR, European symbol
R4 470 RESISTOR, European symbol
R5 1.0K RESISTOR, European symbol
R6 1.8K RESISTOR, European symbol
R7 470 RESISTOR, European symbol
R8 1.0K RESISTOR, European symbol
R9 1.8K RESISTOR, European symbol
R10 4.0K RESISTOR, European symbol
R11 4.0K RESISTOR, European symbol
R12 50 RESISTOR, European symbol
R13 50 RESISTOR, European symbol
R14 50 RESISTOR, European symbol
R15 50 RESISTOR, European symbol
SJ1 SOLDERJUMPERTRACE Solder Jumper
U1 ARDUINO_SHIELDLABEL
U2 XC3S200AVQ100 Xilinx FPGA: XC3S200AVQ100
U4 AT45DB041BWIDE
U5 LD117AS12TR Low drop fixed and adjustable positive voltage regulators 1 A
X1 SUB-D
X2 22-23-2021 .100" (2.54mm) Center Header - 2 Pin
X3 22-23-2031 .100" (2.54mm) Center Header - 3 Pin
X4 3.5mm Audio Jack

[JSON]

Files

This project is © 2009-2011 James Bowman, and is published under the terms of the BSD License licence.
