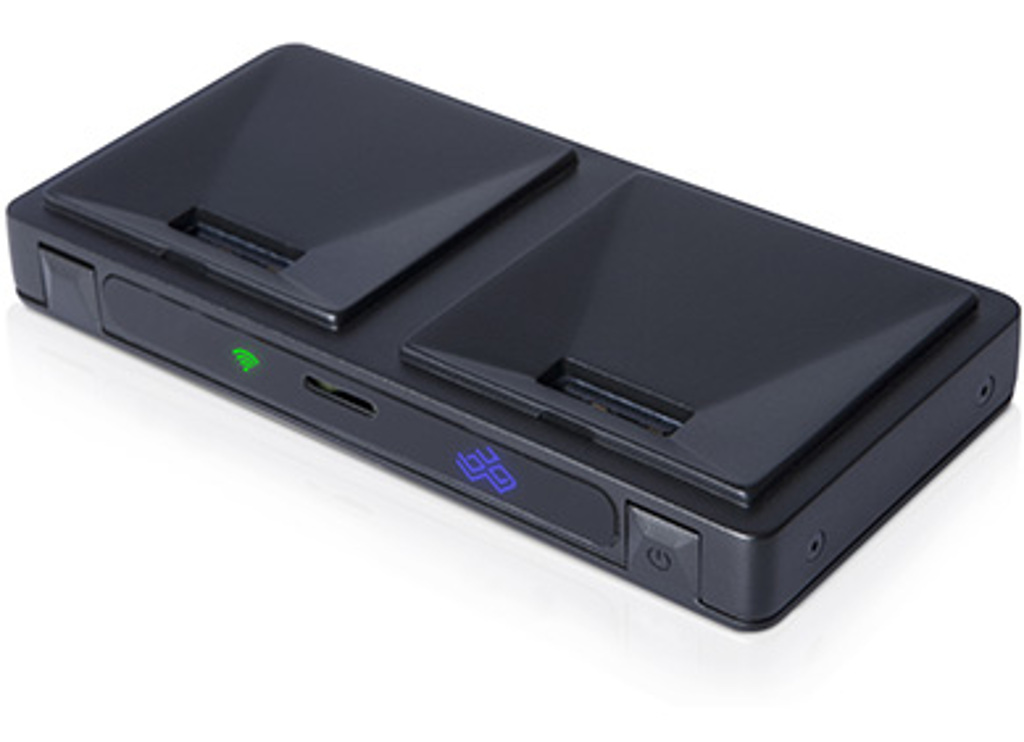

The BUG Base 2.0 Dock a.k.a. YT Edition

wiki.buglabs.net/index.php/Hardware:BUG_YT_Module

Recent activity:

  • 9600 updated13 years ago
  • psd pushed13 years ago
  • 9600 pushed13 years ago
  • 9600 pushed13 years ago
  • 9600 pushed13 years ago
  • 9600 pushed13 years ago

Tagged with

Description

Bug Labs develops and sells open-source hardware peripherals for rapid prototyping of electronic devices. The company developed a Lego-like hardware platform that technology enthusiasts, hobbyists and engineers can use to create their own digital devices.

A selection of key BUGbase 2.0 features:

  • Texas Instruments OMAP3530 processor with ARM Cortex A-8 running at 600 MHz
  • 3.5mm stereo out headphone
  • Mini-USB port can be used in Host or OTG mode
  • 30-pin BUGstinger connector (USB host, ethernet, serial port replicator)
  • 2 MicroSD slots; one each for system and user
  • 1 dedicated slot for display-related BUGmodules (BUGview, BUGvideo)
  • 3 available slots for BUGmodules (includes I2C, I2S, SPI, UART and JTAG/ICE support)
  • 4 status LEDs (i.e. WiFi, Bluetooth, battery & logo)
  • User programmable button
  • 802.11b Wi-Fi (supports mesh, AP, ad-hoc, managed modes)
  • Bluetooth 2.0 + EDR wireless technology

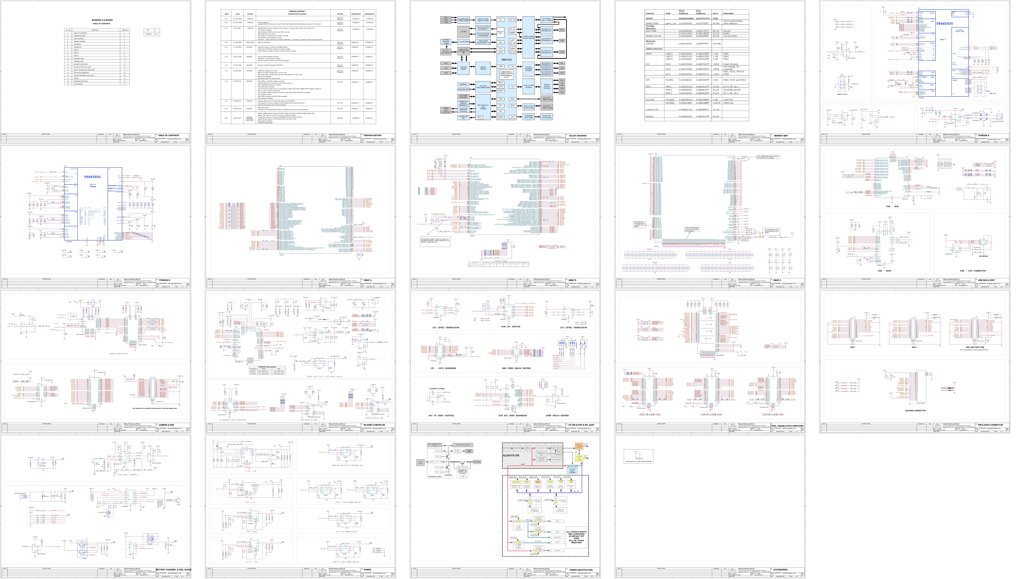

Schematic

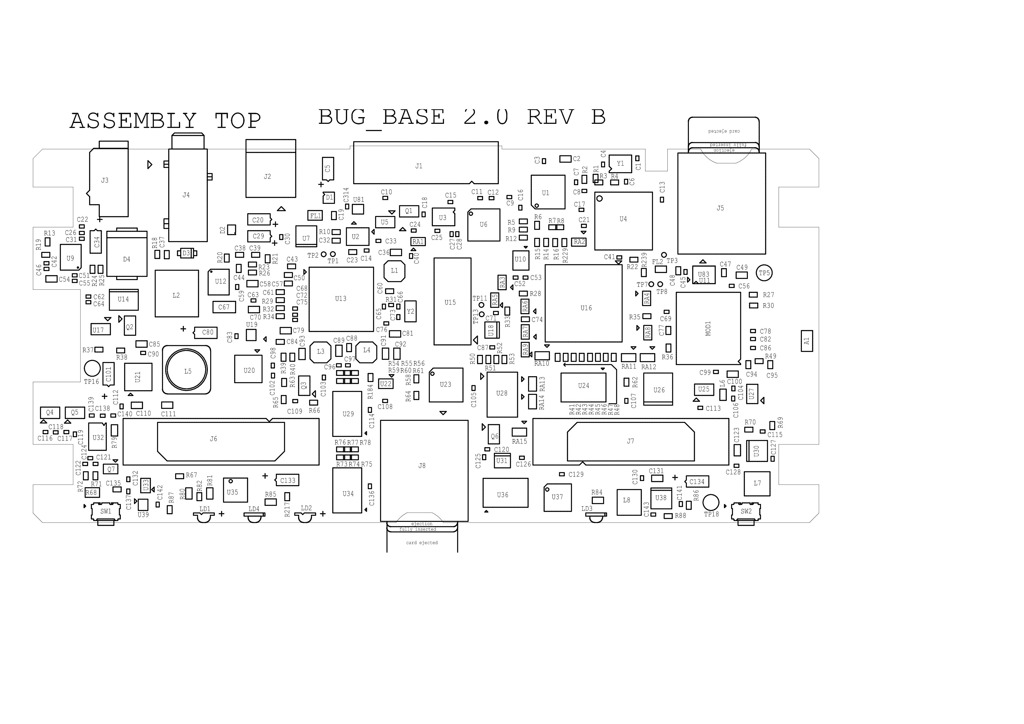

Board

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Bug Labs Inc., and is published under the terms of the GNU General Public License, version 3 licence.
