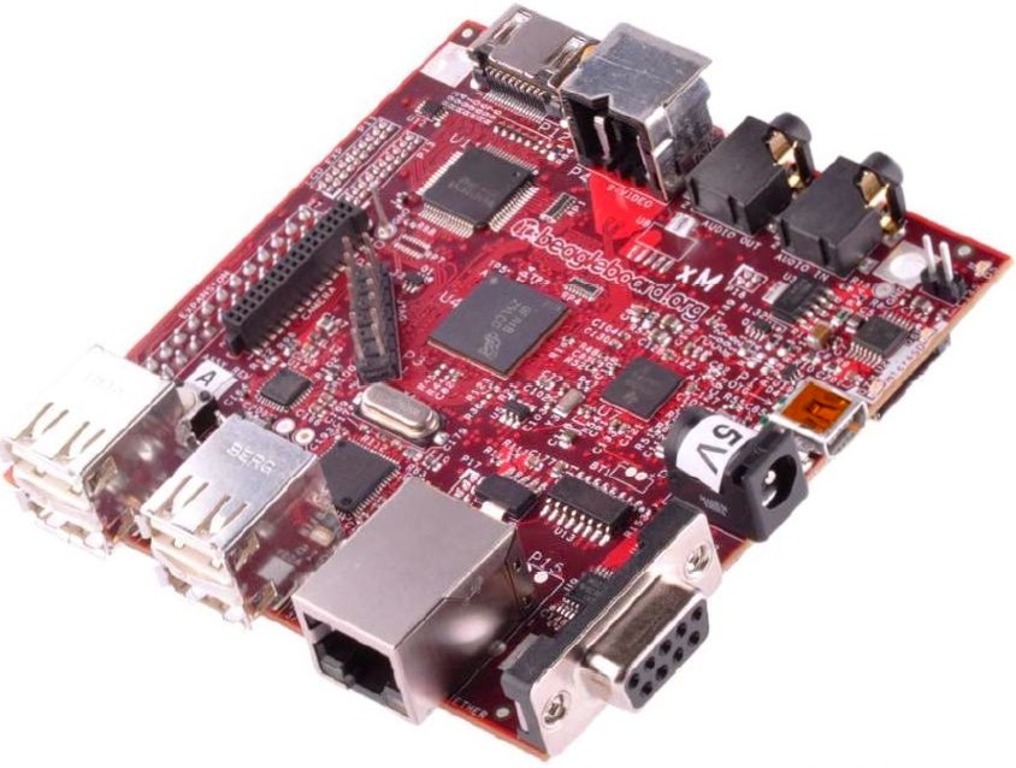

Beagleboard xM Rev C solderpad
low-power, low-cost, Linux capable single-board computer
beagleboard.orgDescription
The BeagleBoard is a low-power, low-cost single-board computer produced by Texas Instruments in association with Digi-Key. The BeagleBoard was designed with open source development in mind, and as a way of demonstrating the Texas Instrument's OMAP3530 system-on-a-chip. The board was developed by a small team of TI engineers as an educational board that could be used in colleges around the world to teach open source hardware and open source software capabilities.

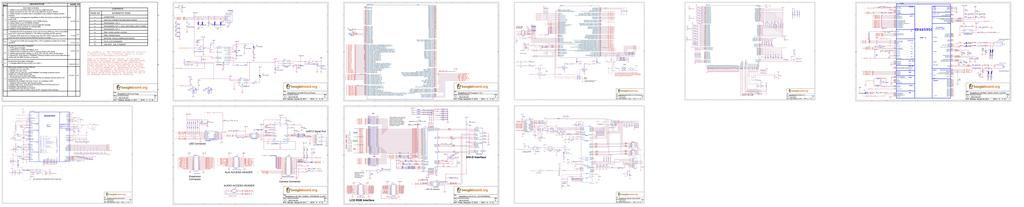

Schematic

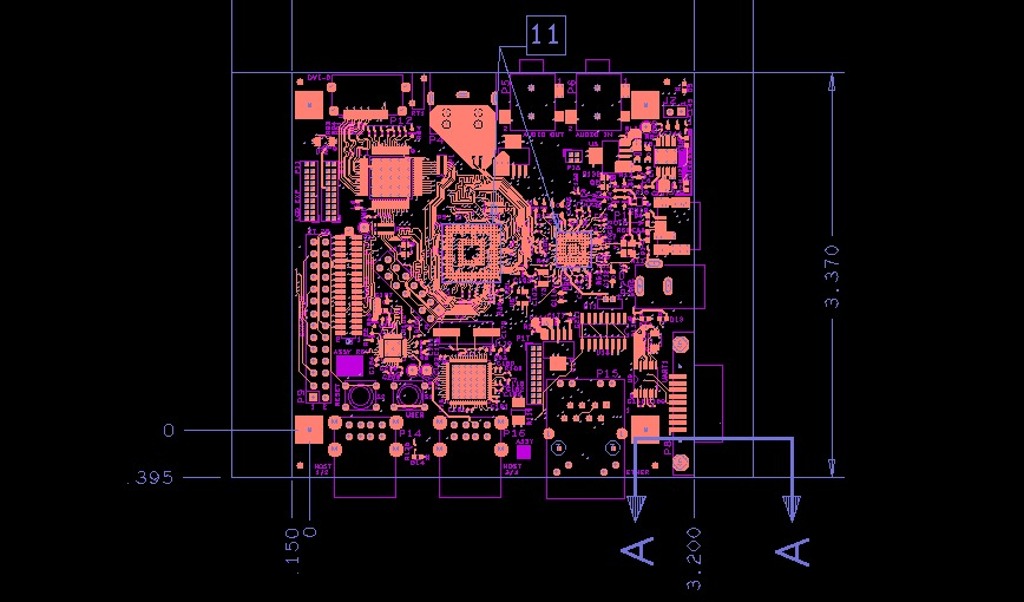

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| 4G_MICROSD | SD Card 4GB, Kingston w/adapter | |
| BEAG_BOX | BOX | |
| LABEL_XM | Label | |
| BEAG+PACK | Packing | |
| SPACE_PLAS | Standoff | |
| 500-5000-000 | Beagle PCB 6 layer, 3.35"x3.25", Rev B | |
| BT1 | VL-1220/VCN | BAT_LI_RTC |
| C5, C111, C112, C118, C119, C128, C132, C136, C140, C144, C167, C189 | JMK212BJ106KD-T | CAP CER 10UF 6.3V X5R 0805 |
| C6 | TMK316F106ZL-T | CAP CER 10UF 25V Y5V 1206 |
| C160, C161, C162, C163 | B45196H1107M209V18 | CAP TANT 100UF 6.3V 10% SMD |
| C3, C7, C8, C12, C14, C15, C17, C19, C20, C24, C25, C26, C27, C28, C29, C30, C31, C32, C33, C34, C35, C36, C37, C38, C40, C41, C42, C43, C45, C46, C47, C48, C49, C50, C51, C52, C53, C54, C56, C57, C58, C59, C60, C61, C62, C63, C64, C65, C66, C67, C68, C69, C70, C71, C72, C75, C76, C78, C83, C84, C85, C91, C98, C99, C104, C107, C110, C117, C138, C139, C143, C145, C146, C147, C148, C149, C150, C151, C152, C153, C154, C155, C156, C157, C158, C159, C164, C165, C168, C170, C171, C172, C173, C174, C175, C176, C180, C181, C182, C183, C185, C186, C188, C191, C192, C193, C194, C195, C197, C204, C206 | LMK105BJ104KV-F | CAP CER .10UF 10V X5R 0402 |
| C10, C11, C89, C90, C100, C101 | C1005C0G1H470J | CAP CER 47PF 50V C0G 5% 0402 |
| C13, C16, C18, C21, C22, C23, C39, C44, C55, C77, C86, C105, C166, C169, C177, C184, C190, C205, C207, C211 | ECJ-1VB0J475M | CAP CERAMIC 4.7UF 6.3V X5R 0603 |
| C73, C74, C79, C80, C81, C108, C109, C113, C114, C115, C116, C120, C121, C123, C124, C125, C126, C127, C129, C130, C131, C133, C134, C135, C137, C187, C196, C210, C213 | GRM155R61A105KE15D | CAP CER 1UF 10V X5R 0402 |
| C82 | CC0402KRX7R7BB102 | CAP CERAMIC .001UF 16V X7R 0402 |
| C87, C88 | GRM32ER61A476KE20L | CAP CER 47UF 10V X5R 1210 |
| C92, C93, C94, C95, C96, C97, C199 | C0402C101J3GACTU | CAP CERAMIC 100PF 25V NP0 0402 |
| C102, C103 | ECJ-0EC1H220J | CAP 22PF 50V CERAMIC 0402 SMD |
| C106, C122 | JMK105BJ225MV-F | CAP CER 2.2UF 6.3V X5R 0402 |
| C198 | GRM155R71H223KA12D | CAP CER 22000PF 50V X7R 0402 |
| C178, C179 | C0402C330J5GACTU | CAP CERAMIC 33PF 50V NP0 0402 |
| D1, D2, D3, D4, D8, D9, D10, D11 | PGB1010603MR | PulseGuard Supressors 0603 24VDC 45A |
| D5, D6, D7, D12, D14 | LTST-C190GKT | LED GREEN CLEAR 0603 SMD |
| D13 | LTST-C190CKT | LED RED CLEAR 0603 SMD |
| J2 | 67997-472HLF | HDR2_.1x.1 |
| L2, L3 | 83R3K-T | INDUCTOR 3.3UH 10% 0603 SMD |
| L4, L6 | LPS3015-102MLC | IND, POWER, 1.0UH, 30%, ISAT=2.0A, SMT |
| L5 | LPS3010-102MLC | IND, POWER, 1.0UH, 30%, SMT |
| L7, L8, L9 | MMZ1608R301A | FERRITE CHIP 300 OHM 500MA 0603 |
| L10, L11 | BLM18PG121SN1D | FERRITE CHIP 120 OHM 2000MA 0603 |
| P1 | 56579-0576 | CONN RECEPT USB 5POS RT ANG SMD |
| P2 | PJ-002A | CONN POWER JACK 2.1MM |
| P3 | 67997-472HLF | HEADER 14POS .100" STR TIN, DUAL ROW, 7 x2 |
| P4 | 5749181-1 | CONN RECEPT RTANG 4 POS GOLD PCB |
| P5, P6 | SJ1-3513-SMT | CONN JACK STEREO 3POS 3.5MM SMD |
| P7 | SCHA2B0300 | CONN EJECT MICROSD PUSH-PUSH SMD |
| P8 | 190-009-263R001 | CONN DB9 FEMALE R/A SOLDER SMD |
| P9 | LSWSS-114-D-02-T-LF | EXP_HDR_28 |
| P10 | HDR_17x2_1.27mm | F618-MG -D051-XX-CF358 |
| P11, P13, P17 | HDR 10X2_1.27mm | HDR 10X2_1.27mm |
| P18 | HDR 2X2_1.27mm | HDR 2X2_1.27mm |
| P12 | 10029449-001RLF | CONN RCPT HDMI R/A SMD |
| P14, P16 | 649-72309-8034BLF | USB Connectors USB RECEPT ASSEMBLY DOUBLE DECK |
| P15 | CONN_ETHER_MAG | CONN MAGJACK 1PRT 10/100B-TX Y/G |
| Q1, Q2 | XP0421400L | TRANS ARRAY PNP/PNP W/RES S MINI |
| RP7, RP2, RP3, RP4 | EXB-2HV100JV | RES ARRAY 10 OHM 5% 8 RES SMD |
| RT1 | RXEF010 | POLYSWITCH RXE SERIES 0.10A HOLD |
| R57, R65, R66, R67, R83, R98, R159 | ERJ-3GEY0R00V | RES 0.0 OHM 1/10W 5% 0603 SMD |
| R1, R8, R24, R25, R31, R37, R38, R41, R42, R43, R54, R62, R72, R73, R74, R75, R76, R77, R81, R86, R90, R93, R94, R103, R106, R107, R108, R118, R123, R124, R125, R128, R129, R130, R135, R138, R140, R141 | RC0402FR-0710KL | RES 10.0K OHM 1/16W 1% 0402 SMD |
| R63 | RC0603FR-0712K4L | RES 12.4K OHM 1/10W 1% 0603 SMD |
| R9 | MCR03EZPFX6203 | RES 620K OHM 1/10W 1% 0603 SMD |
| R48, R49, R109 | RES_12K_.1_0402 | RES 12K OHM 1/16W 0.1% 0402 SMD |
| R10 | MCR03EZPFX2003 | RES 200K OHM 1/10W 1% 0603 SMD |
| R13 | 73L3R10J | RES 0.10 OHM 1/8W 5% 0805 |
| R119 | CRCW12100000Z0EA | RES 0.0 OHM 1/3W 5% 1210 SMD |
| R14, R111 | CRCW040256K2FKED | RES 56.2K OHM 1/16W 1% 0402 SMD |
| R15, R131 | ERJ-2RKF2262X | RES 22.6K OHM 1/10W 1% 0402 SMD |
| R16, R35, R47, R51, R56, R58, R60, R157 | CRCW040233R0JNED | RES 33 OHM 1/16W 5% 0402 SMD |
| R110, R114, R115, R116 | RC0805FR-0749R9L | RES 49.9 OHM 1/16W 1% 0805 SMD |
| R117 | RC0402FR-0710RL | RES 10.0 OHM 1/16W 1% 0402 SMD |
| R17, R88, R91 | CRCW04021K00JNED | RES 1.0K OHM 1/16W 5% 0402 SMD |
| R18, R19, R20, R21, R55, R59, R61, R89, R92, R34 | CRCW04024K70JNED | RES 4.7K OHM 1/16W 5% 0402 SMD |
| R26, R27, R28, R29, R30, R101, R105 | CRCW0402100KJNED | RES 100K OHM 1/16W 5% 0402 SMD |
| R32, R33 | CRCW04021K65FKED | RES 1.65K OHM 1/16W 1% 0402 SMD |
| R12, R39, R40, R50, R64, R104, R136, R144, R152 | RC0402JR-07330RL | RES 330 OHM 1/16W 5% 0402 SMD |
| R120 | MCR03EZPFX2003 | RES 200K OHM 1/10W 1% 0402 SMD |
| R113, R150, R153 | CRCW040232K4FKED | RES 32.4K OHM 1/10W 5% 0402 SMD |
| R78, R82, R100, R146, R149, R151, R158 | MCR01MZPJ000 | RES 0.0 OHM 1/16W 5% 0402 SMD |
| R84 | MCR03EZPFX8451 | RES 8.45K OHM 1/10W 1% 0603 SMD |
| R85, R102, R132 | MCR03EZPFX8061 | RES 8.06K OHM 1/10W 1% 0603 SMD |
| R87, R121, R22, R23, R137 | RC0402FR-07510RL | RES, 510 OHM 1/10W 1% 0603 SMD |
| R112 | RC0402JR-071ML | RES 1M OHM 1/5W 5% 0402 SMD |
| R52, R53 | RES_10K_.1_0402 | RES 10K OHM 1/16W .1% 0402 SMD |
| S1, S2 | B3F-1000 | SWITCH TACT 6MM MOM 100GF |
| U2 | TPS2141IPWP | IC USB ADJ LDO 5V HP 14-HTSSOP |
| U3, U16 | TL1963ADCQR | Regulators - Low Dropout (LDO) 1.5A LDO Reg |
| U4 | XDM3730ACBP | DM3730_ES1.0 |
| U4X | IC_MEM_POP_0G-4G | IC,512MB Memory, POP |
| U5 | SN74LVC2G07DBV | IC BUFF/DVR DL NON-INV SOT236 |
| U18 | SN74LVC2G06DCK | IC DUAL BUFF/DRVR INV W/OD SC70-6 |
| U19 | TPS3803G15DCKR | IC VOLT DETECTOR ADJ/1.5V SC70-5 |
| U31, U32 | IC_SWITCH_20V | IC LOAD SWITCH INT 20VIN SSOT-6 |
| U7 | TPS65950BZXN | IC PWR MGMT W/11 LDO 209-BGA |
| U9 | SN65C3221EPWR | IC LINE DVR/RCVR 1CH 16-TSSOP |
| U10, U12 | TXS0102DCUR | IC VOLT-LEVEL TRANSLATOR 8-US8 |
| U11 | TFP410PAP | IC TRANSMITTER DIGITAL 64-HTQFP |
| U13 | TPS2054BD | IC SWITCH PWR DIST QUAD 16-SOIC |
| U14 | USB3320C-EZK | IC, USB3326 (CSP) |
| U15 | LAN9514-JZX | IC, Ethernet Controllers USB 4 Port Hub Int 10/100 Ethernet |
| Y3 | FX135A-327 | 32KHz Crystal |
| Y4 | ECS-250-20-5PVX | CRYSTAL 25.000 MHZ 20PF SMD |
| Y1 | OSC_26MHZ | ECLIPTEK_26MHZ |
