XBMC USB Controller solderpad

XBMC USB Controller for Media Center PCs

harkopen.com/projects/xbmc-usb-controller-media-center-pcs

Recent activity:

  • psd schematic processed13 years ago
  • psd board processed13 years ago
  • psd board received13 years ago
  • psd schematic received13 years ago
  • psd photo received13 years ago
  • psd bom received13 years ago

Tagged with

Description

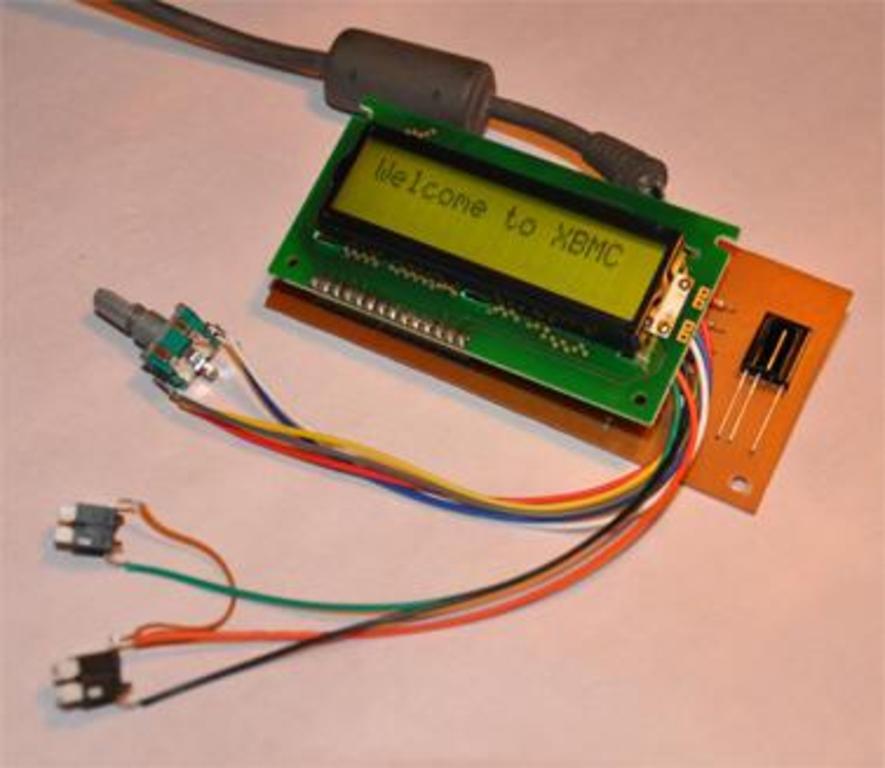

XBMC is a cross platform Media Center Application. This project provides a remote control interface, LCD base player information panel and rotary encoder base controller for XBMC. With this given hardware design and software programs, user may be able to control XBMC without using standard input devices such as keyboard and mouse.

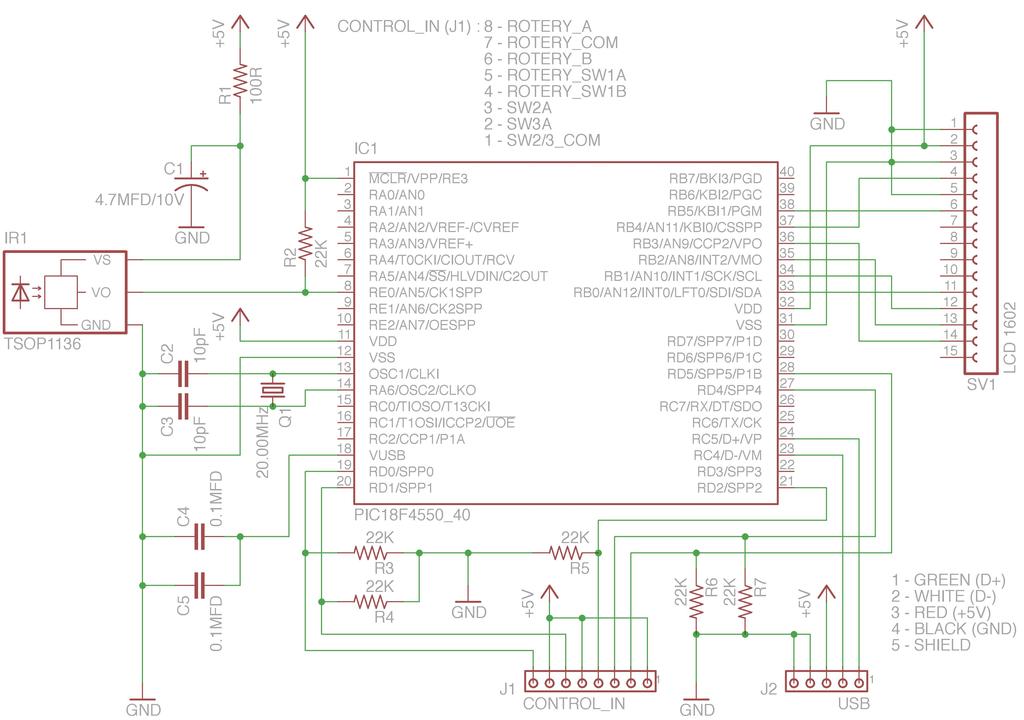

Schematic

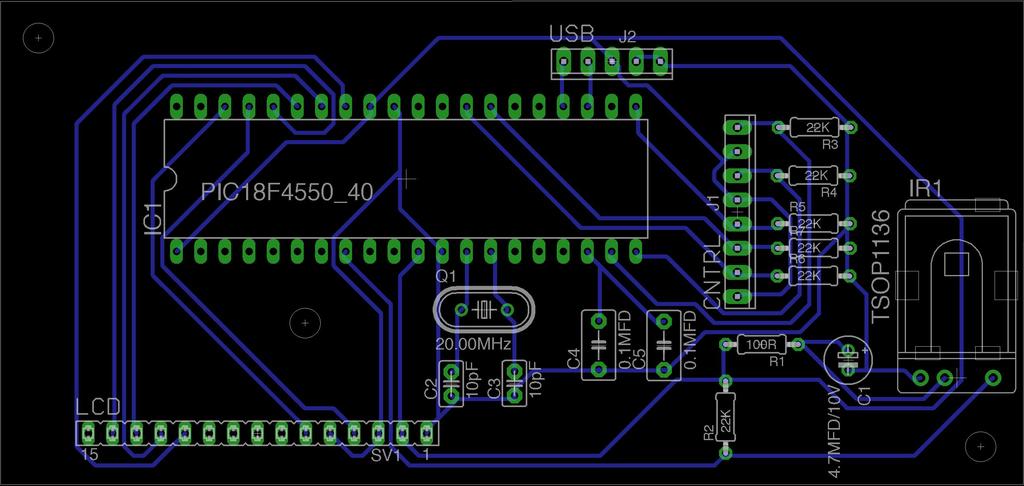

Board

Bill of Materials

Designator Value Description
C1 4.7MFD/10V POLARIZED CAPACITOR, American symbol
C2 10pF CAPACITOR
C3 10pF CAPACITOR
C4 0.1MFD CAPACITOR
C5 0.1MFD CAPACITOR
IC1 PIC18F4550_40 USB Microcontrollers with nanoWatt Technology High-Performance, Enhanced Flash, 28/40/44-Pin,
IR1 TSOP1136 TSOP17..TB1 IR Receiver Modules for Remote Control Systems
J1 AMP connector
J2 AMP connector
Q1 20.00MHz CRYSTAL
R1 100R RESISTOR, American symbol
R2 22K RESISTOR, American symbol
R3 22K RESISTOR, American symbol
R4 22K RESISTOR, American symbol
R5 22K RESISTOR, American symbol
R6 22K RESISTOR, American symbol
R7 22K RESISTOR, American symbol
SV1 FEMALE HEADER

[JSON]

Files

This project is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
