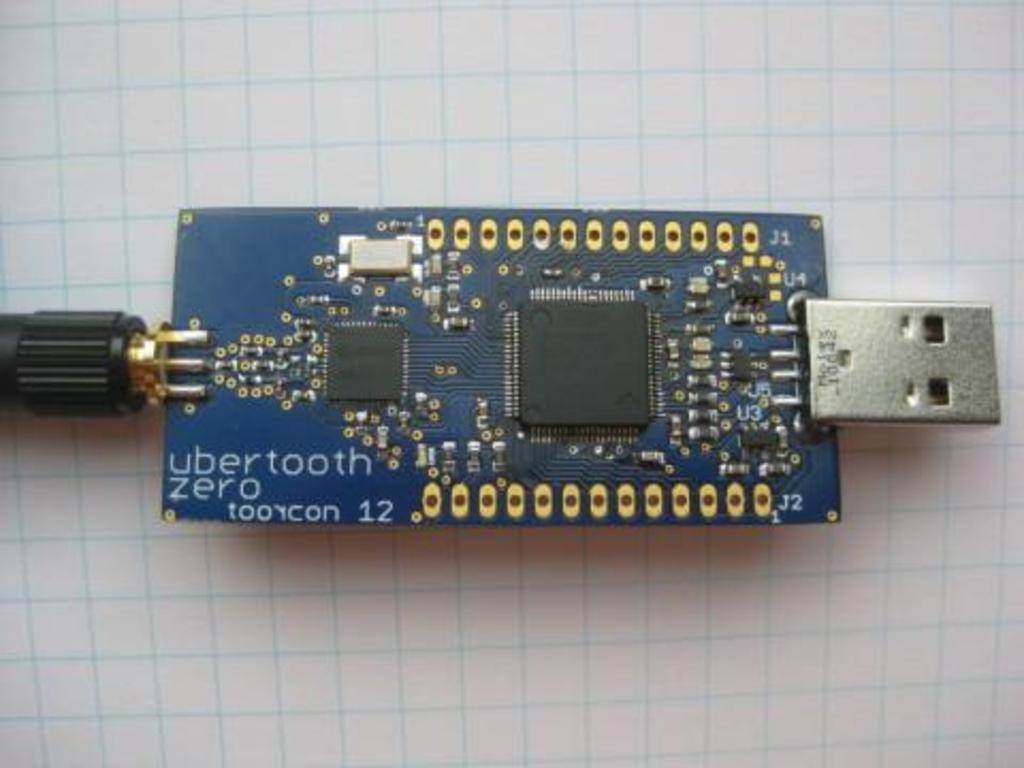

Ubertooth Zero solderpad
Bluetooth monitoring and development platform
ubertooth.sourceforge.net/hardware/zero/Description
Commercial Bluetooth monitoring equipment starts at about $10,000. Project Ubertooth is an affordable platform that can be used for Bluetooth monitoring and for the development of new Bluetooth and wireless technologies.
Low-cost off-the-shelf Wi-Fi adapters have supported monitor mode for years, and the technique has found diverse uses in security research, troubleshooting, product development, intrusion detection, and more. Unfortunately, there has never been an equivalent tool for Bluetooth before Ubertooth One, a fully open source platform (both hardware and software).

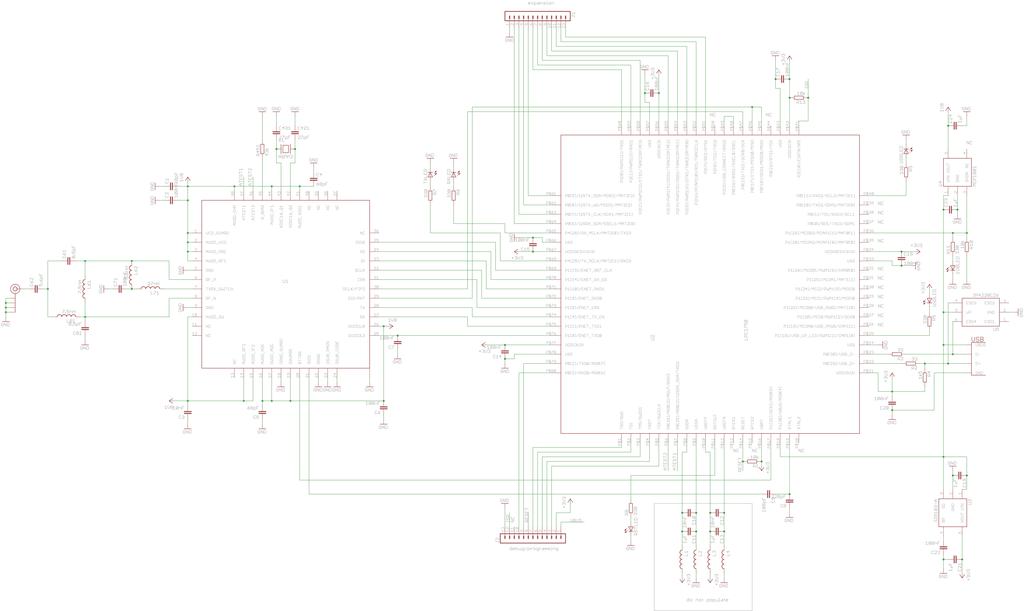

Schematic

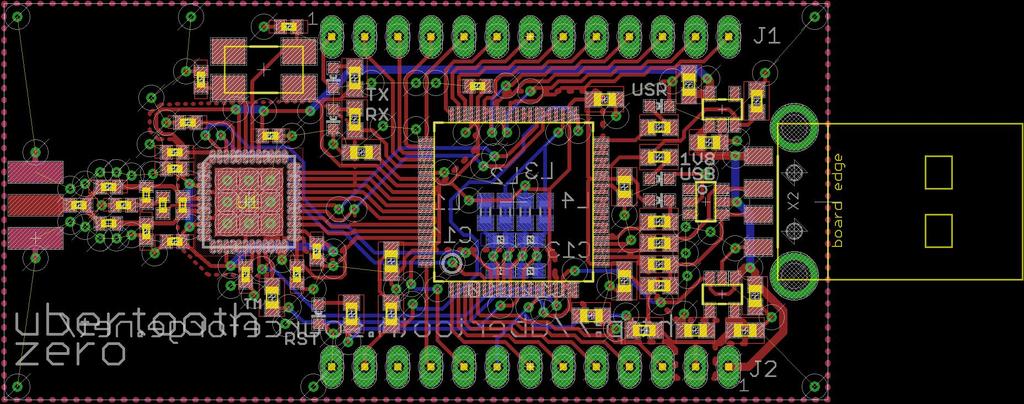

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| 1V8LED | LEDs | |
| C1 | 68pF | CAPACITOR, European symbol |
| C2 | 100nF | CAPACITOR, European symbol |
| C3 | 10nF | CAPACITOR, European symbol |
| C4 | 68pF | CAPACITOR, European symbol |
| C5 | 68pF | CAPACITOR, European symbol |
| C6 | 100nF | CAPACITOR, European symbol |
| C7 | 100nF | CAPACITOR, European symbol |
| C8 | 220pF | CAPACITOR, European symbol |
| C9 | 100pF | CAPACITOR, European symbol |
| C10 | 10nF | CAPACITOR, European symbol |
| C11 | 1µF | CAPACITOR, European symbol |
| C12 | 10nF | CAPACITOR, European symbol |
| C13 | 1µF | CAPACITOR, European symbol |
| C14 | 100nF | CAPACITOR, European symbol |
| C15 | 100nF | CAPACITOR, European symbol |
| C16 | 100nF | CAPACITOR, European symbol |
| C17 | 100nF | CAPACITOR, European symbol |
| C18 | 100nF | CAPACITOR, European symbol |
| C19 | 1µF | CAPACITOR, European symbol |
| C20 | 100nF | CAPACITOR, European symbol |
| C21 | 1µF | CAPACITOR, European symbol |
| C22 | 100nF | CAPACITOR, European symbol |
| C23 | 1µF | CAPACITOR, European symbol |
| C24 | 1µF | CAPACITOR, European symbol |
| C61 | 0.5pF | CAPACITOR, European symbol |
| C62 | 5.6pF | CAPACITOR, European symbol |
| C71 | 100nF | CAPACITOR, European symbol |
| C81 | 0.5pF | CAPACITOR, European symbol |
| C421 | 27pF | CAPACITOR, European symbol |
| C431 | 27pF | CAPACITOR, European symbol |
| J1 | PIN HEADER | |
| J2 | PIN HEADER | |
| J3 | SMA_EDGE | SMA Antenna Connector |
| L1 | INDUCTOR, American symbol | |
| L2 | INDUCTOR, American symbol | |
| L3 | INDUCTOR, American symbol | |
| L4 | INDUCTOR, American symbol | |
| L61 | 7.5nH | INDUCTOR, American symbol |
| L62 | 5.6nH | INDUCTOR, American symbol |
| L71 | 27nH | INDUCTOR, American symbol |
| L81 | 7.5nH | INDUCTOR, American symbol |
| R1 | 10k | RESISTOR, European symbol |
| R2 | 33 | RESISTOR, European symbol |
| R3 | 33 | RESISTOR, European symbol |
| R4 | 1k5 | RESISTOR, European symbol |
| R5 | 330 | RESISTOR, European symbol |
| R6 | 330 | RESISTOR, European symbol |
| R7 | 330 | RESISTOR, European symbol |
| R8 | 330 | RESISTOR, European symbol |
| R9 | 330 | RESISTOR, European symbol |
| R10 | 10k | RESISTOR, European symbol |
| R11 | 330 | RESISTOR, European symbol |
| R13 | 10k | RESISTOR, European symbol |
| R451 | 43k | RESISTOR, European symbol |
| RSTLED | LEDs | |
| RXLED | LEDs | |
| TXLED | LEDs | |
| U1 | CC2400 | |
| U2 | LPC1758 | NXP LPC1759/58/56/54/52/51 |
| U3 | SI9183-A | Vishay Siliconix Si9183-A LDO Regulator |
| U4 | MCP1801 | Microchip MCP1801 |
| U5 | IP4220CZ6 | IP4220CZ6 |
| USBLED | LEDs | |
| USRLED | LEDs | |
| X1 | ABMM2 | Abracon ABMM2 |
| X2 | 480371000 | Molex 0480371000 |
[JSON]
This project is © Michael Ossmann, and is published under the terms of the GNU General Public License, version 2 licence.
