solderpad's avatar

mbedGC solderpad

Video game console based around the mbed microcontroller.

www.mbedgc.com

Recent activity:

  • 9600 updated13 years ago
  • psd schematic processed13 years ago
  • psd board processed13 years ago
  • psd board received13 years ago
  • psd schematic received13 years ago
  • psd photo received13 years ago

Tagged with

Description

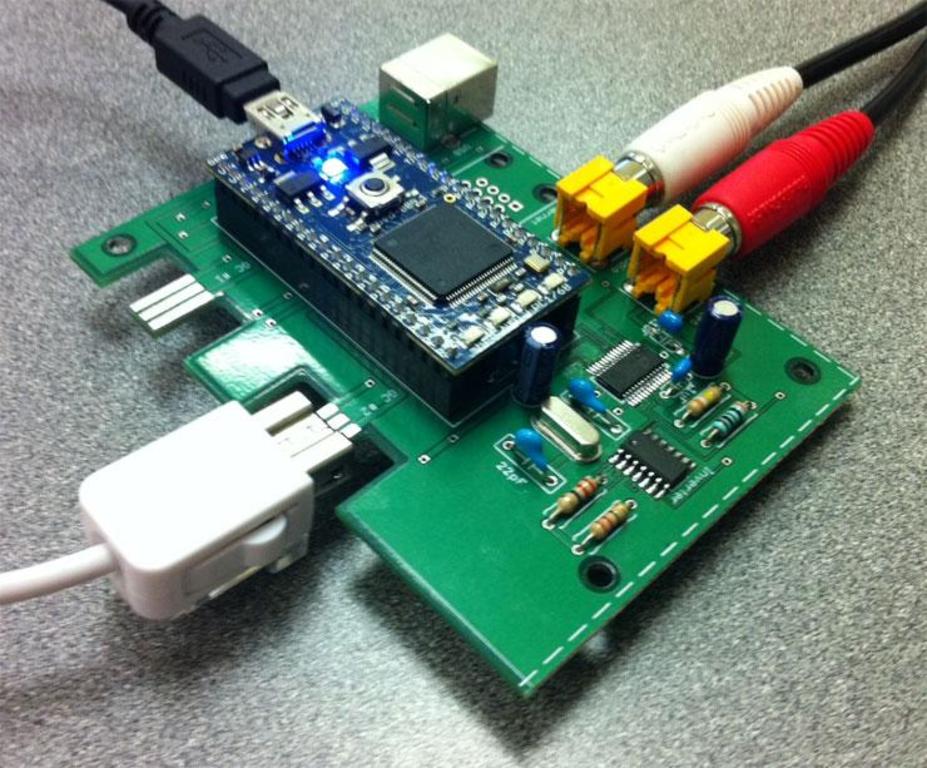

The mbedGC is an open source video game console based around the mbed microcontroller. It is intended for hobbyists, students and engineers interested in developing video games. The game console was developed as a senior design project by a team of 5 electrical and computer engineering students from Florida International University.

The mbedGC is an expansion board and a framework for the mbed microcontroller. It gives the mbed the ability to produce audio & video on a television screen. The framework is freely available and it allows anyone to create their own video games using the mbedGC.

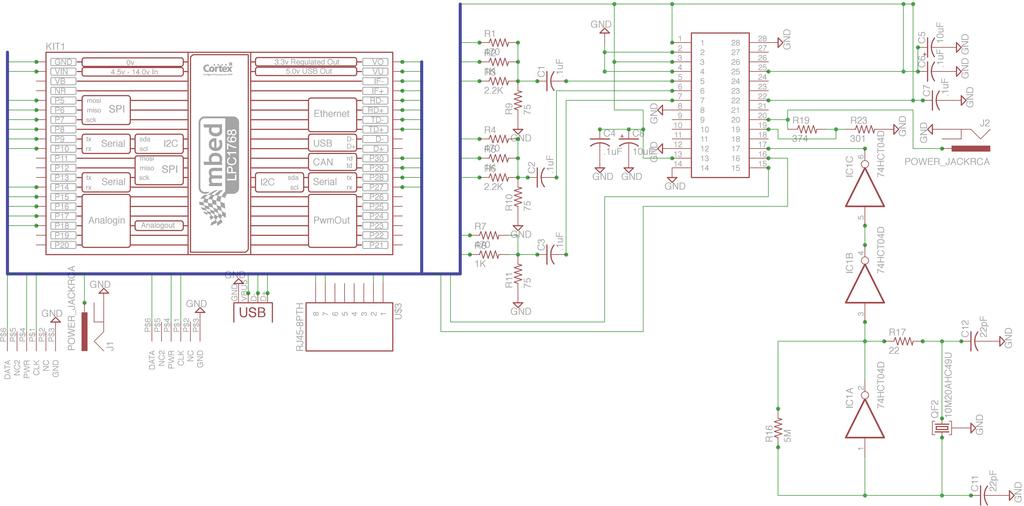

Schematic

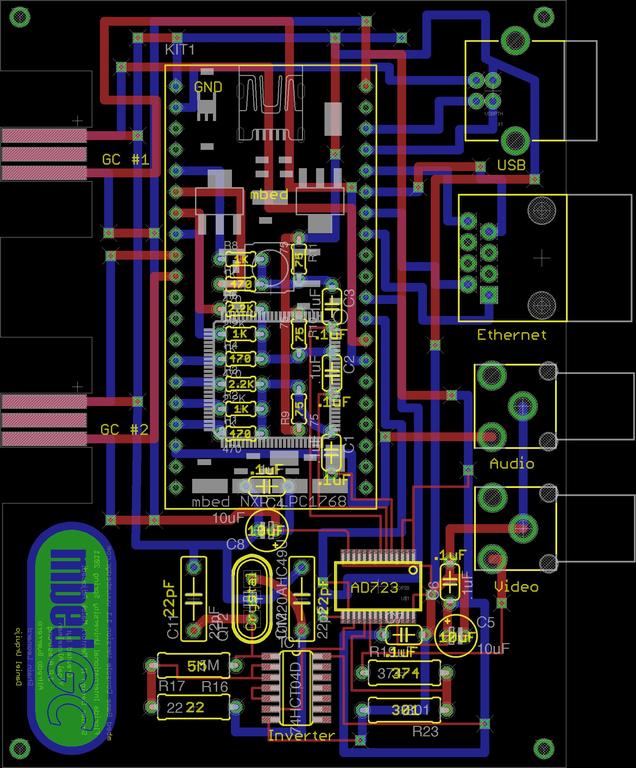

Board

Bill of Materials

Designator Value Description
C1 .1uF CAPACITOR, American symbol
C2 .1uF CAPACITOR, American symbol
C3 .1uF CAPACITOR, American symbol
C4 .1uF CAPACITOR, American symbol
C5 10uF POLARIZED CAPACITOR, American symbol
C6 .1uF CAPACITOR, American symbol
C7 .1uF CAPACITOR, American symbol
C8 10uF POLARIZED CAPACITOR, American symbol
C11 22pF CAPACITOR, American symbol
C12 22pF CAPACITOR, American symbol
IC1 74HCT04D Hex INVERTER
J1 POWER_JACKRCA Power Jack
J2 POWER_JACKRCA Power Jack
KIT1 MBED_NXP_LPC1768 Mbed LPC1768 - ARM CORTEX v2.1
QF2 10M20AHC49U Monolithic Crystal Filters
R1 470 RESISTOR, American symbol
R2 1K RESISTOR, American symbol
R3 2.2K RESISTOR, American symbol
R4 470 RESISTOR, American symbol
R5 1K RESISTOR, American symbol
R6 2.2K RESISTOR, American symbol
R7 470 RESISTOR, American symbol
R8 1K RESISTOR, American symbol
R9 75 RESISTOR, American symbol
R10 75 RESISTOR, American symbol
R11 75 RESISTOR, American symbol
R16 5M RESISTOR, American symbol
R17 22 RESISTOR, American symbol
R19 374 RESISTOR, American symbol
R23 301 RESISTOR, American symbol
U$1 SSOP28
U$2 WIIMOTE
U$3 RJ45-8PTH RJ45 Jack
U$4 WIIMOTE
X1 USBPTH USB Connectors

[JSON]

Files

This project is © mbedGC, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
