LilyPad Arduino solderpad
a microcontroller board designed for wearables and e-textiles
arduino.cc/en/Main/ArduinoBoardLilyPadDescription

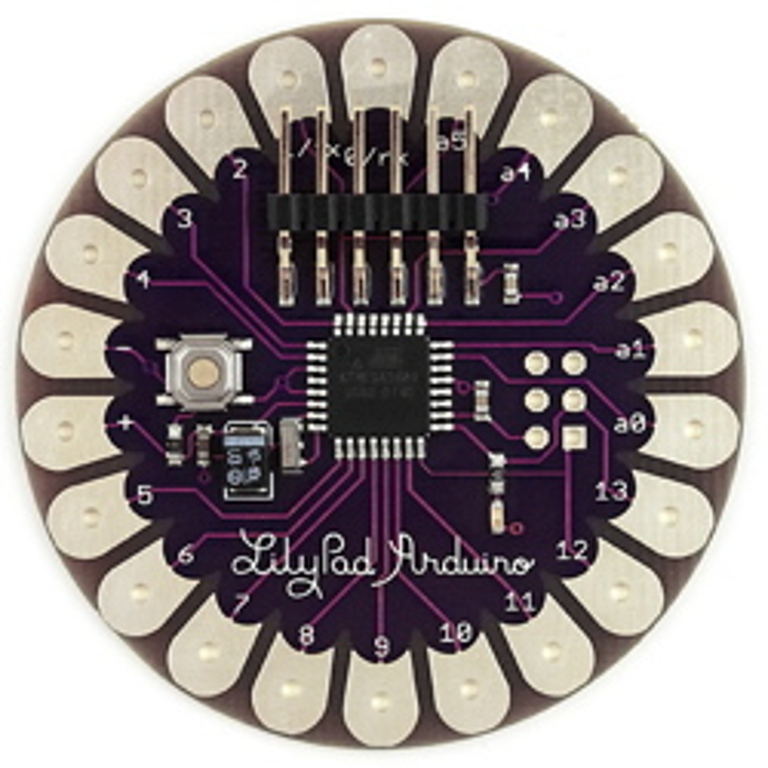

The LilyPad Arduino is a microcontroller board designed for wearables and e-textiles. It can be sewn to fabric and similarly mounted power supplies, sensors and actuators with conductive thread. The board is based on the ATmega168V (the low-power version of the ATmega168) or the ATmega328V. The LilyPad Arduino was designed and developed by Leah Buechley and SparkFun Electronics.

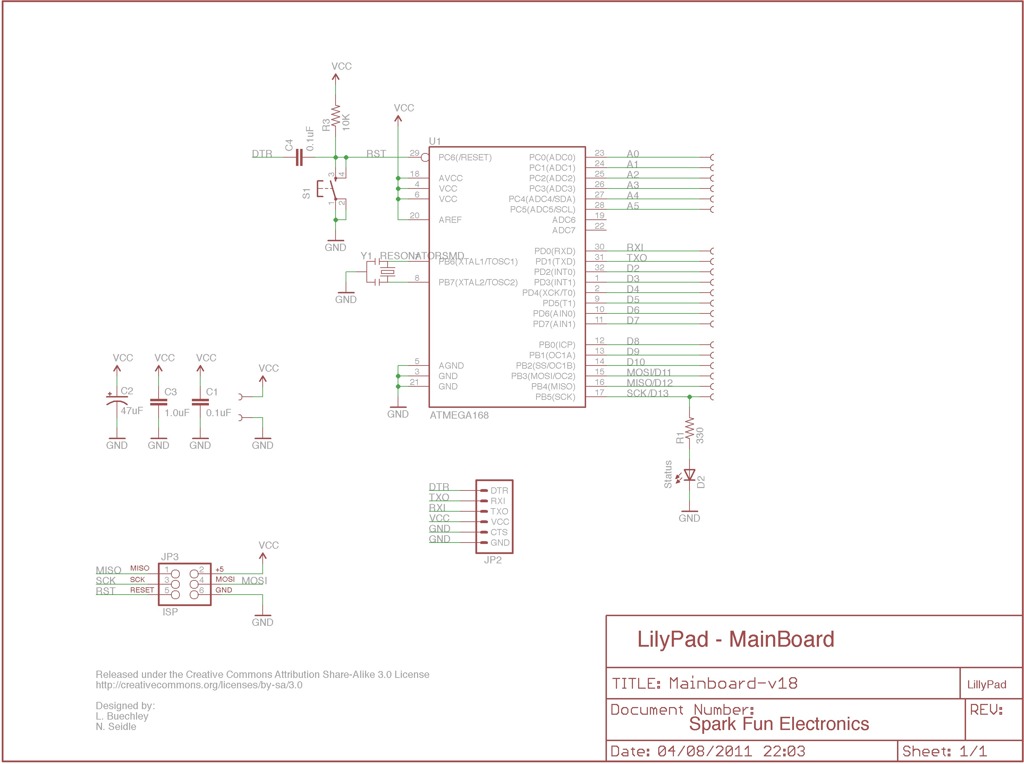

Schematic

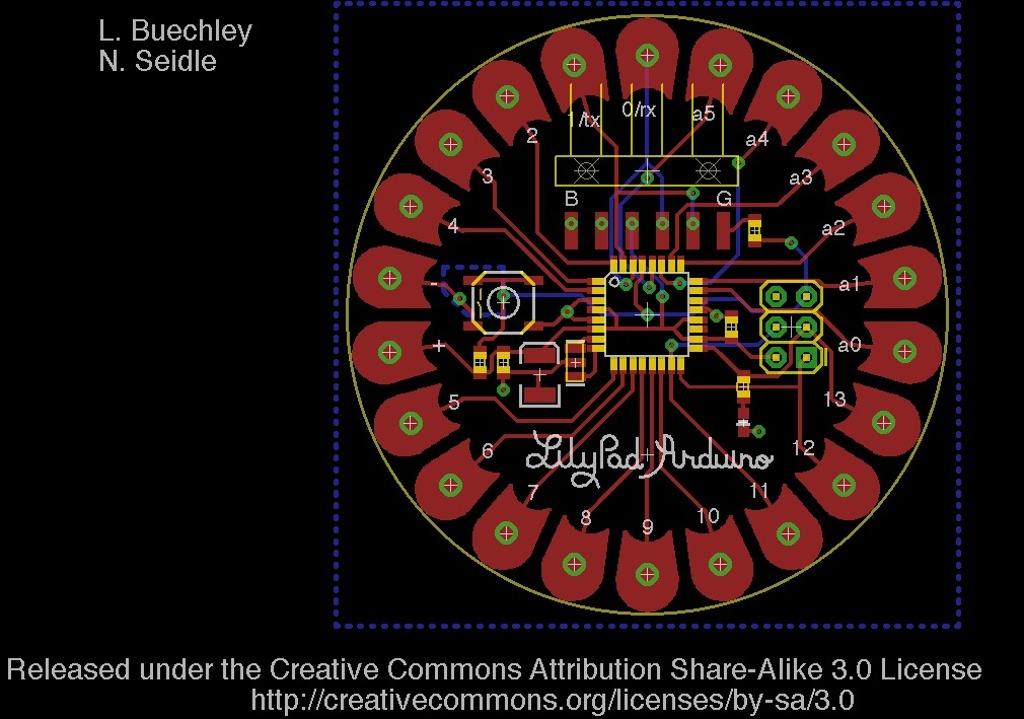

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| C1 | 0.1uF | Capacitor |
| C2 | 47uF | Capacitor Polarized |
| C3 | 1.0uF | Capacitor |
| C4 | 0.1uF | Capacitor |
| D2 | Status | LEDs |
| GND | SEWTAP1 | |
| JP2 | ||
| JP3 | ISP | AVR ISP 6 Pin |
| R1 | 330 | Resistor |
| R3 | 10K | Resistor |
| S1 | Momentary Switch | |
| U$1 | LOGO-LPLPA | |
| U$4 | SEWTAP1 | |
| U$30 | SEWTAP1 | |
| U$31 | SEWTAP1 | |
| U$32 | SEWTAP1 | |
| U$33 | SEWTAP1 | |
| U$34 | SEWTAP1 | |
| U$35 | SEWTAP1 | |
| U$36 | SEWTAP1 | |
| U$37 | SEWTAP1 | |
| U$38 | SEWTAP1 | |
| U$39 | SEWTAP1 | |
| U$40 | SEWTAP1 | |
| U$41 | SEWTAP1 | |
| U$42 | SEWTAP1 | |
| U$43 | SEWTAP1 | |
| U$44 | SEWTAP1 | |
| U$45 | SEWTAP1 | |
| U$46 | SEWTAP1 | |
| U$47 | SEWTAP1 | |
| U$48 | SEWTAP1 | |
| U$51 | SEWTAP1 | |
| U1 | ATMEGA168 | |
| Y1 | RESONATORSMD | Resonator |
[JSON]
This project is © Leah Buechley & SparkFun Electronics, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
