CERN FMC ADC 100M 14b 4cha solderpad
4 channel 100MSPS 14bit ADC card in FMC format
www.ohwr.org/projects/fmc-adc-100m14b4chaDescription

The FMC ADC 100M 14b 4cha is a 4 channel 100MSPS 14bit ADC card in FMC (FPGA Mezzanine Card) format using an LPC connector. The gain can be set by software in three steps: +/-50mV, +/-0.5V, +/-5V. An advanced offset circuit is used in the front-end design of the ADC board, and allows a voltage shift in the range of +/- 5V that is independent on the chosen gain range.
Schematic

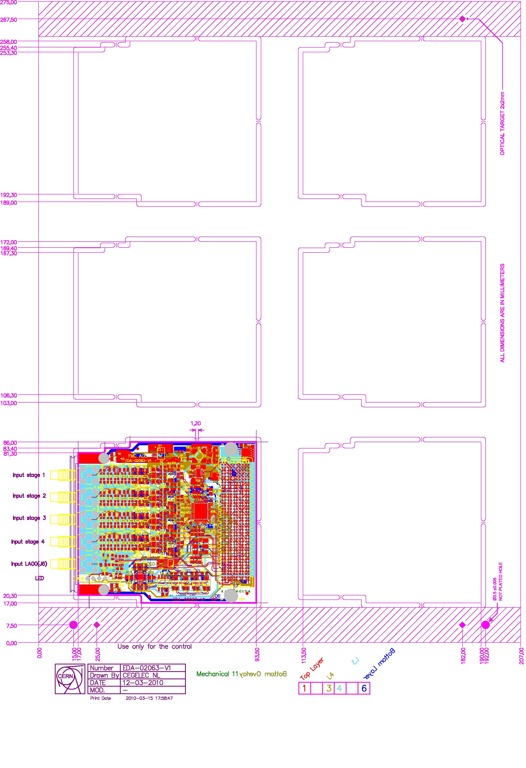

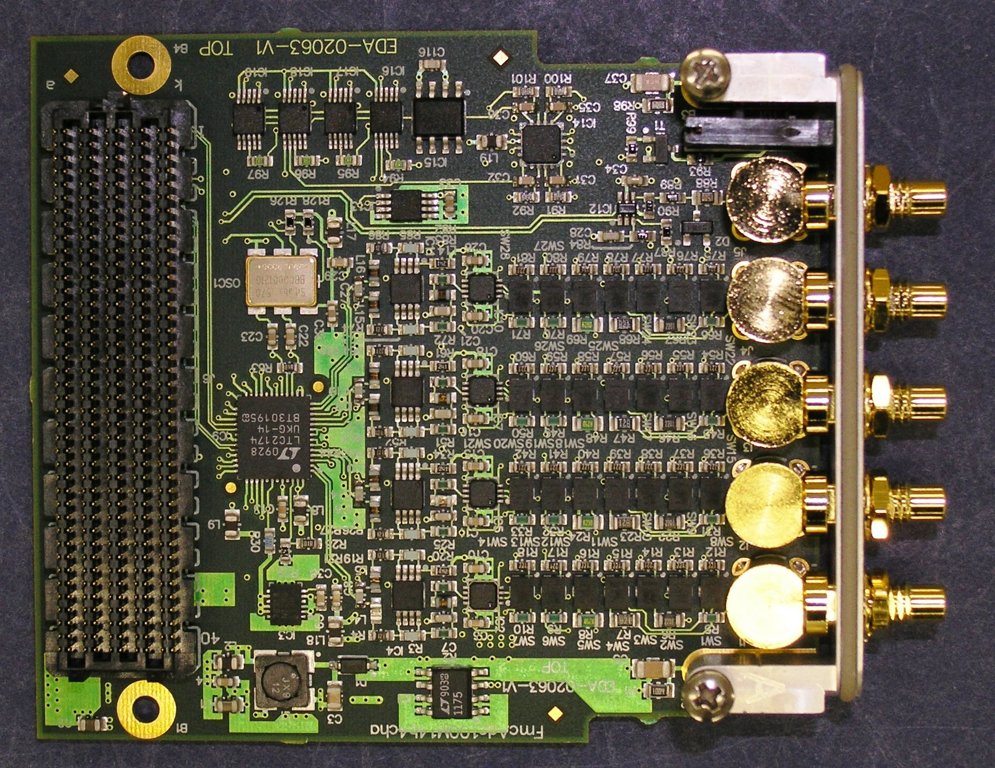

Board

Bill of Materials
This project does not have a bill of materials.
This project is © CERN, and is published under the terms of the CERN Open Hardware Licence, version 1.1 licence.
