Bug Labs BUGlocate solderpad

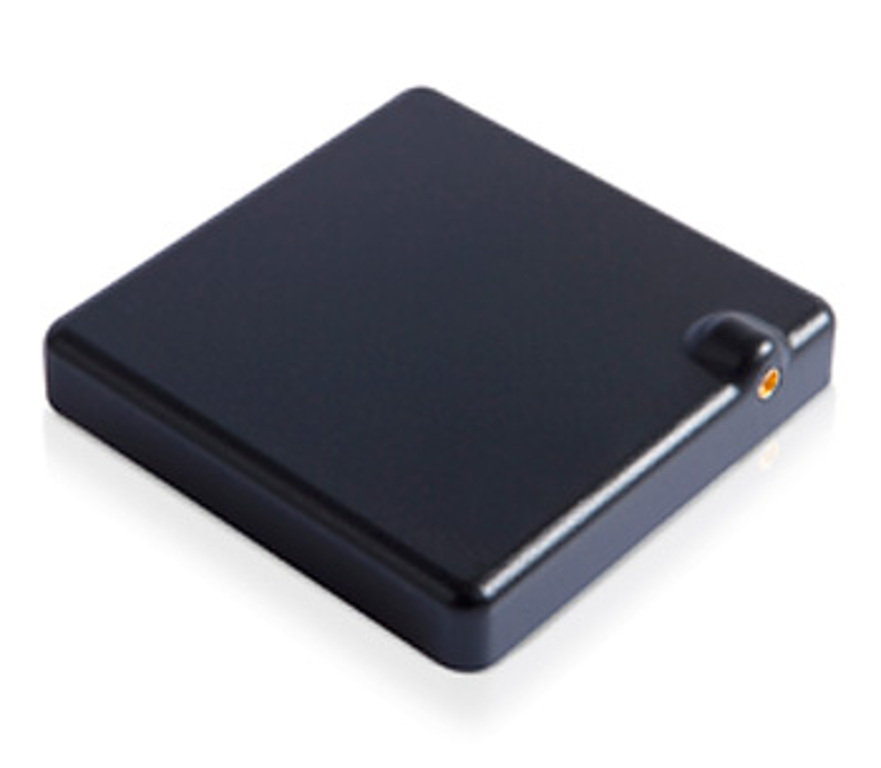

BUGlocate is a GPS receiver for BUG

wiki.buglabs.net/index.php/Hardware:BUGlocate_Module

Recent activity:

  • 9600 updated — 13 years ago
  • psd pushed — 13 years ago
  • 9600 pushed — 13 years ago

Tagged with

Description

BUGlocate is a GPS receiver for BUG, great for tracking or mapping. The module includes both an internal passive antenna and a connector for an external active antenna.

  • SiRF chipset based implementation
  • Support for active (external) and passive (internal) antenna configurations capable of tracking signals as low as -159 dBm (with active antenna)
  • Selectable NMEA-0183/SiRF: latitude, longitude, elevation, velocity, heading, time, tracking status

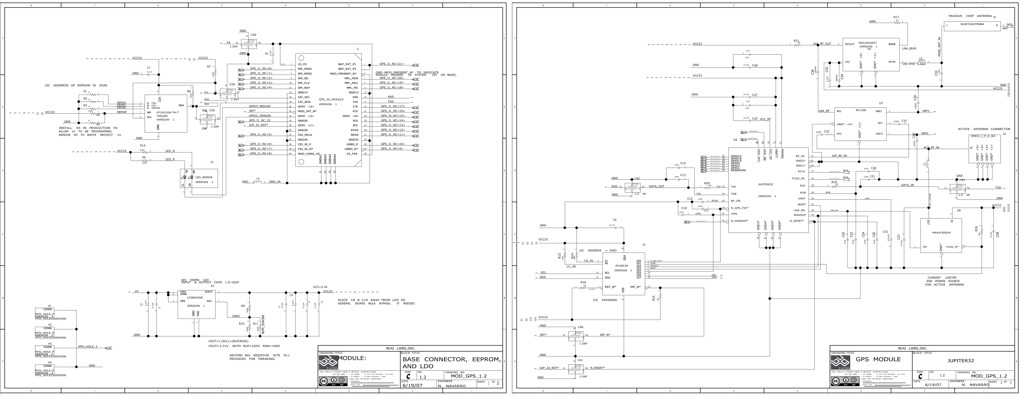

Schematic

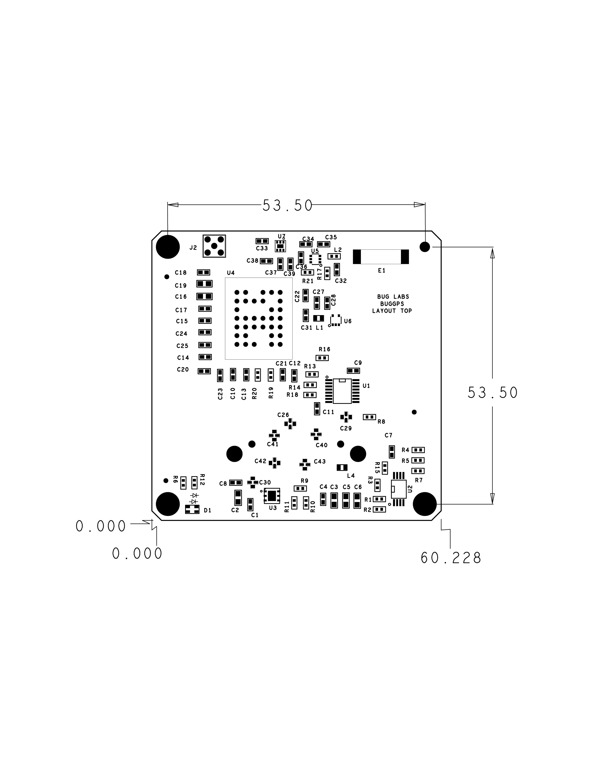

Board

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Bug Labs Inc., and is published under the terms of the GNU General Public License, version 3 licence.
