Open Motion Controller folknology

Open Source Motion Controller, designed to drive up to 6 steppers and 6 PWMs

Open Motion Controller project

Recent activity:

Tagged with

Description

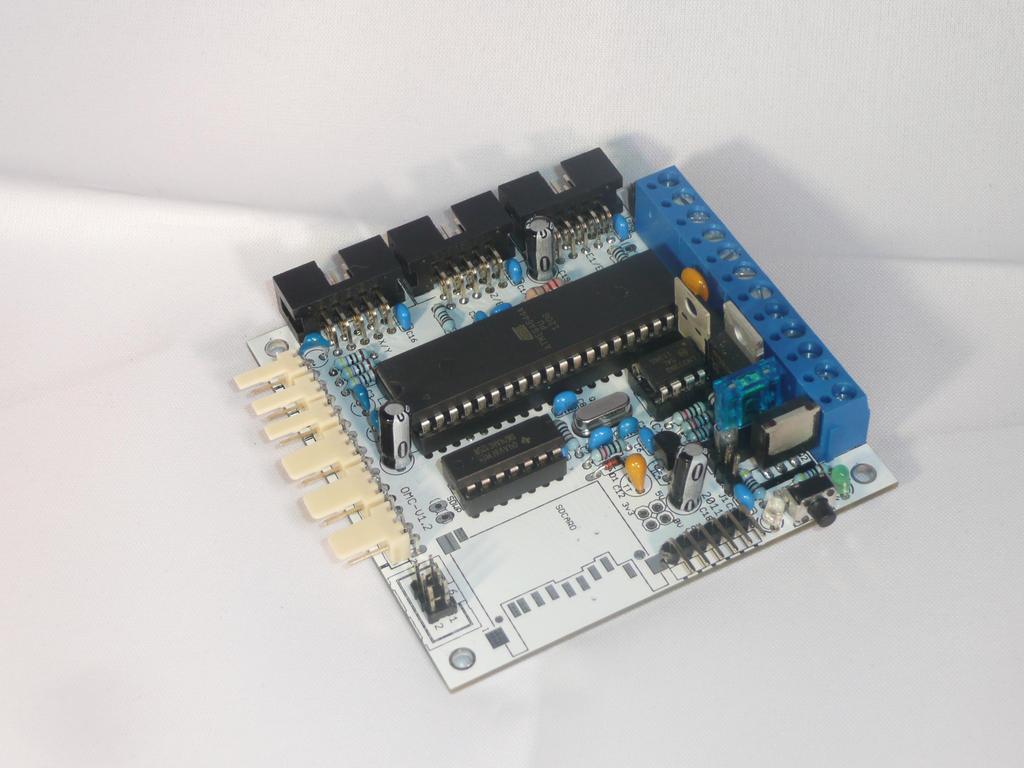

Initially designed as part of a modular Through hole RepRap electronics set. This board is the controller that operates up to 3 Dual Stepper and PWM Modules. The hardware is based around an Atmega644 MCU running at 20Mhz. This in conjunction with the Dual Stepper modules can be used as the electronics for an project that requires open source stepper based motion control. That includes 3D printers, CNCs, milling machines, automated plasma cutters, laser cutters etc..

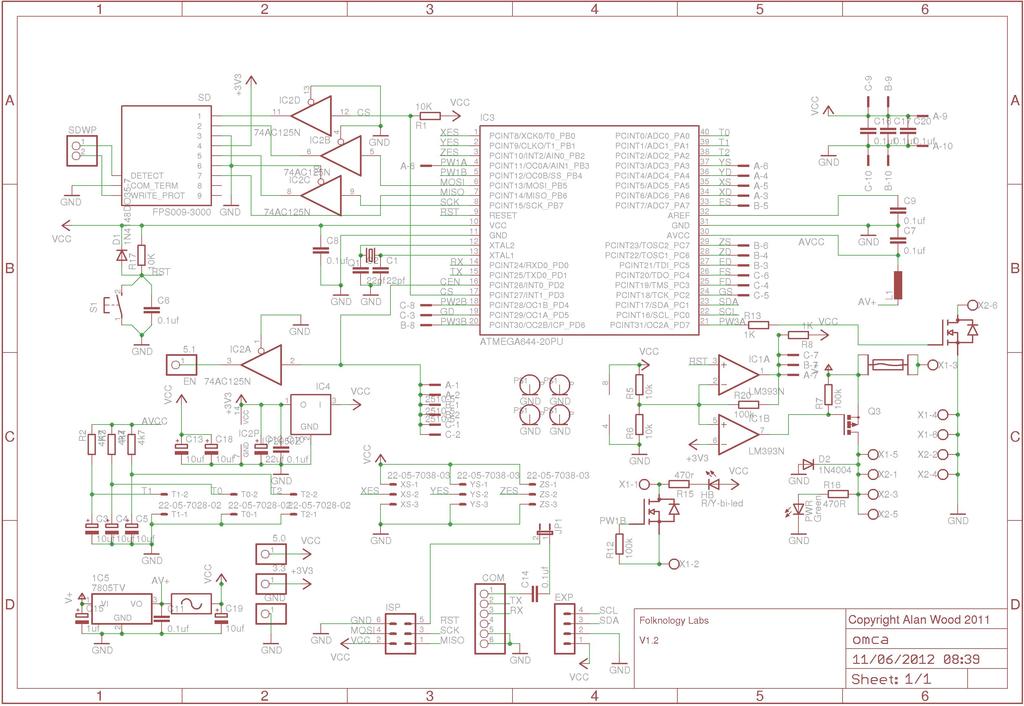

Schematic

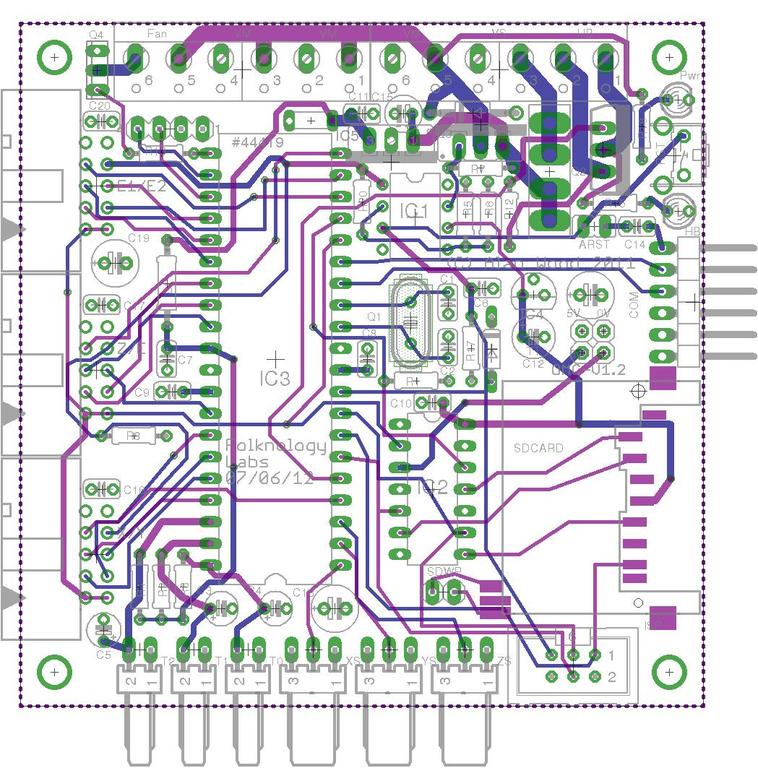

Board

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Alan Wood, and is published under the terms of the CERN Open Hardware Licence, version 1.1 licence.
