StickIt-Vga xesscorp

A 16,384-color VGA interface.

StickIt! VGA Interface

Recent activity:

  • xesscorp photo received13 years ago
  • xesscorp pushed to13 years ago
  • xesscorp board processed13 years ago
  • xesscorp schematic processed13 years ago
  • xesscorp board received13 years ago
  • xesscorp schematic received13 years ago

Tagged with

Description

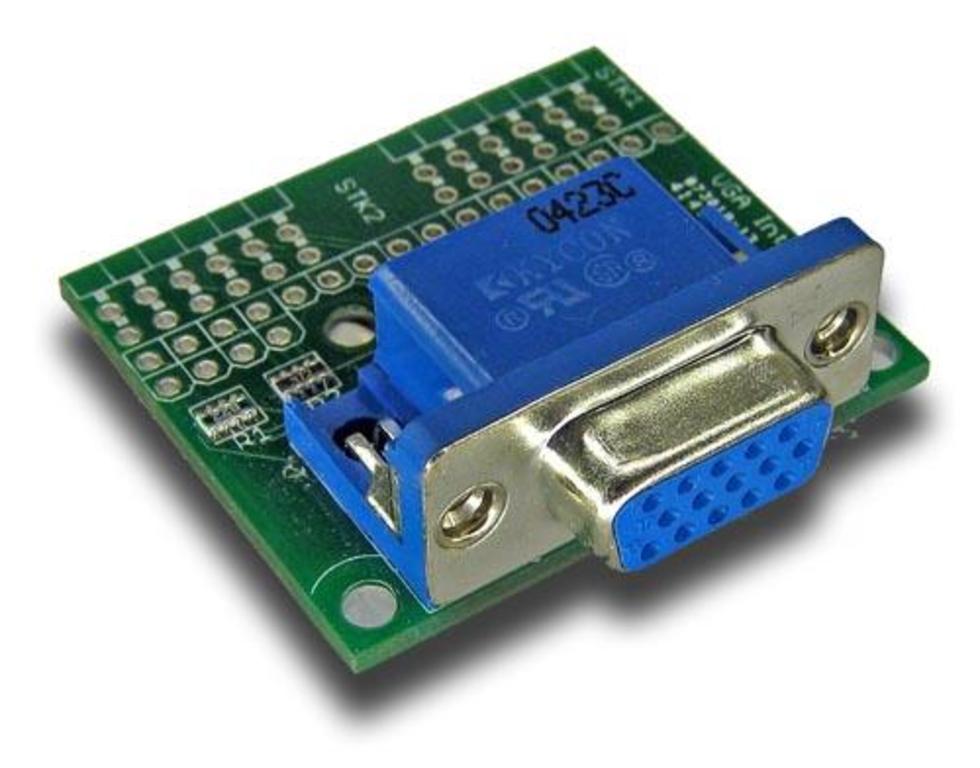

A VGA monitor interface module that can be attached to the StickIt! motherboard or to any system with a PMOD or Wing socket. This module can display 64-color graphics using a single 8-bit socket, and supports up to 16,384 colors if two sockets are used.

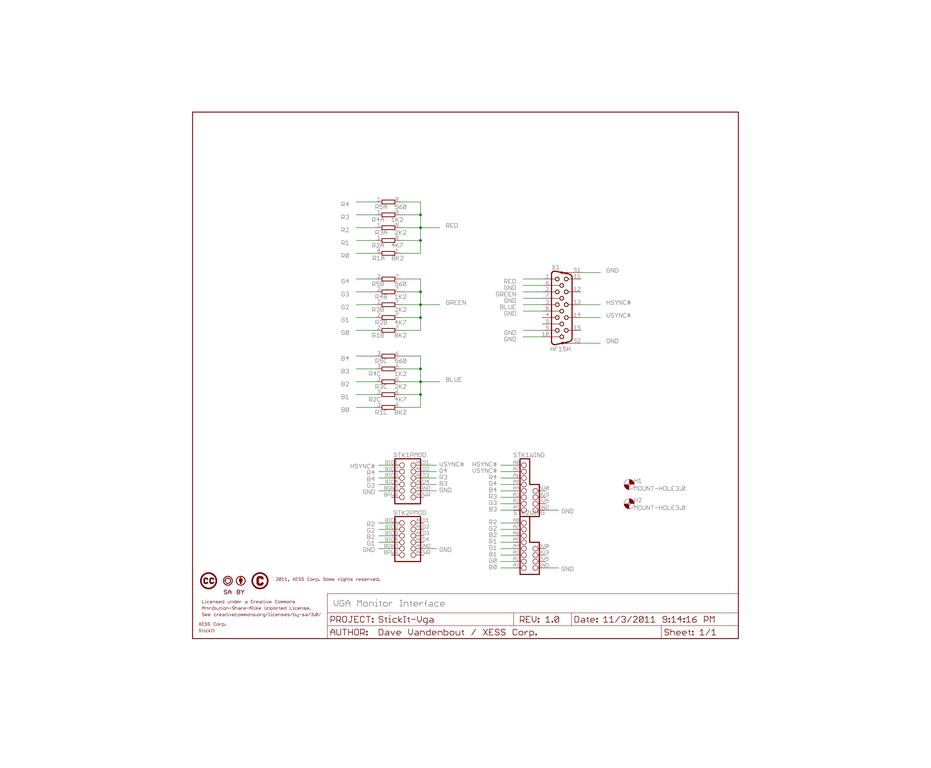

Schematic

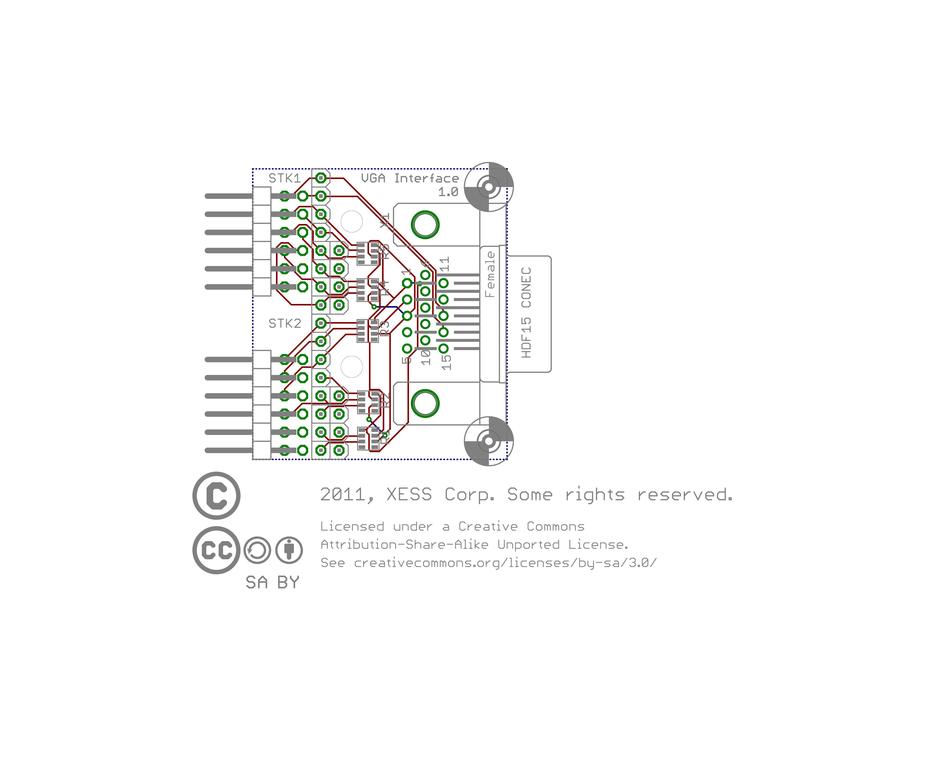

Board

Bill of Materials

Designator Value Description
H1 MOUNT-HOLE3.0 MOUNTING HOLE with drill center marker
H2 MOUNT-HOLE3.0 MOUNTING HOLE with drill center marker
R1 742C083822JPTR Resistor 4-pack
R2 742C083472JPTR Resistor 4-pack
R3 742C083222JPTR Resistor 4-pack
R4 742C083122JPTR Resistor 4-pack
R5 742C083561JPTR Resistor 4-pack
STK1 STICKIT-HEADER1 StickIt Header
STK2 STICKIT-HEADER2 StickIt Header
U$1 CC_CC
U$2 CC_SA
U$3 CC_BY
U$4 CC_COPYRIGHT
U$5 LOGO-STICKIT1150X350
U$6 LOGO-XESS900X250
X1 K66XHT-E15S-N High-density, 15-pin SUB-D connector.

[JSON]

Files

This project is © Dave Vandenbout / XESS Corp., and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
