StickIt-PS2 xesscorp

Dual PS/2 interface

StickIt! PS/2

Recent activity:

Tagged with

Description

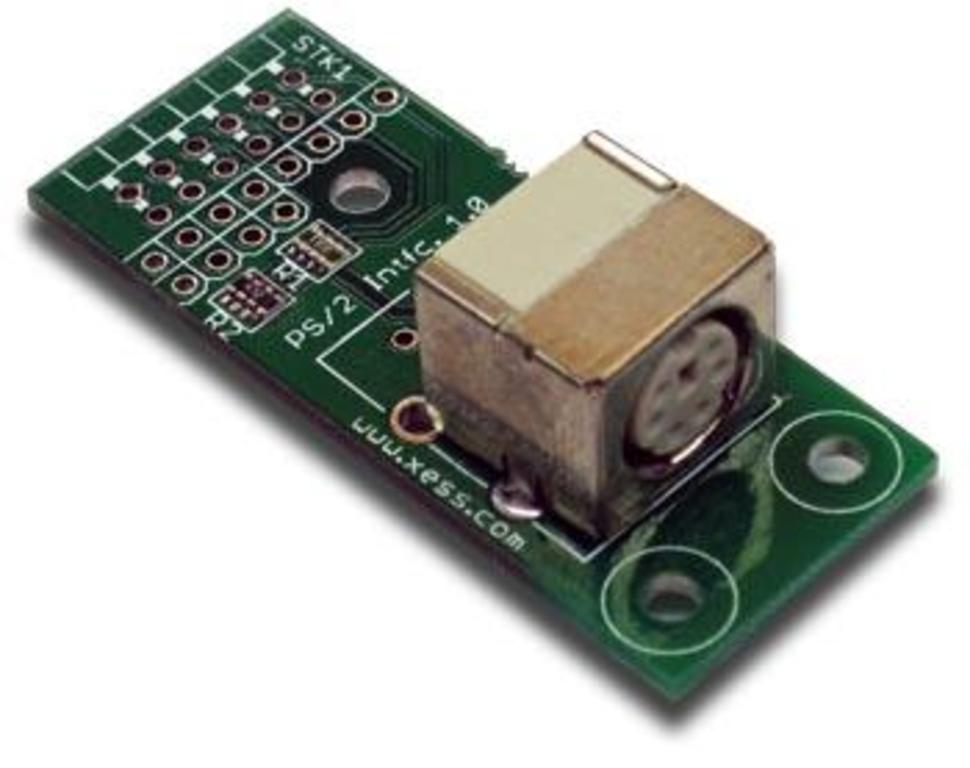

A PS/2 interface module that can be attached to the StickIt! motherboard or to any system with a PMOD or Wing socket. One or two PS/2 keyboards or mice can be scanned using only two or four I/O pins.

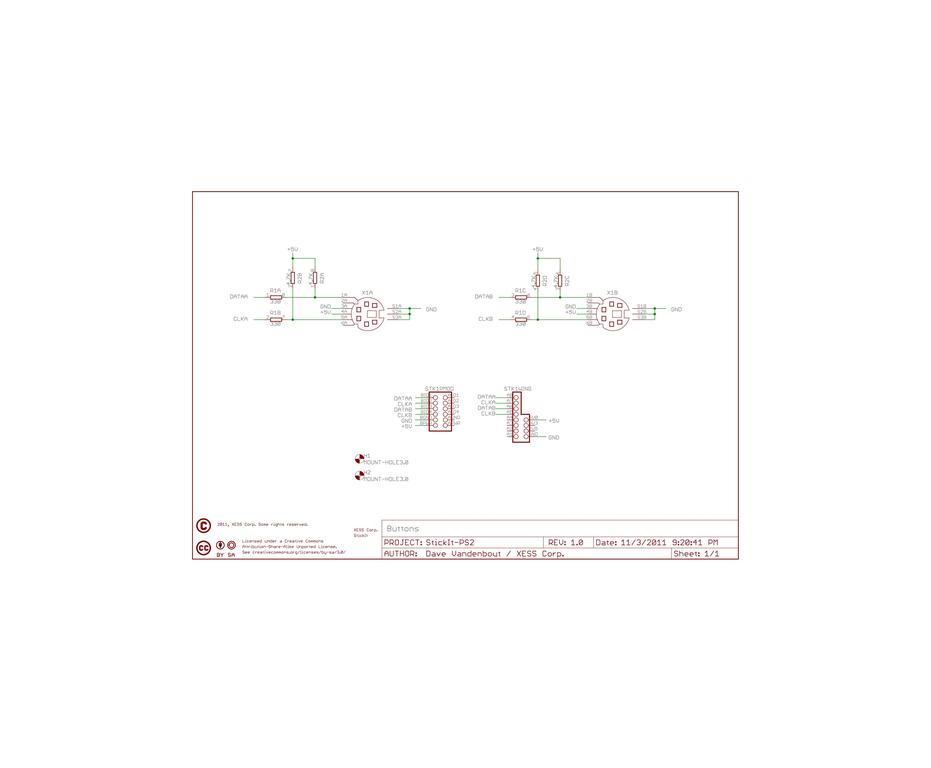

Schematic

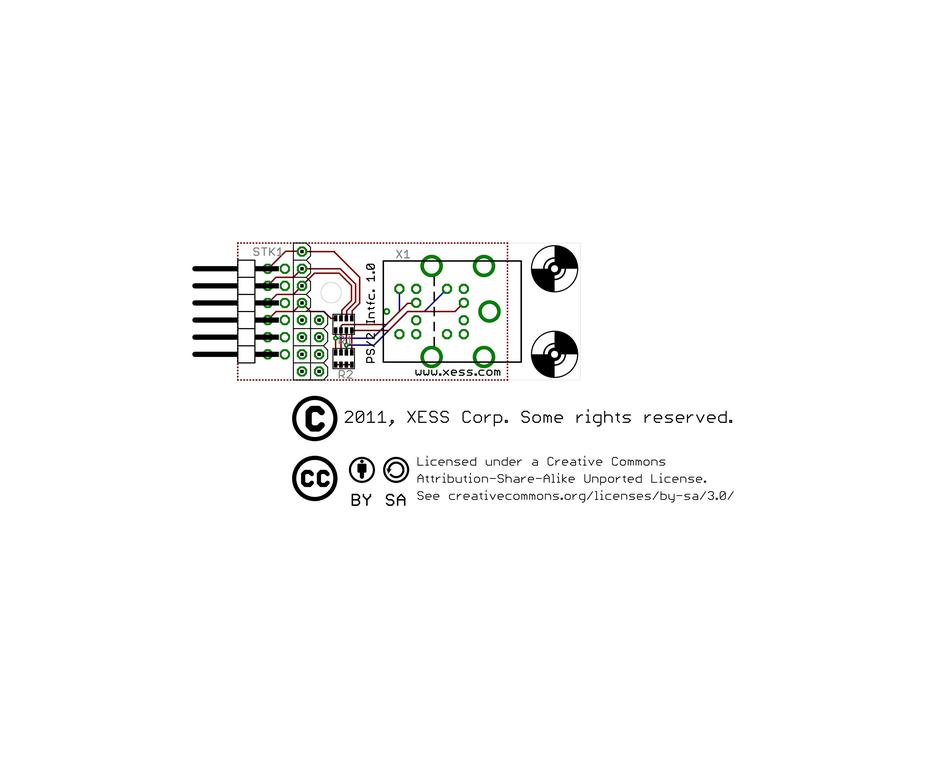

Board

Bill of Materials

Designator Value Description
H1 MOUNT-HOLE3.0 MOUNTING HOLE with drill center marker
H2 MOUNT-HOLE3.0 MOUNTING HOLE with drill center marker
R1 742C083331JPTR Resistor 4-pack
R2 742C083472JPTR Resistor 4-pack
STK1 STICKIT-HEADER StickIt Header
U$1 LOGO-STICKIT700X200
U$2 CC_CC
U$3 CC_BY
U$4 CC_SA
U$5 CC_COPYRIGHT
U$6 LOGO-XESS
X1 786580-1 Dual 6-Pin Mini-DIN Female Socket

[JSON]

Files

This project is © Dave Vandenbout / XESS Corp., and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
