Description

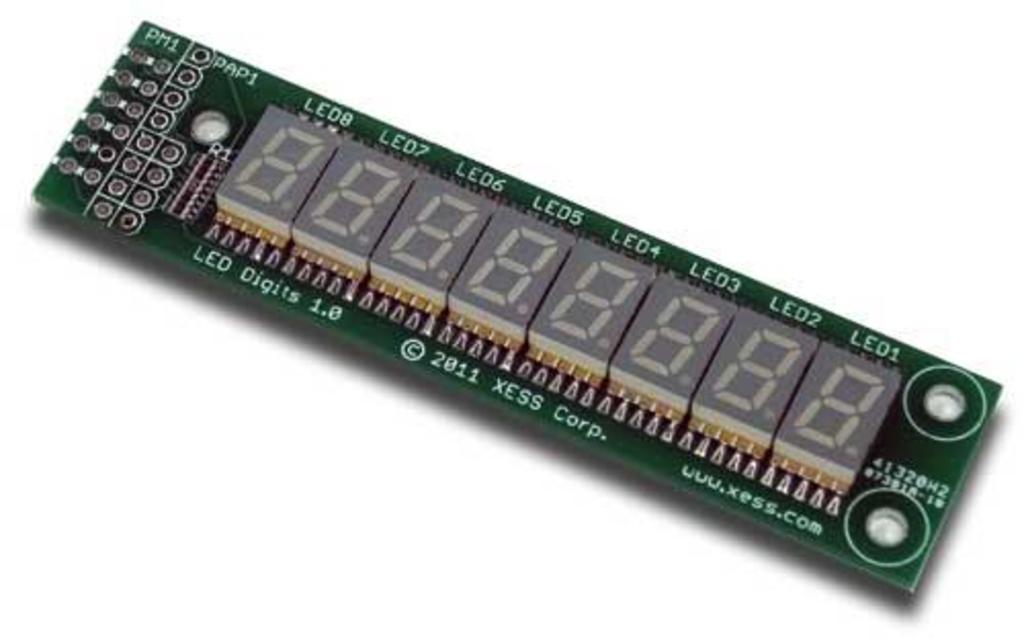

An eight digit display module that can be attached to the StickIt! motherboard or to any system with a PMOD or Wing socket. All 56 individual LED segments are controllable with only eight I/O pins through the use of charlieplexing.

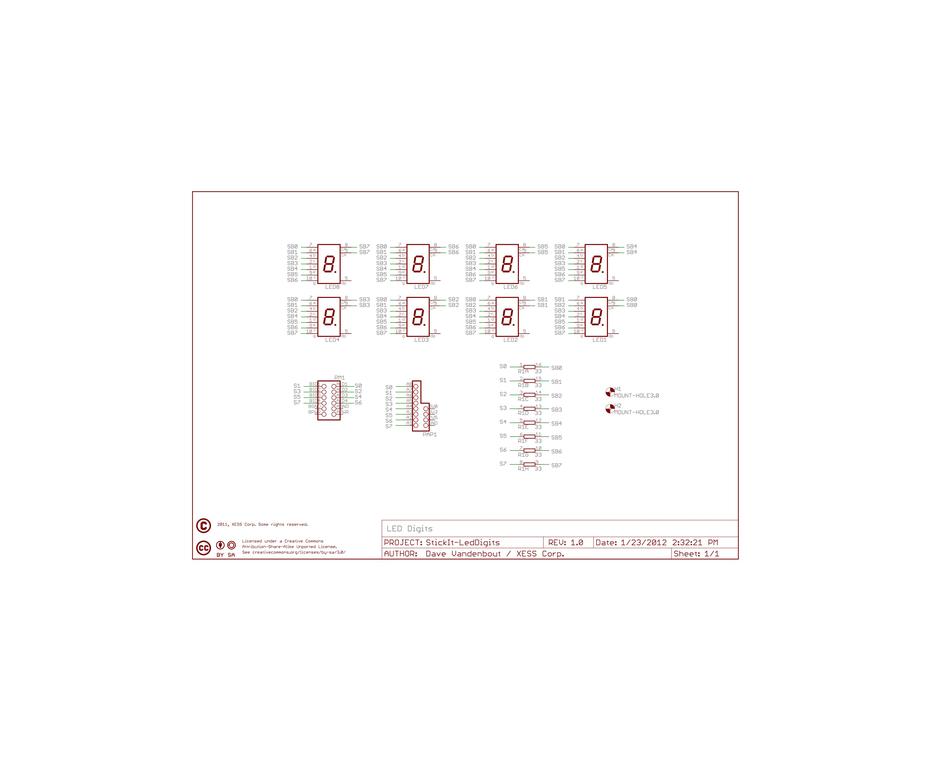

Schematic

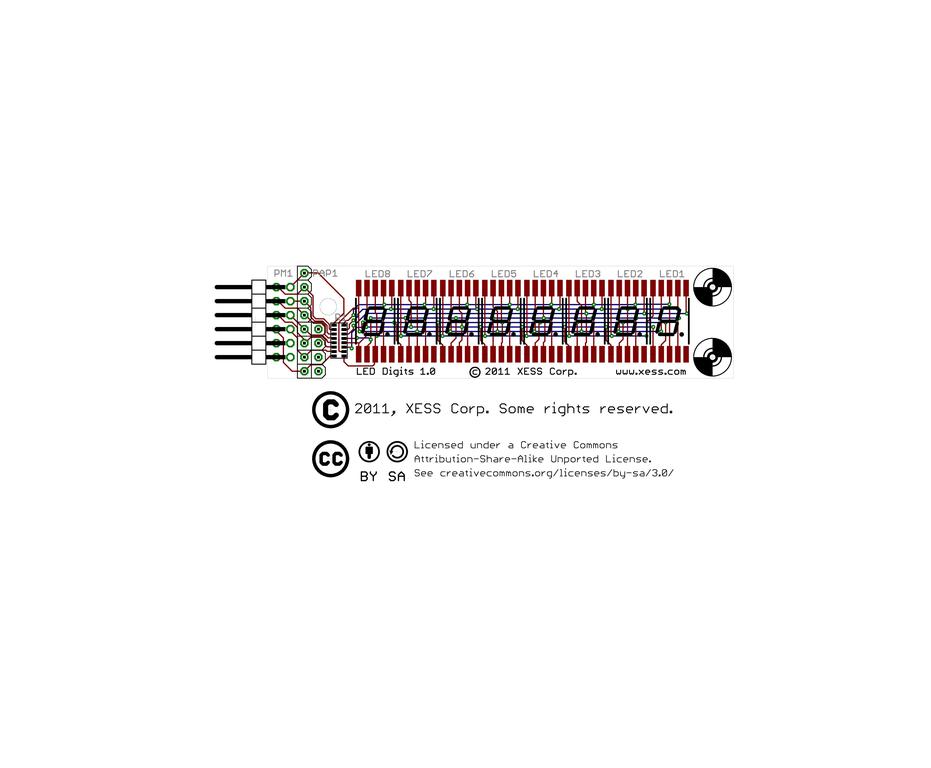

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| H1 | MOUNT-HOLE3.0 | MOUNTING HOLE with drill center marker |
| H2 | MOUNT-HOLE3.0 | MOUNTING HOLE with drill center marker |
| LED1 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| LED2 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| LED3 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| LED4 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| LED5 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| LED6 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| LED7 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| LED8 | ACSA03-41EWA-F01 | Common-anode 7-segment LED display |
| PAP1 | PIN HEADER | |
| PM1 | PMOD12HEADER | 12-Pin PMOD Socket/Header |
| R1 | 742C163330JPTR | Resistor 8-pack |
| U$2 | CC_CC | |
| U$3 | CC_BY | |
| U$4 | CC_SA | |
| U$5 | CC_COPYRIGHT |
[JSON]
This project is © Dave Vandenbout / XESS Corp., and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
