Description

Introduction

A low cost and low power data logger based on the Jeenode. Essentially this incorporates a realtime clock and a microSD holder to the Jeenode and should be compatible with the plugs. This could be used as part of a sensor network to perform data logging wirelessly for example.

This was originally developed to help with recording space occupancy for part of a Phd project and needed to be able to log for one month and be as cheap as possible.

Features

  • Low cost
  • Low power
  • Compatible with Arduino IDE
  • Realtime clock
  • MicroSD holder for logging

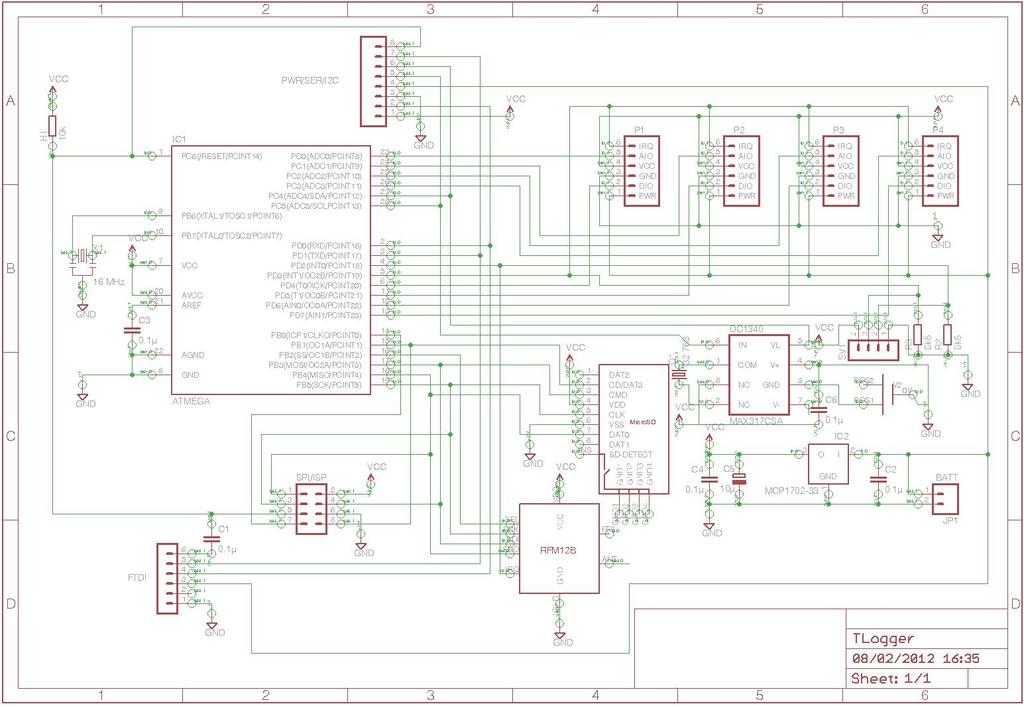

Schematic

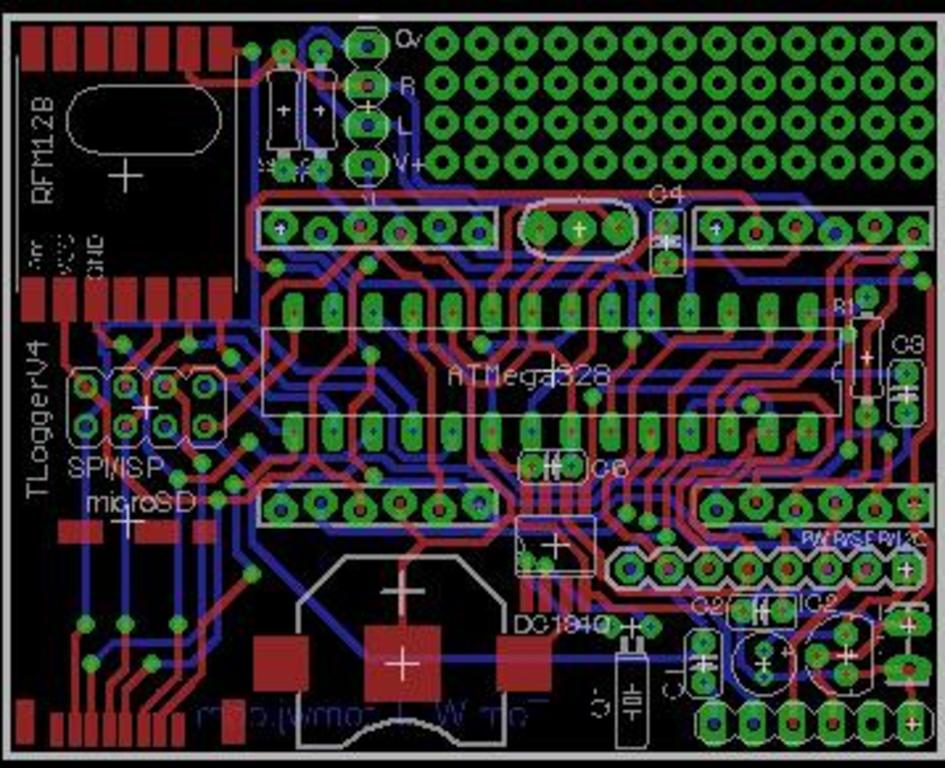

Board

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Thomas William Jennings, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
