PIC18F14K50 USB PTH Dev Board tautic

Add USB to your projects easily with this board.

Recent activity:

  • tautic updated13 years ago
  • tautic bom received13 years ago
  • tautic pushed to13 years ago
  • tautic updated13 years ago
  • tautic schematic processed13 years ago
  • tautic board processed13 years ago

Tagged with

Description

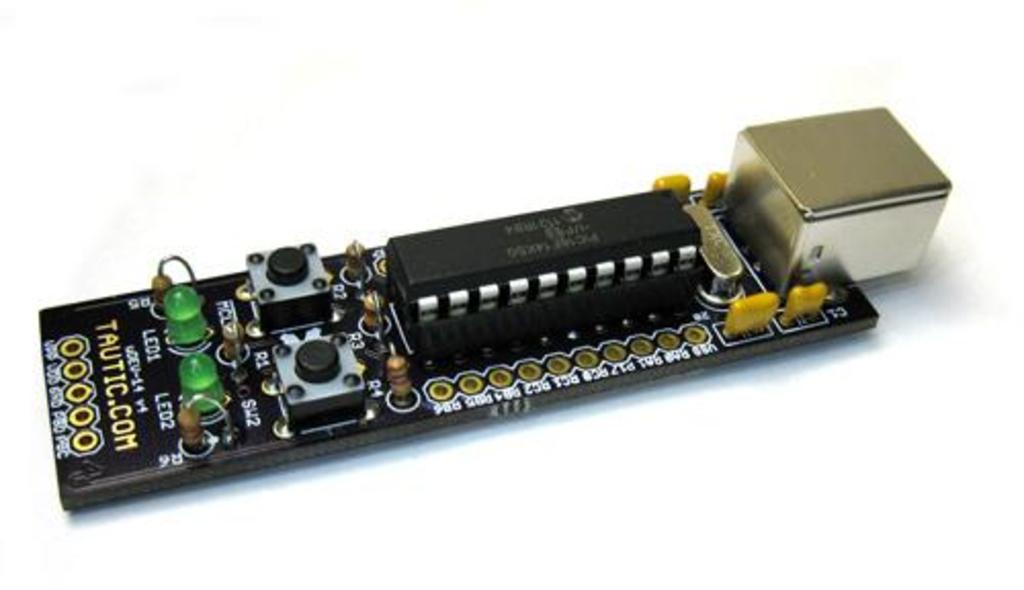

This board is designed to be a simple "quick start" to adding USB to your projects. It includes all parts necessary to connect a PIC18F14K50 microcontroller to a USB port.

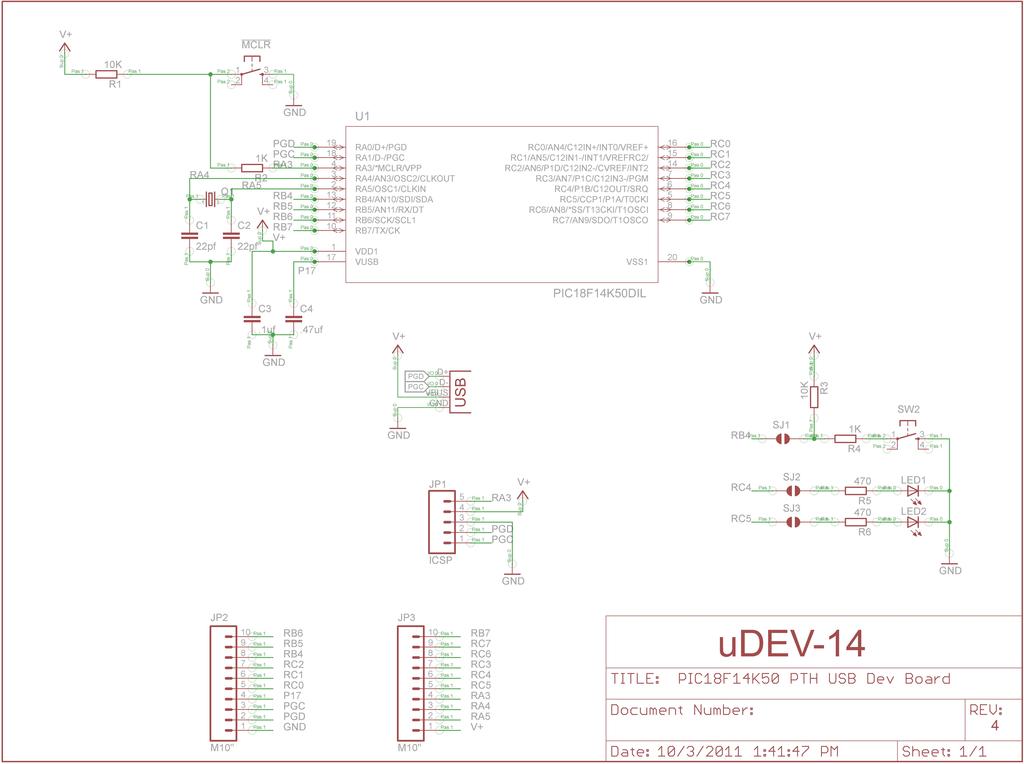

Schematic

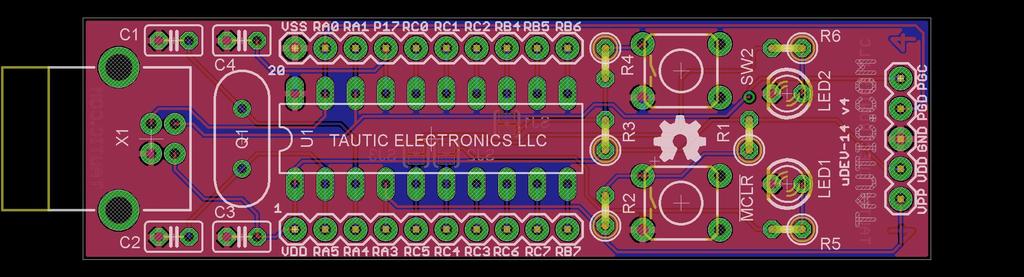

Board

Bill of Materials

Designator Value Description
!MCLR Momentary Switch
C1 22pf CAPACITOR, European symbol
C2 22pf CAPACITOR, European symbol
C3 .1uf CAPACITOR, European symbol
C4 .47uf CAPACITOR, European symbol
JP1 ICSP Header 5
JP2 M10" Header 10
JP3 M10" Header 10
LED1 LED
LED2 LED
Q1 Crystals
R1 10K RESISTOR, European symbol
R2 1K RESISTOR, European symbol
R3 10K RESISTOR, European symbol
R4 1K RESISTOR, European symbol
R5 470 RESISTOR, European symbol
R6 470 RESISTOR, European symbol
SJ1 SOLDERJUMPERTRACE Solder Jumper
SJ2 SOLDERJUMPERTRACE Solder Jumper
SJ3 SOLDERJUMPERTRACE Solder Jumper
SW2 Momentary Switch
U1 PIC18F14K50DIL
X1 USBPTH USB Connectors

[JSON]

Files

This project is © Jayson Tautic - TAUTIC ELECTRONICS LLC, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
