8 Channel LED Stacker tautic

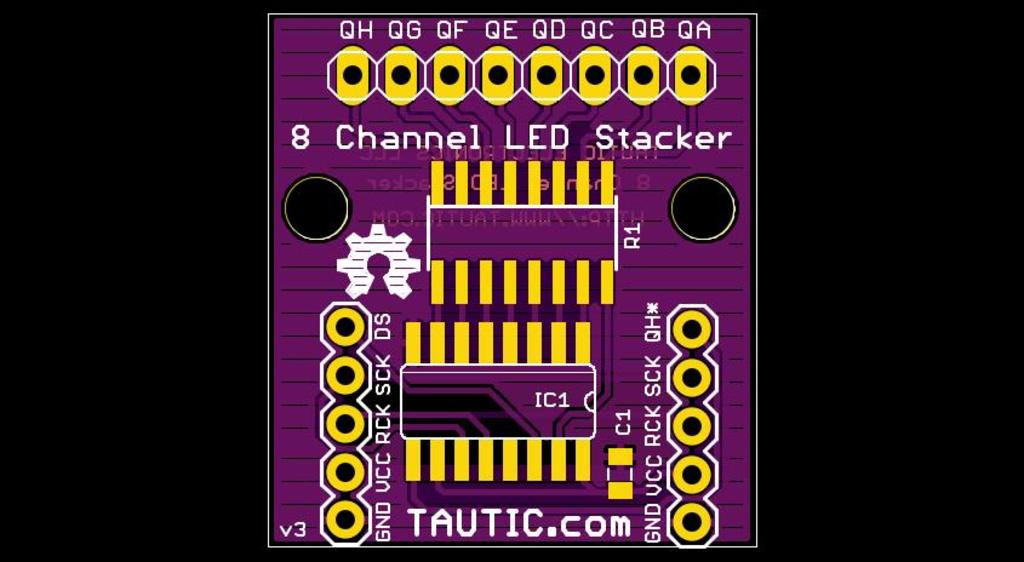

A Convenient little board with a 74HC595 Shift Register and resistor pack.

Recent activity:

  • tautic pushed to13 years ago
  • tautic bom received13 years ago
  • tautic pushed to13 years ago
  • tautic schematic processed13 years ago
  • tautic board processed13 years ago
  • tautic board received13 years ago

Tagged with

Description

Stack these end to end to add extra outputs to drive LEDs. Each board has a 74HC595 shift register and a SOIC16 resistor network package. The boards are stackable end to end as well so you can add more outputs to your project as necessary.

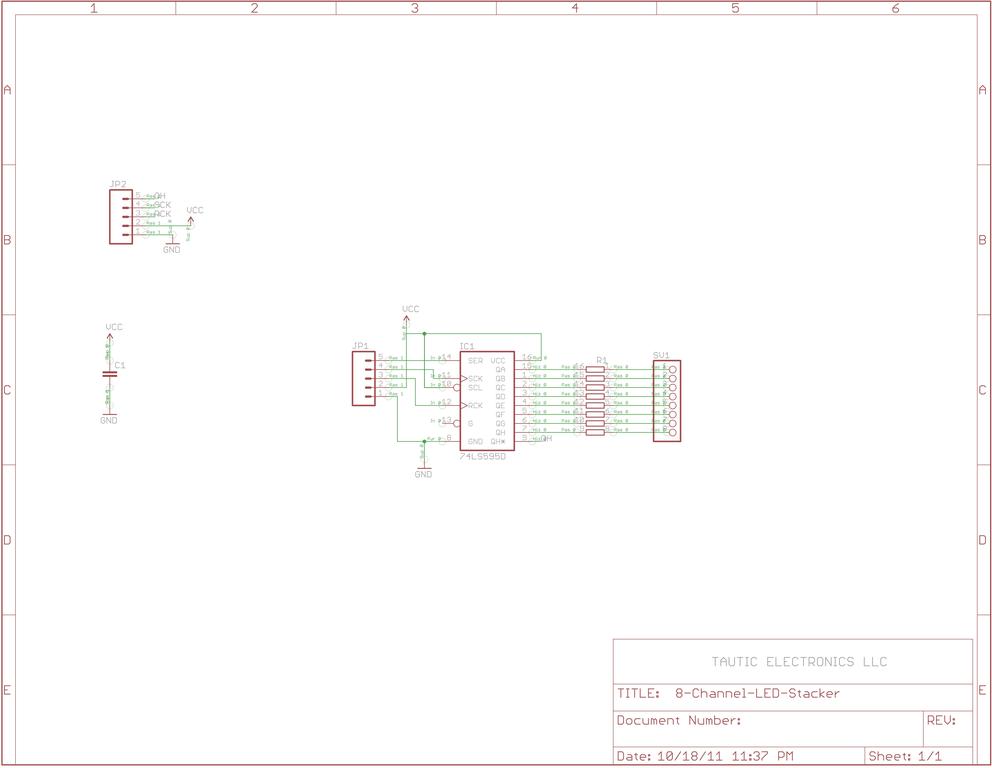

Schematic

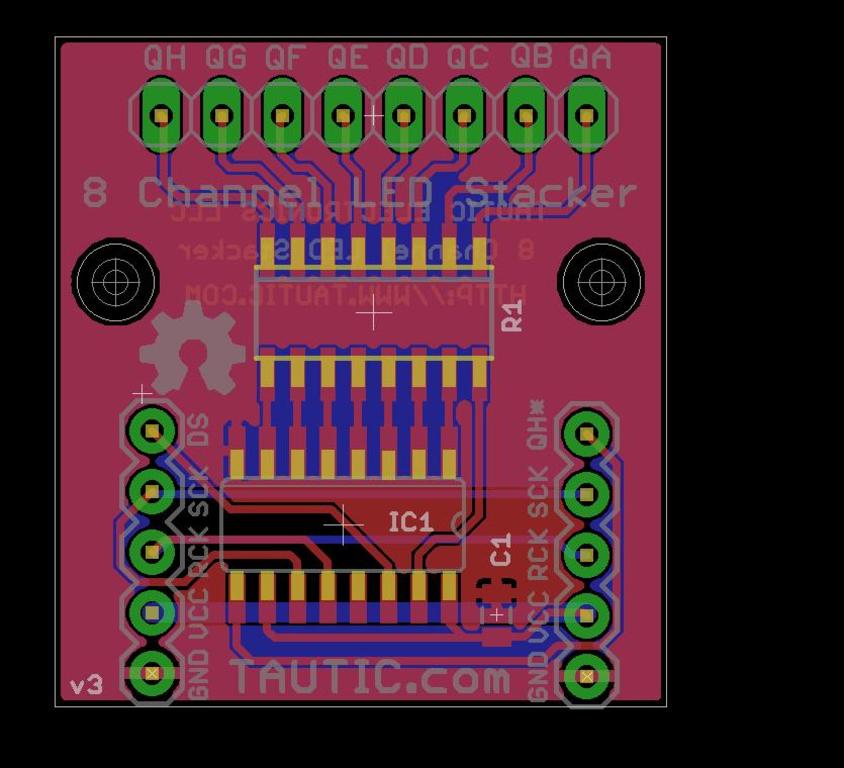

Board

Bill of Materials

Designator Value Description
C1 Capacitor
IC1 74LS595D 8-bit SHIFT REGISTER, output latch
JP1 Header 5
JP2 Header 5
R1 BOURNS RESISTOR NETWORK
SV1 PIN HEADER

[JSON]

Files

This project is © Jayson Tautic - TAUTIC ELECTRONICS LLC, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
