emonTx Shield SMT openenergymon
An Arduino compatible energy monitoring shield
http://openenergymonitor.org/emon/emontxshield/smtRecent activity:
- openenergymon updated — 11 years ago
- glynhudson pushed to — 11 years ago
- glynhudson schematic processed — 11 years ago
- glynhudson board processed — 11 years ago
- glynhudson board received — 11 years ago
- glynhudson schematic received — 11 years ago

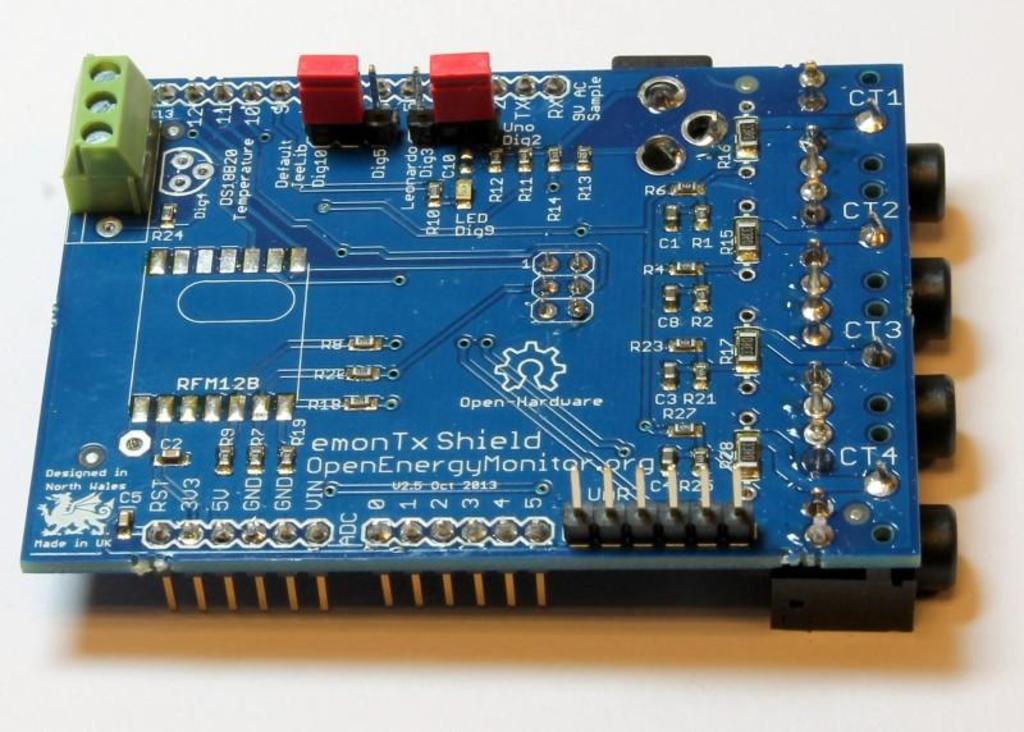

Description
An Arduino compatible energy monitoring shield, tested with Leonardo and Uno. With option for RFM12B wireless and DS18B20 temperature

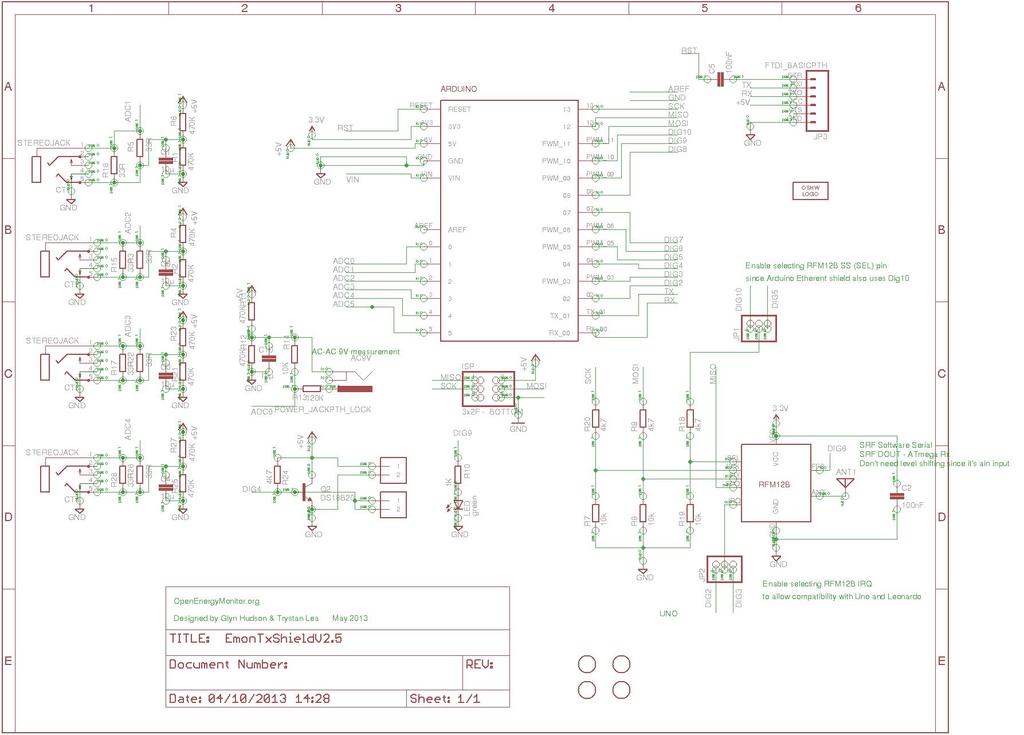

Schematic

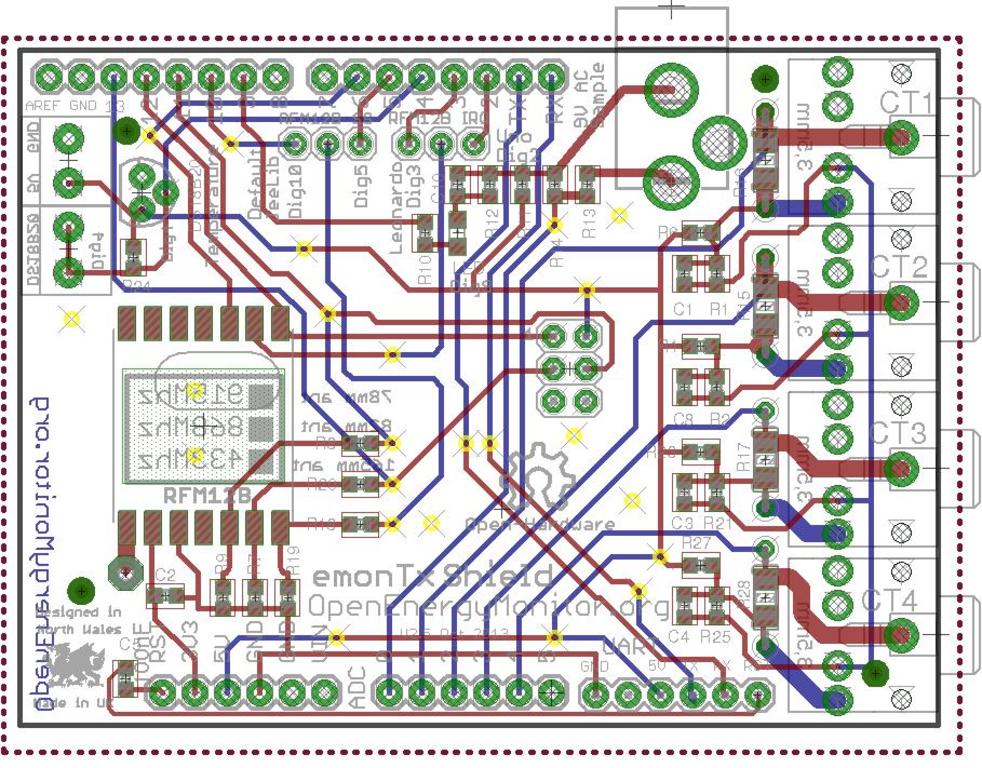

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| AC9V | POWER_JACKPTH_LOCK | Power Jack |
| ANT1 | Antenna | |
| ARDUINO1 | ARDUINO2 | For creating Arduino shields |
| C1 | 10µ | CAPACITOR, European symbol |
| C2 | 100nF | CAPACITOR, European symbol |
| C3 | 10µ | CAPACITOR, European symbol |
| C4 | 10µ | CAPACITOR, European symbol |
| C5 | 100nF | CAPACITOR, European symbol |
| C8 | 10µ | CAPACITOR, European symbol |
| C10 | 10µ | CAPACITOR, European symbol |
| CT1 | STEREOJACK | MIC/HEADPHONE JACK |
| CT2 | STEREOJACK | MIC/HEADPHONE JACK |
| CT3 | STEREOJACK | MIC/HEADPHONE JACK |
| CT4 | STEREOJACK | MIC/HEADPHONE JACK |
| ISP | 3x2F - BOTTOM | PIN HEADER |
| J1 | 1X2-3.5MM | 3.5mm Terminal block |
| J2 | 1X2-3.5MM | 3.5mm Terminal block |
| JP1 | PIN HEADER | |
| JP2 | PIN HEADER | |
| JP3 | FTDI_BASICPTH | FTDI Basic: 3.3V and 5V |
| LED | green | LED |
| LOGO1 | OSHW_LOGO_10MILX0200-NT | |
| Q2 | DS18B20 | Transistor NPN |
| R1 | 470K | RESISTOR, European symbol |
| R2 | 470K | RESISTOR, European symbol |
| R3 | 33R | RESISTOR, European symbol |
| R4 | 470K | RESISTOR, European symbol |
| R5 | 33R | RESISTOR, European symbol |
| R6 | 470K | RESISTOR, European symbol |
| R7 | 10k | RESISTOR, European symbol |
| R8 | 4k7 | RESISTOR, European symbol |
| R9 | 10k | RESISTOR, European symbol |
| R10 | 1K | RESISTOR, European symbol |
| R11 | 470K | RESISTOR, European symbol |
| R12 | 470K | RESISTOR, European symbol |
| R13 | 120K | RESISTOR, European symbol |
| R14 | 10K | RESISTOR, European symbol |
| R15 | 33R | RESISTOR, European symbol |
| R16 | 33R | RESISTOR, European symbol |
| R17 | 33R | RESISTOR, European symbol |
| R18 | 4k7 | RESISTOR, European symbol |
| R19 | 10k | RESISTOR, European symbol |
| R20 | 4k7 | RESISTOR, European symbol |
| R21 | 470K | RESISTOR, European symbol |
| R22 | 33R | RESISTOR, European symbol |
| R23 | 470K | RESISTOR, European symbol |
| R24 | 4K7 | RESISTOR, European symbol |
| R25 | 470K | RESISTOR, European symbol |
| R26 | 33R | RESISTOR, European symbol |
| R27 | 470K | RESISTOR, European symbol |
| R28 | 33R | RESISTOR, European symbol |
| U$1 | FIDUCIAL | For use by pick and place machines to calibrate the vision/machine, 1mm |
| U$2 | RFM12B | |
| U$3 | FIDUCIAL | For use by pick and place machines to calibrate the vision/machine, 1mm |
| U$4 | FIDUCIAL | For use by pick and place machines to calibrate the vision/machine, 1mm |
| U$5 | FIDUCIAL | For use by pick and place machines to calibrate the vision/machine, 1mm |
[JSON]
This project is © OpenEnergyMonitor.org, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
