Description
A a low power wireless energy monitoring node. Powered by an Atmega328 with Arduino bootloader.
It's designed to sense data from up to three CT current sensors, optically from a pulse-output utility meter and monitor temperatures from multiple digital temperature sensors on a one-wire bus. It's designed to be low power and can be powered by 2x AA batteries or 5V USB.
The emonTx is one part of the OpenEnergyMonitor end-to-end web-based energy monitoring system. The other parts being a graphical LCD wireless display (emonGLCD), web connected base station receiver (emonBase / Nanode-RF) and emoncms server based energy visualisation web application.

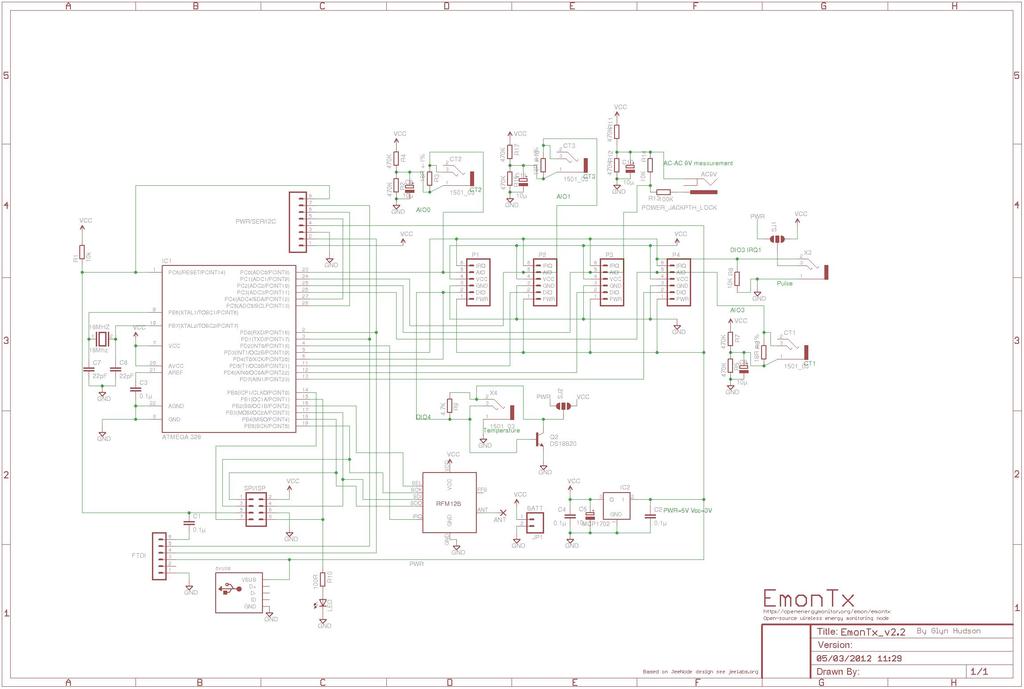

Schematic

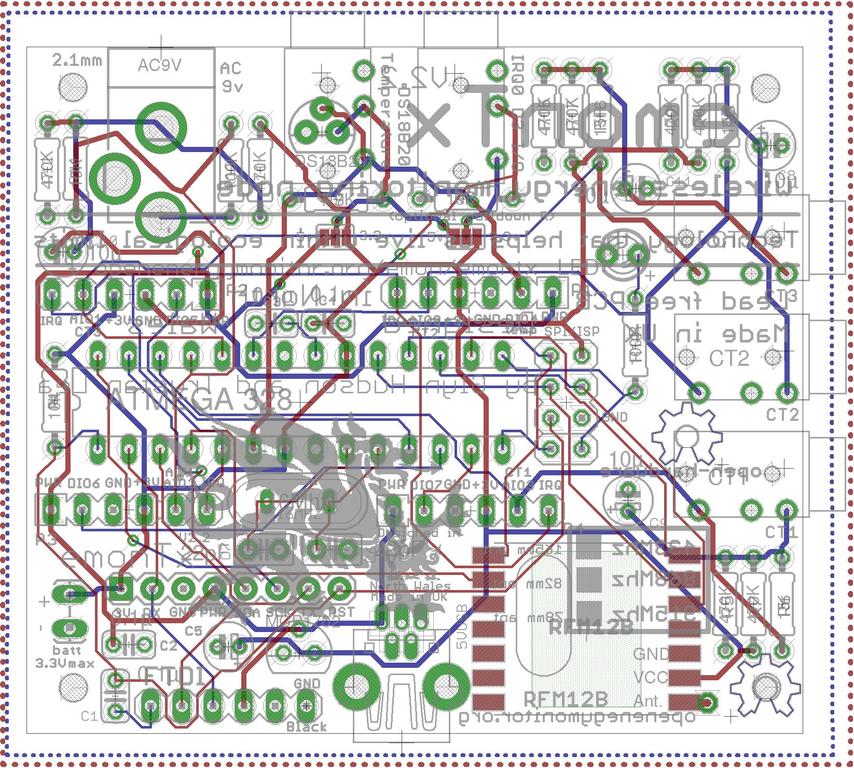

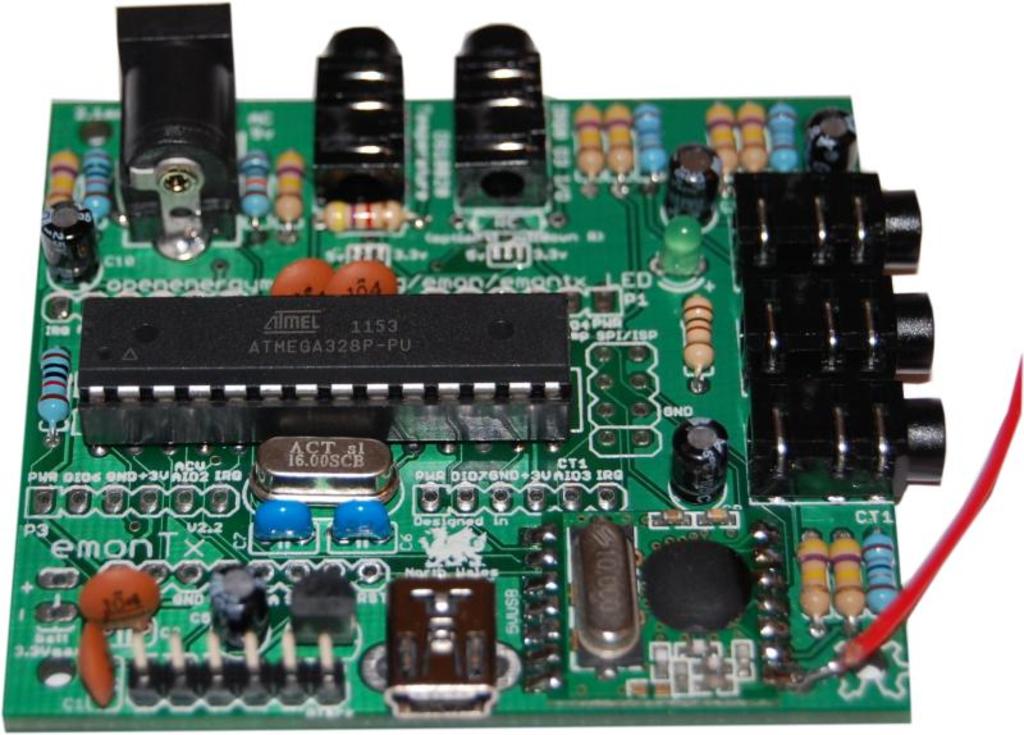

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| AC | POWER_JACKPTH_LOCK | Power Jack |
| ANT | THROUGH-HOLE PAD | |
| C1 | 0.1µ | CAPACITOR, European symbol |
| C2 | 0.1µ | CAPACITOR, European symbol |
| C3 | 0.1µ | CAPACITOR, European symbol |
| C4 | 0.1µ | CAPACITOR, European symbol |
| C5 | 10µ | POLARIZED CAPACITOR, European symbol |
| C6 | 22pF | CAPACITOR |
| C7 | 22pF | CAPACITOR |
| C8 | 10µ | POLARIZED CAPACITOR, European symbol |
| C9 | 10µ | POLARIZED CAPACITOR, European symbol |
| C10 | 10µ | POLARIZED CAPACITOR, European symbol |
| C11 | 10µ | POLARIZED CAPACITOR, European symbol |
| FTDI | FTDI | PIN HEADER |
| IC1 | ATMEGA 328 | |
| IC2 | MCP1702-33 | 200 mA, Low Power Low Dropout Voltage Regulator |
| JP1 | BATT | Header 2 |
| LED | LED | |
| P1 | JEEPORT | PIN HEADER |
| P2 | JEEPORT | PIN HEADER |
| P3 | JEEPORT | PIN HEADER |
| P4 | JEEPORT | PIN HEADER |
| PWR/SER/I2C | Header 8 | |
| Q1 | 16Mhz | CRYSTAL |
| R1 | 10k | RESISTOR, European symbol |
| R2 | 470K | RESISTOR, European symbol |
| R3 | 15r | RESISTOR, European symbol |
| R4 | 470K | RESISTOR, European symbol |
| R5 | 470K | RESISTOR, European symbol |
| R6 | 15r | RESISTOR, European symbol |
| R7 | 470K | RESISTOR, European symbol |
| R8 | 10K | RESISTOR, European symbol |
| R9 | 4.7K | RESISTOR, European symbol |
| R10 | 100 | RESISTOR, European symbol |
| R11 | 470K | RESISTOR, European symbol |
| R12 | 470K | RESISTOR, European symbol |
| R13 | 100K | RESISTOR, European symbol |
| R14 | 10K | RESISTOR, European symbol |
| R15 | 470K | RESISTOR, European symbol |
| R16 | 15r | RESISTOR, European symbol |
| R17 | 470K | RESISTOR, European symbol |
| SV7 | SPI/ISP | PIN HEADER |
| U$1 | RFM12B | |
| USBPWR | USB Connectors | |
| X1 | 1501_03 | Truconnect Minature PCB jack socket 3.5mm |
| X2 | 1501_03 | Truconnect Minature PCB jack socket 3.5mm |
| X3 | 1501_03 | Truconnect Minature PCB jack socket 3.5mm |
| X4 | 1501_03 | Truconnect Minature PCB jack socket 3.5mm |
| X6 | 1501_03 | Truconnect Minature PCB jack socket 3.5mm |
[JSON]
This project is © Glyn Hudson, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
