minimp omerk

A minimal breakout for the Electric Imp

Recent activity:

  • omerk updated4 years ago
  • omerk board processed4 years ago
  • omerk schematic processed4 years ago
  • omerk board received4 years ago
  • omerk schematic received4 years ago
  • omerk photo received4 years ago

No tags defined

Description

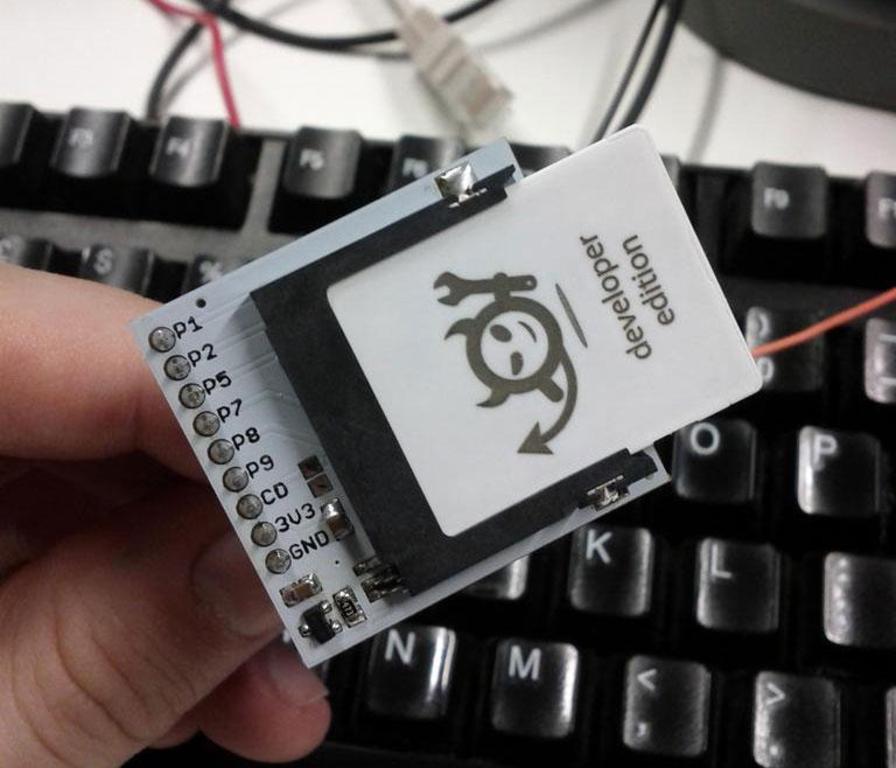

This is a minimal breakout for the Electric Imp.

It’s a stripped down version of the Sparkfun Breakout (which in turn is based on the Electric Imp Reference Design) with only the bare minimum set of parts required and an easier to source SD card socket footprint.

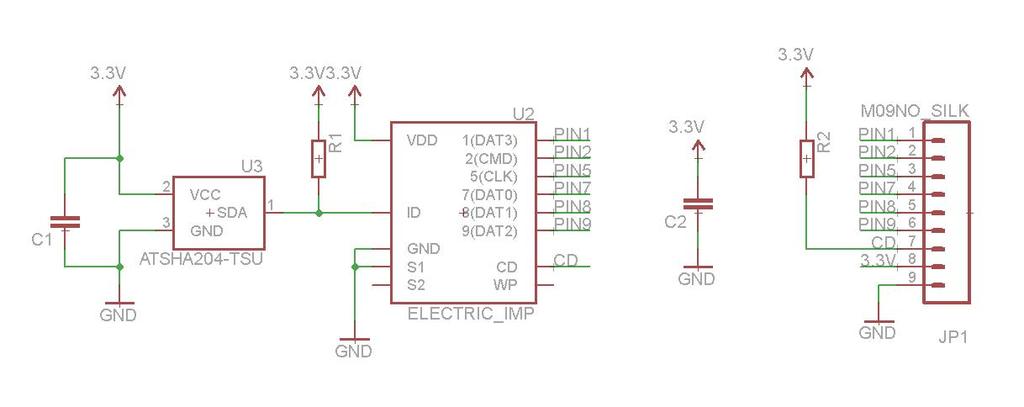

Schematic

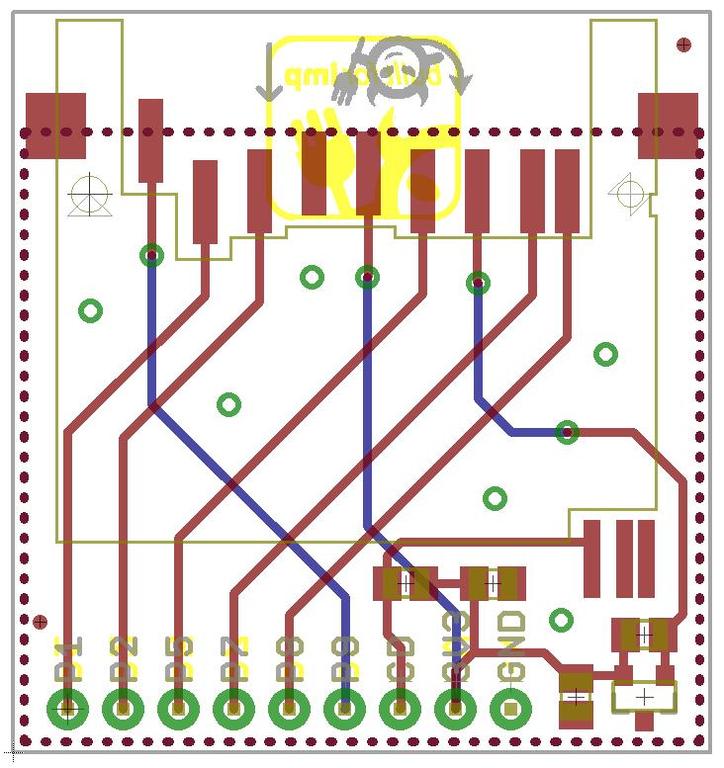

Board

Bill of Materials

Designator Value Description
U1 MULTICOMP/SDAMB-01215BT00 Socket, SD Card
U2 ATMEL/ATSHA204-TSU CryptoAuthentication Chip, SOT23-5
C1 100n Capacitor, SMD, 0805
C2 10u Capacitor, SMD, 0805
R1, R2 4k7 Resistor, SMD, 0805

[JSON]

Files

This project is © Omer Kilic, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
