Description

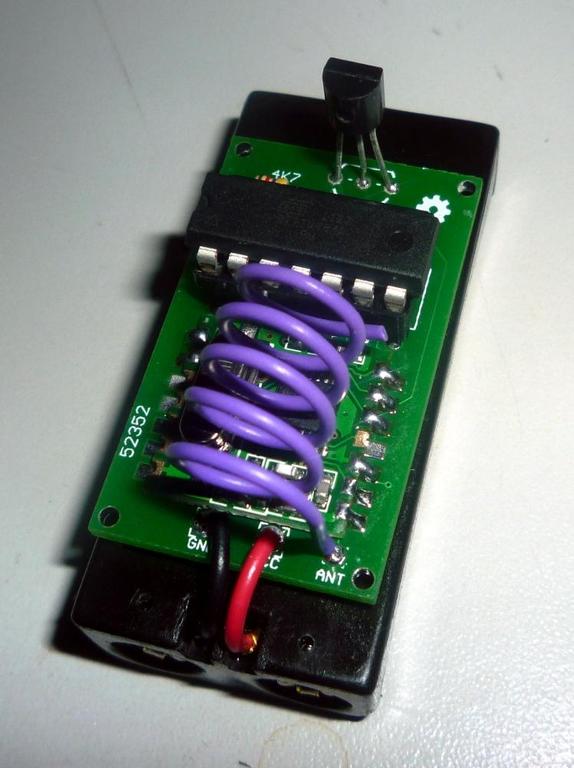

A small board for wireless sensor projects using the ATtiny84 microcontroller.
Uses the RFM12B wireless transceiver (433MHz, 868MHz or 915MHz) for compatibility with OpenEnergyMonitor, Nanode and Jeenodes.
Now superceded by TinyTX3: http://solderpad.com/nathanchantrell/tinytx3-wireless-sensor-node

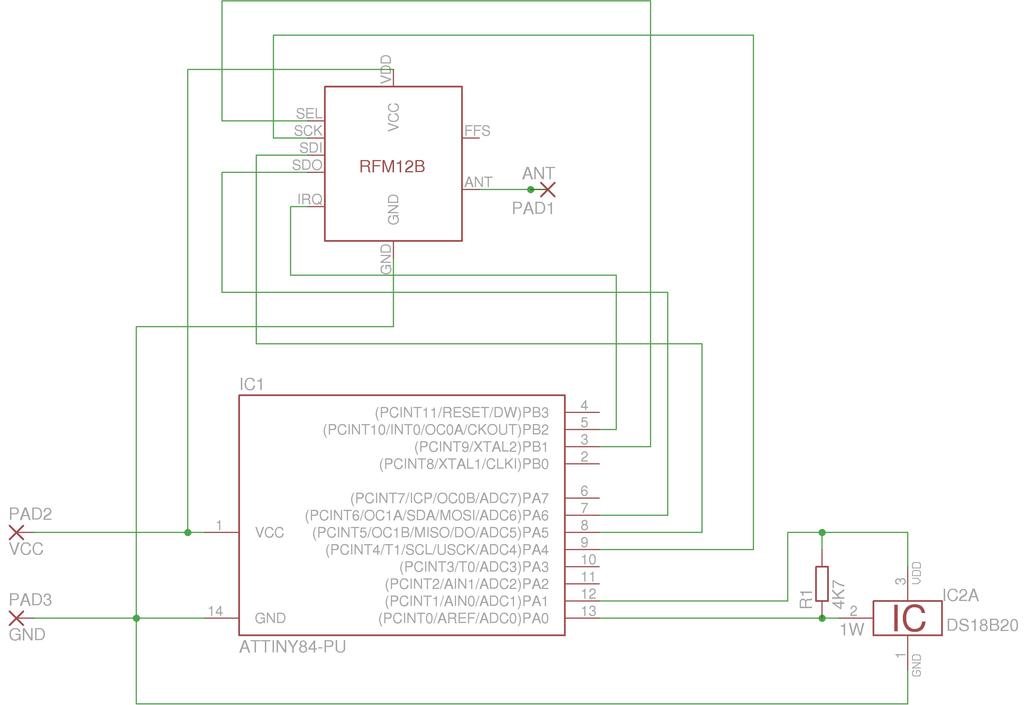

Schematic

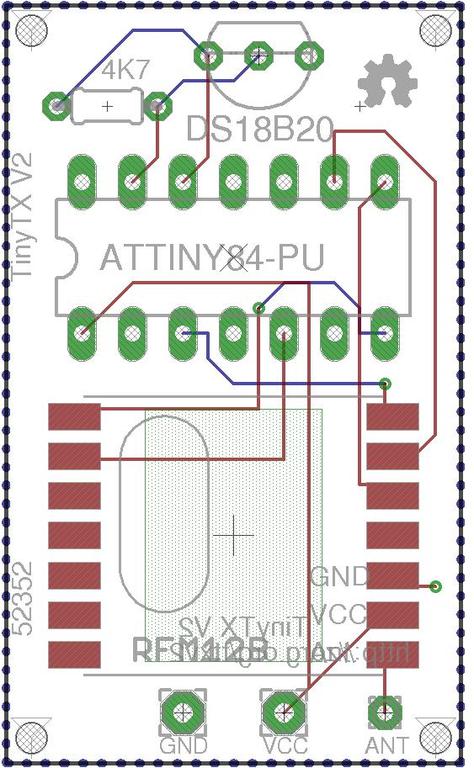

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| IC1 | ATTINY84-PU | |
| IC2 | DS18B20 | Programmable Resolution Digital Thermometer |
| PAD1 | ANT | THROUGH-HOLE PAD |
| PAD2 | VCC | THROUGH-HOLE PAD |
| PAD3 | GND | THROUGH-HOLE PAD |
| R1 | 4K7 | RESISTOR, European symbol |
| U$1 | RFM12B |
[JSON]
This project is © Nathan Chantrell, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
