LightRider test markt

Little LED test project

Recent activity:

  • markt updated13 years ago
  • markt bom received13 years ago
  • markt pushed to13 years ago
  • markt board processed13 years ago
  • markt schematic processed13 years ago
  • markt board received13 years ago

Tagged with

Description



This project does not have a descriptive photograph.

Little LED test project, first try at using SolderPad, not necessarily useful, interesting or even working project(!)

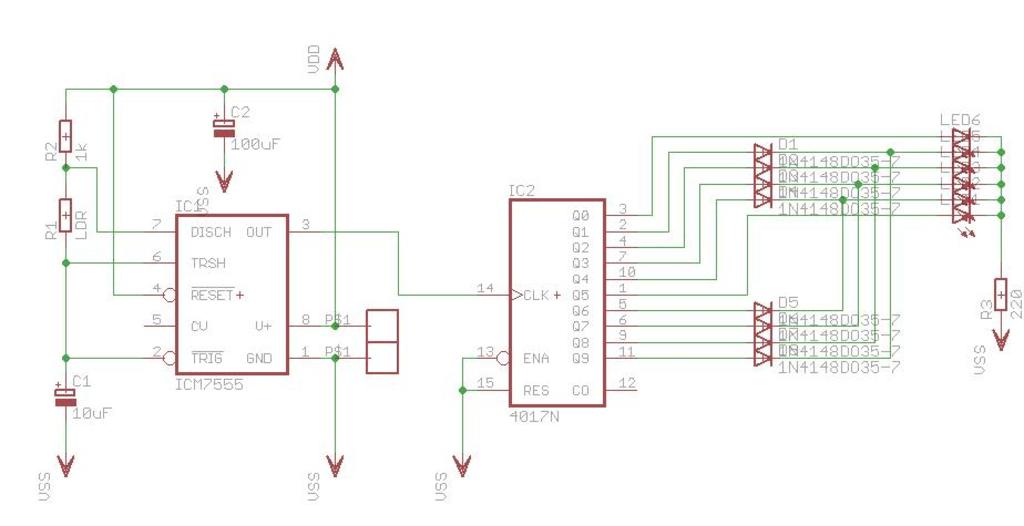

Schematic

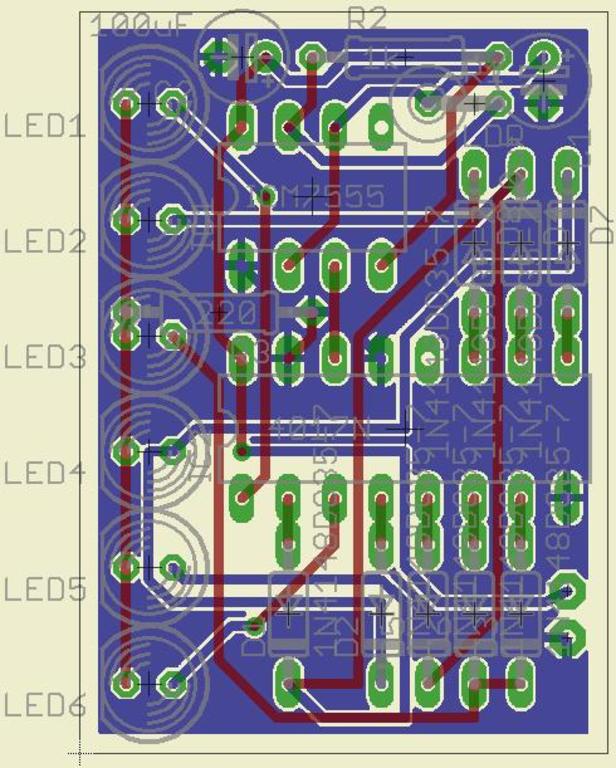

Board

Bill of Materials

Designator Value Description
C1 10uF POLARIZED CAPACITOR, European symbol
C2 100uF POLARIZED CAPACITOR, European symbol
D1 1N4148DO35-7 DIODE
D2 1N4148DO35-7 DIODE
D3 1N4148DO35-7 DIODE
D4 1N4148DO35-7 DIODE
D5 1N4148DO35-7 DIODE
D6 1N4148DO35-7 DIODE
D7 1N4148DO35-7 DIODE
D8 1N4148DO35-7 DIODE
IC1 ICM7555 TIMER
IC2 4017N COUNTER/DIVIDER
LED1 LED
LED2 LED
LED3 LED
LED4 LED
LED5 LED
LED6 LED
R1 LDR RESISTOR, European symbol
R2 1k RESISTOR, European symbol
R3 220 RESISTOR, European symbol
U$1 SMALLERPAD
U$2 SMALLERPAD

[JSON]

Files

This project is © Mark Tillotson, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
