JeeLabs Lux Plug jcw

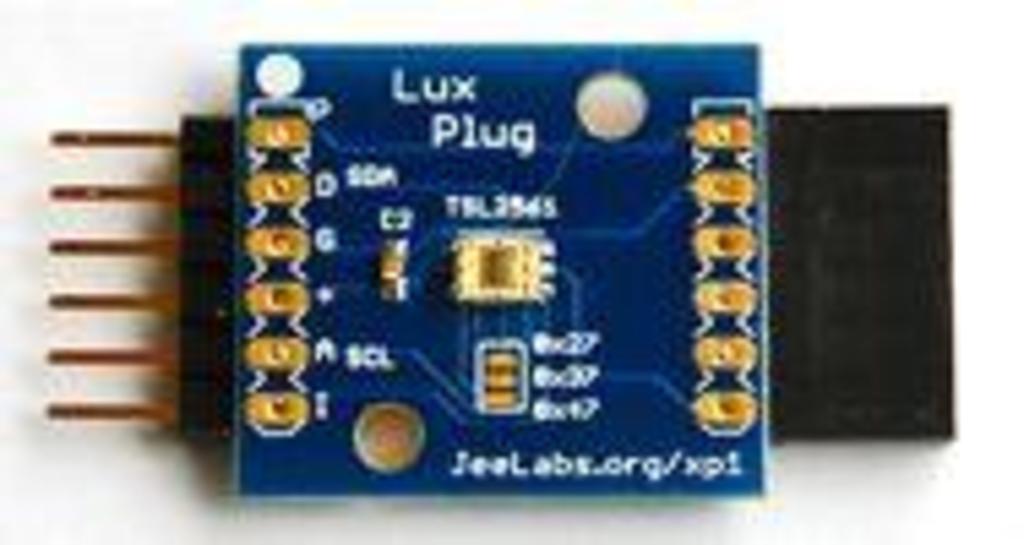

A small board containing a TSL2561 chip, which connects to the I2C bus and measures incident light levels

jeelabs.net/projects/hardware/wiki/Lux_Plug

Recent activity:

  • 9600 updated13 years ago
  • 9600 updated13 years ago
  • 9600 schematic processed13 years ago
  • 9600 schematic updated13 years ago
  • 9600 pushed13 years ago
  • 9600 board processed13 years ago

Tagged with

Description

Two sensors are included, one is sensitive to infrared. An algorithm is used to calculate the light levels in lux, by combining the readings from both sensor types. The total measurable dynamic range is 1 : 1,000,000.

An I2C bus running at 3.3V is used for I/O, with all the power and signal lines brought out to to both sides of the board to allow daisy-chaining with other I2C-conformant boards.

For additional details, see jeelabs.org/2010/03/21/lux-plug/.

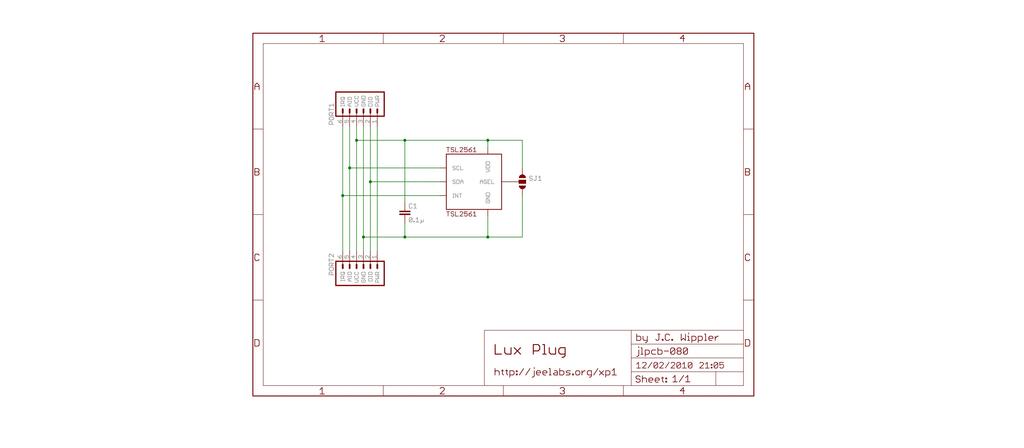

Schematic

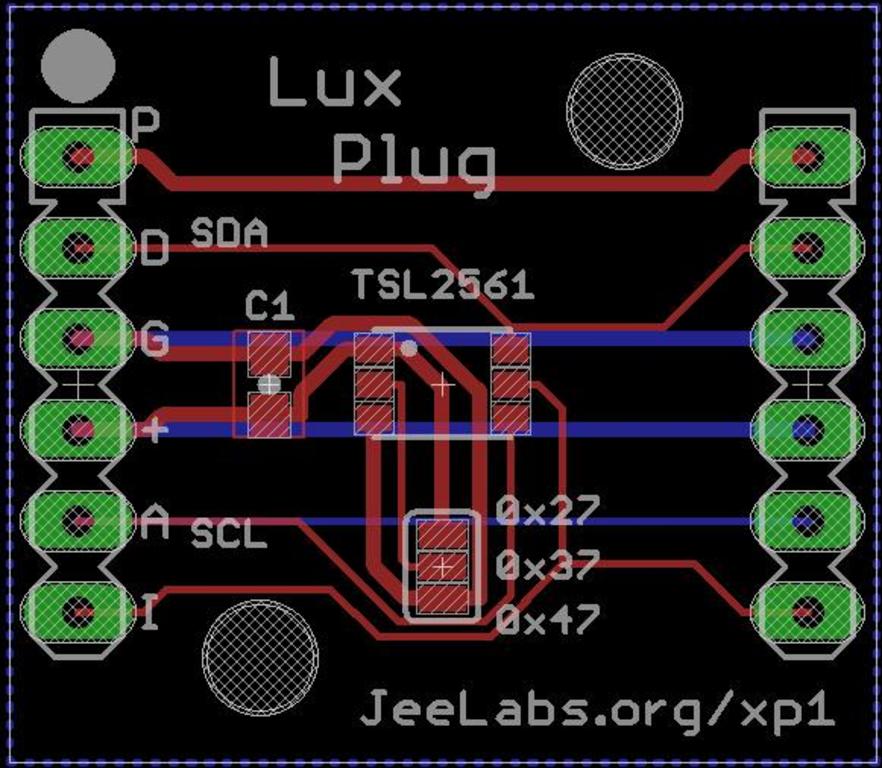

Board

Bill of Materials

Designator Value Description
C1 0.1µ Capacitor
PORT1 JEEPORT PIN HEADER
PORT2 JEEPORT PIN HEADER
SJ1 Solder Jumper
TSL2561 TSL2561

[JSON]

Files

This project is © Jean-Claude Wippler, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
