JeeLabs JeeNode v6 jcw

A low-cost combination of radio and microcontroller board

jeelabs.net/projects/hardware/wiki/JeeNode

Recent activity:

  • 9600 updated13 years ago
  • psd pushed13 years ago
  • psd pushed13 years ago
  • 9600 pushed13 years ago

Tagged with

Description

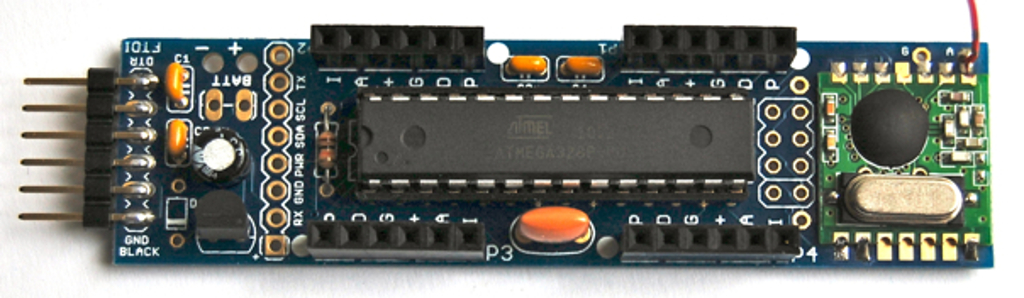

Think of the JeeNode as an Arduino + Xbee shield + Xbee, but smaller and less feature-full than the XBee.

The JeeNode is based on an Atmel ATmega328 - the same as an Arduino - and was inspired by Modern Device's Really Bare Bones Board, which is like a minimal implementation of an Arduino. The USB communication interface has been removed and any USB-to-TTLSerial based on the FTDI232R chip is guaranteed to work as connection. Being compatible with Arduino boards such as the Duemilanove means that you can use the IDE to upload a sketch using any PC running Windows, Mac OS X, or Linux.

The radio is a HopeRF wireless module, which is available for the 433, 868, or 915 MHz frequency bands. It is not compatible with the XBee - the RFM12B has its own very lightweight RF12 driver library.

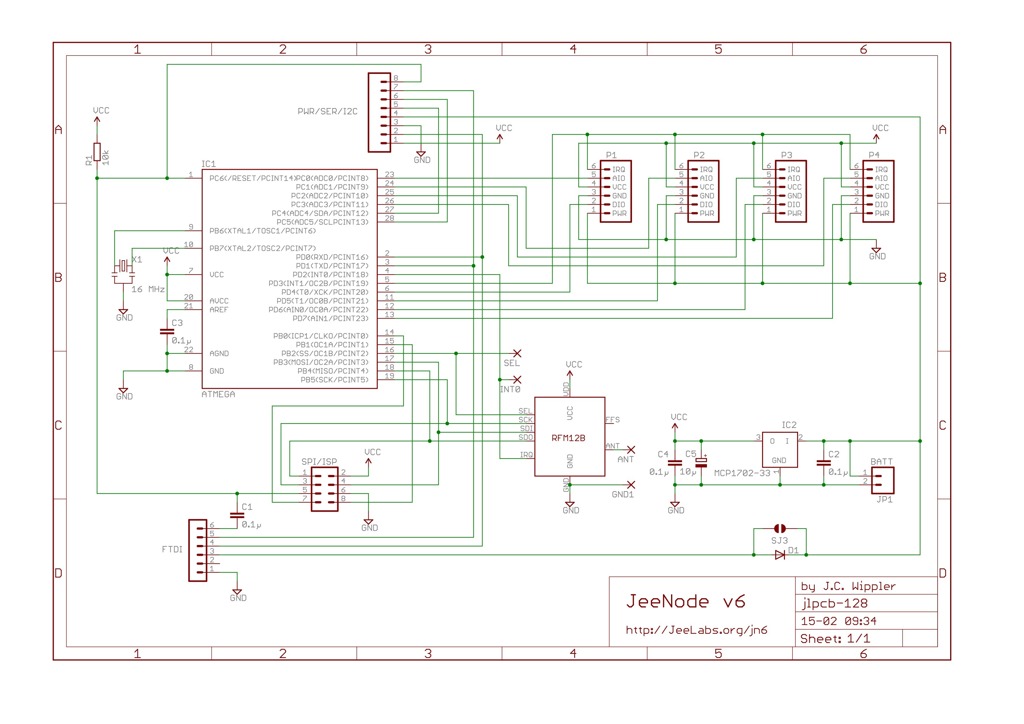

Schematic

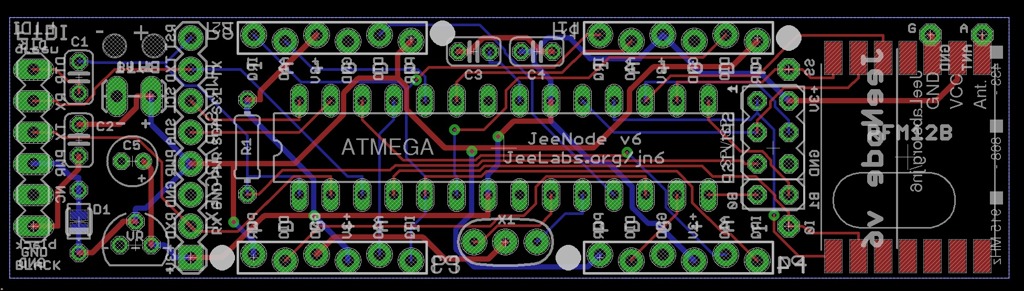

Board

Bill of Materials

Designator Value Description
ANT THROUGH-HOLE PAD
C1 0.1µ CAPACITOR, European symbol
C2 0.1µ CAPACITOR, European symbol
C3 0.1µ CAPACITOR, European symbol
C4 0.1µ CAPACITOR, European symbol
C5 10µ POLARIZED CAPACITOR, European symbol
D1 DIODE
FTDI FTDI PIN HEADER
GND1 THROUGH-HOLE PAD
IC1 ATMEGA
IC2 MCP1702-33 200 mA, Low Power Low Dropout Voltage Regulator
INT0 THROUGH-HOLE PAD
JP1 BATT Header 2
P1 JEEPORT PIN HEADER
P2 JEEPORT PIN HEADER
P3 JEEPORT PIN HEADER
P4 JEEPORT PIN HEADER
PWR/SER/I2C Header 8
R1 10k RESISTOR, European symbol
SEL THROUGH-HOLE PAD
SJ3 SOLDERJUMPERTRACE Solder Jumper
SV7 SPI/ISP PIN HEADER
U$1 RFM12B
X1 16 MHz Resonator

[JSON]

Files

This project is © Jean-Claude Wippler, and is published under the terms of the Creative Commons Attribution 3.0 Unported licence.
