JeeLabs Heading Board jcw

A small board containing the HDPM01 compass module by HopeRF

jeelabs.net/projects/hardware/wiki/Heading_Board

Recent activity:

  • 9600 updated13 years ago
  • psd pushed13 years ago
  • psd pushed13 years ago
  • 9600 pushed13 years ago

Tagged with

Description

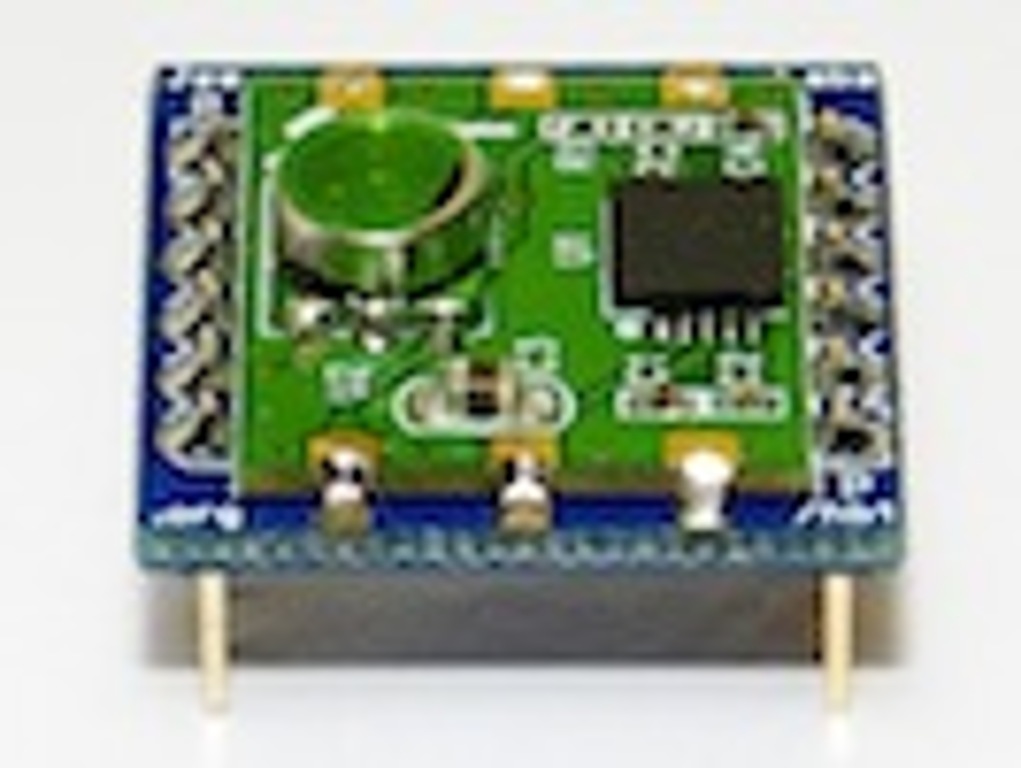

The Heading Board is a small board containing the HDPM01 compass module by HopeRF. For some reason, there is also a barometer and a temperature sensor on this module - which you can ignore if all you need is a compass, i.e. a 2-axis magnetometer. Each of the two magnetometer axes has 12-bit accuracy, and a sensitivity of 512 counts per Gauss. There is a “HeadingBoard” class in the Ports library to interface with this sensor and read out all three on-board sensors.

This board uses the conventions of a JeePlug and can be used with the ports on a JeeNode. It can also be used with other boards and MCU's, if you hook it up properly and adapt the interface code for it.

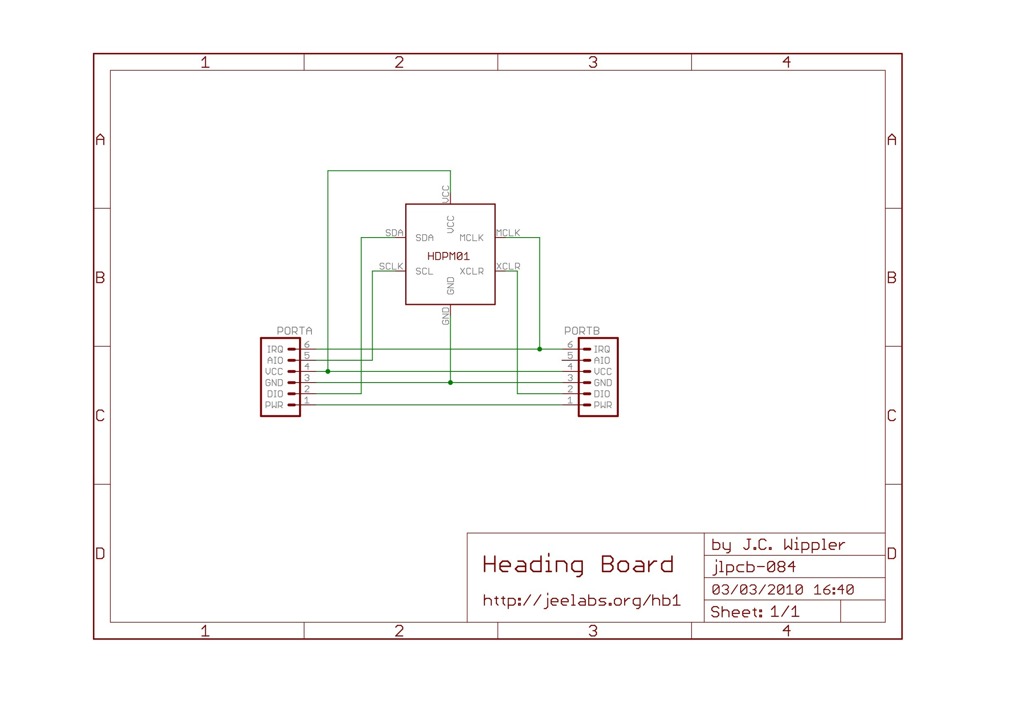

Schematic

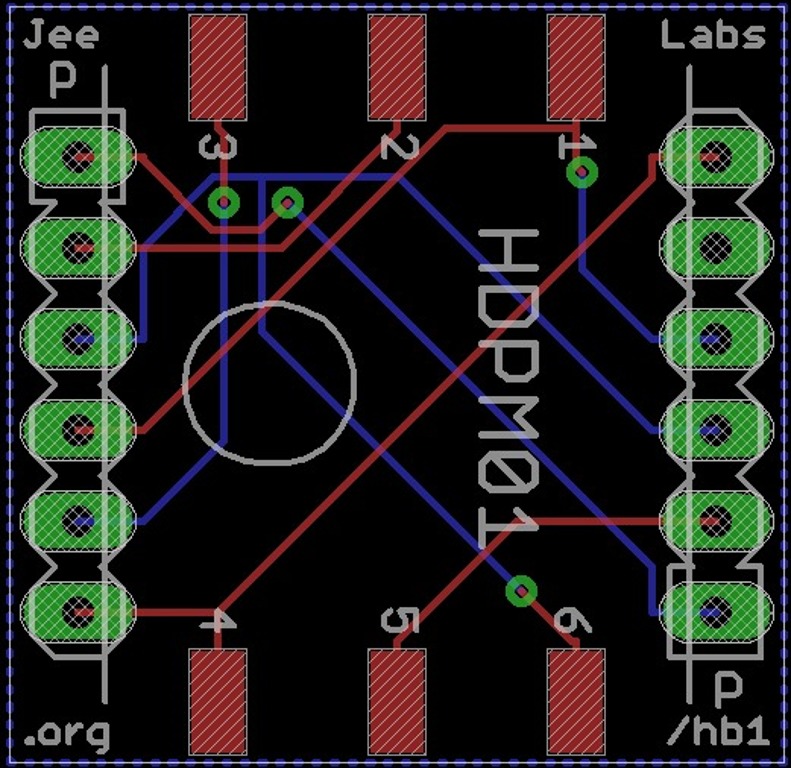

Board

Bill of Materials

Designator Value Description
PORTA JEEPORT PIN HEADER
PORTB JEEPORT PIN HEADER
U$1 HDPM01

[JSON]

Files

This project is © Jean-Claude Wippler, and is published under the terms of the Creative Commons Attribution 3.0 Unported licence.
