JeeLabs Gravity Plug jcw

A small board containing a BMA020 3-axis accelerometer, connected via I2C

jeelabs.net/projects/hardware/wiki/Gravity_Plug

Recent activity:

  • 9600 updated13 years ago
  • 9600 pushed13 years ago
  • psd pushed13 years ago
  • 9600 pushed13 years ago

Tagged with

Description

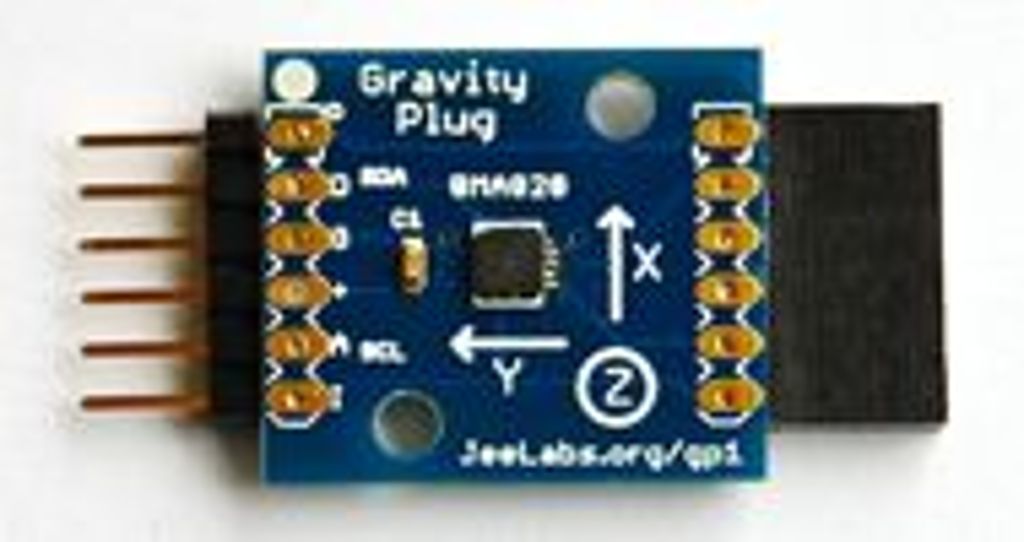

The Gravity Plug is a small board containing a BMA020 3-axis accelerometer, connected via I2C.

The range of the accelerometer can be adjusted between ±2g .. ±8g.

This board uses the conventions of a JeePlug and can be used with the ports on a JeeNode. It can also be used with other boards and MCU's, if you hook it up properly and adapt the interface code for it.

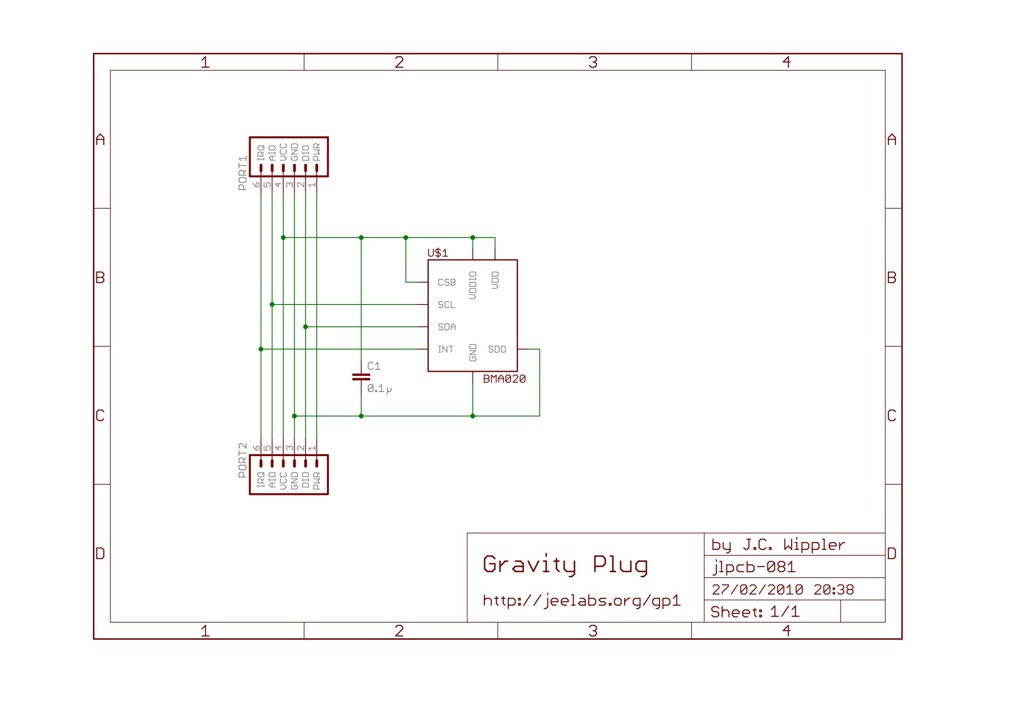

Schematic

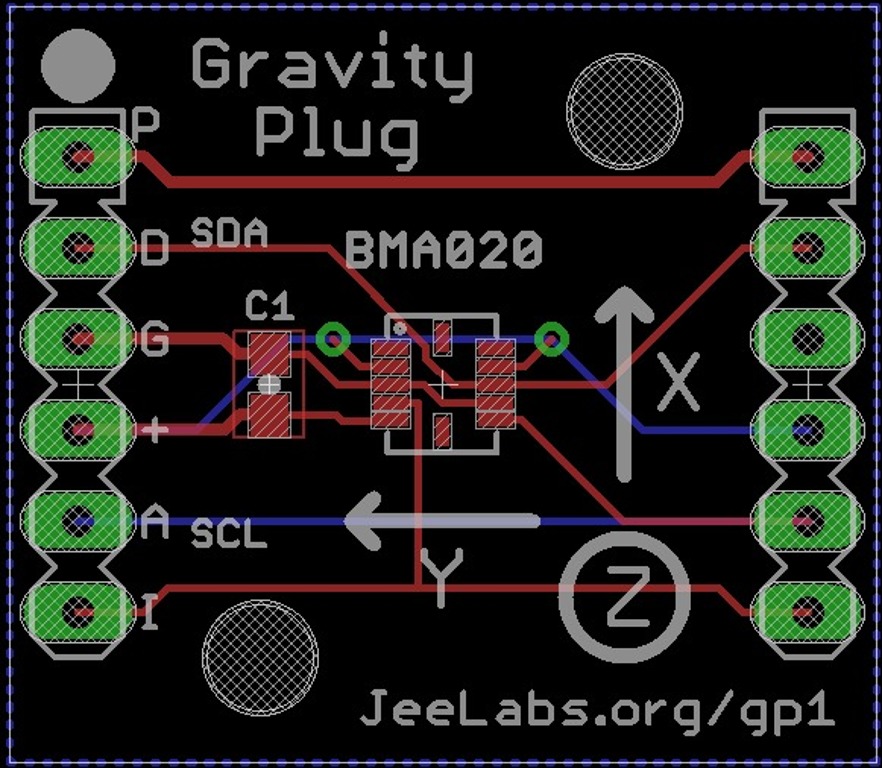

Board

Bill of Materials

Designator Value Description
C1 0.1µ Capacitor
PORT1 JEEPORT PIN HEADER
PORT2 JEEPORT PIN HEADER
U$1 BMA020

[JSON]

Files

This project is © Jean-Claude Wippler, and is published under the terms of the Creative Commons Attribution 3.0 Unported licence.
