Little Wire ihsan_kehribar

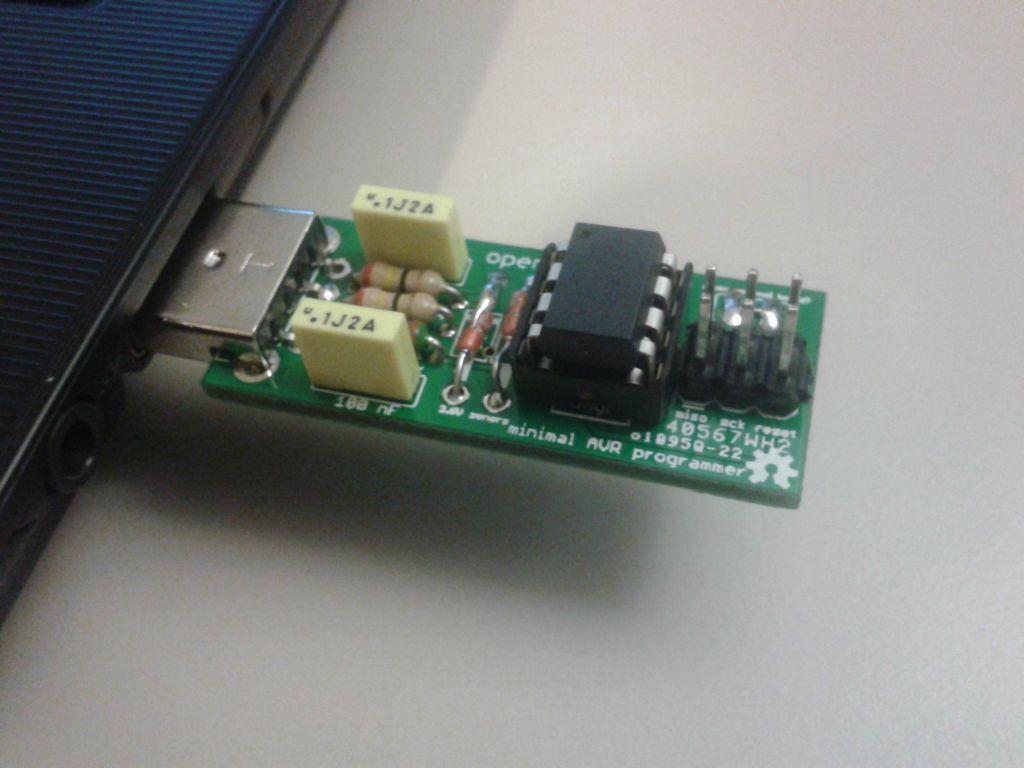

Minimal designed v-usb based usbtiny compatible avr isp programmer, adc logger, USB controlled digital I/O and much more.
http://kehribar.me/projects/Little-WireRecent activity:
- ihsan_kehribar updated — 13 years ago
- ihsan_kehribar updated — 13 years ago
- ihsan_kehribar schematic processed — 13 years ago
- ihsan_kehribar board processed — 13 years ago
- ihsan_kehribar board received — 13 years ago
- ihsan_kehribar schematic received — 13 years ago

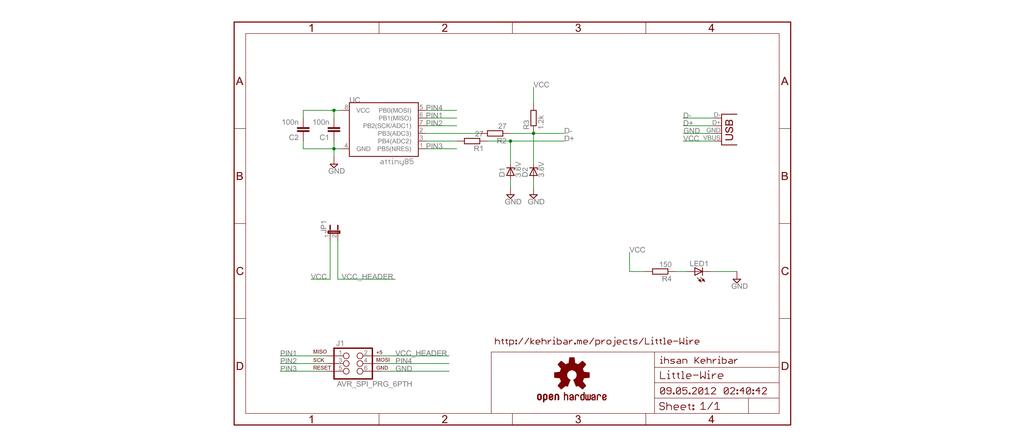

Schematic

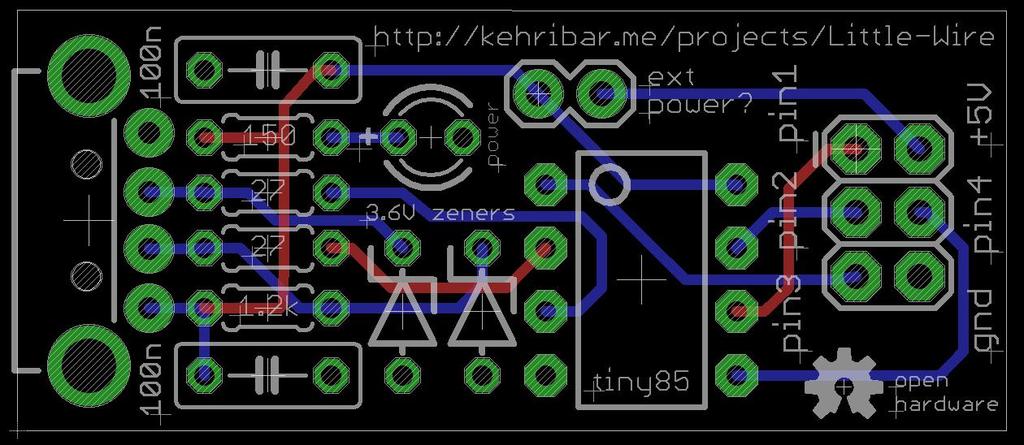

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| C1 | 100n | CAPACITOR, European symbol |
| C2 | 100n | CAPACITOR, European symbol |
| D1 | 3.6V | Z-Diode |
| D2 | 3.6V | Z-Diode |
| J1 | AVR_SPI_PRG_6PTH | AVR ISP 6 Pin |
| POW | JUMPER | |
| R1 | 27 | RESISTOR, European symbol |
| R2 | 27 | RESISTOR, European symbol |
| R3 | 1.2k | RESISTOR, European symbol |
| U$1 | OSHW-LOGOS | Open Source Hardware Logo This logo indicates the piece of hardware it is found on incorporates a OSHW license and/or adheres to the definition of open source hardware found here: http://freedomdefined.org/OSHW |
| UC | ATTINY85DIP8 | Atmel ATTiny85 |
| X1 | USB-A-H | USB Connectors |
[JSON]
This project is © ihsan Kehribar, and is published under the terms of the GNU General Public License, version 3 licence.
