PiBot folknology

A bot exploration board for Raspberry Pi

PiBot Home

Recent activity:

Tagged with

Description

The PiBot exploration board for Raspberry Pi enables your pi to drive servo motors and unipolar stepper motors to explore basic motion control and roboting on your raspberry Pi. It also features up to 6 ADC inputs and 6 PWM outputs, as well an RGB Led to mix colour output.

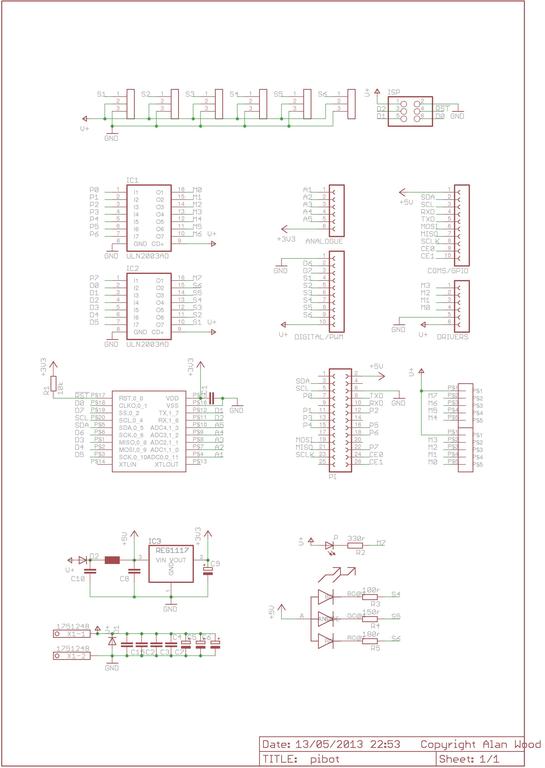

Schematic

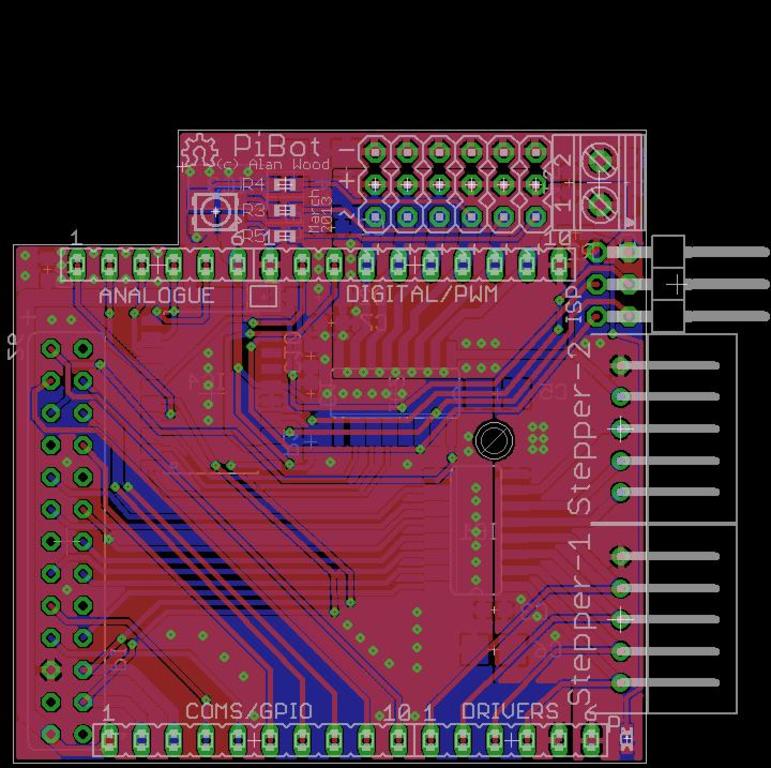

Board

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Alan Wood, and is published under the terms of the CERN Open Hardware Licence, version 1.1 licence.
