Hybrid Open Motor Module folknology

Hybrid Open Motor Module

Hybrid Open Motor Module

Recent activity:

Tagged with

Description



This project does not have a descriptive photograph.

An open source hardware hybrid motor driver module for brushed DC and/or Stepper motors. Each full bridge is capable of providing DC or stepper driving under complete software control, it also allows hybrid mixing of motor types limited only by number of bridges. It also features real-time dynamic current control chopping on the fly.

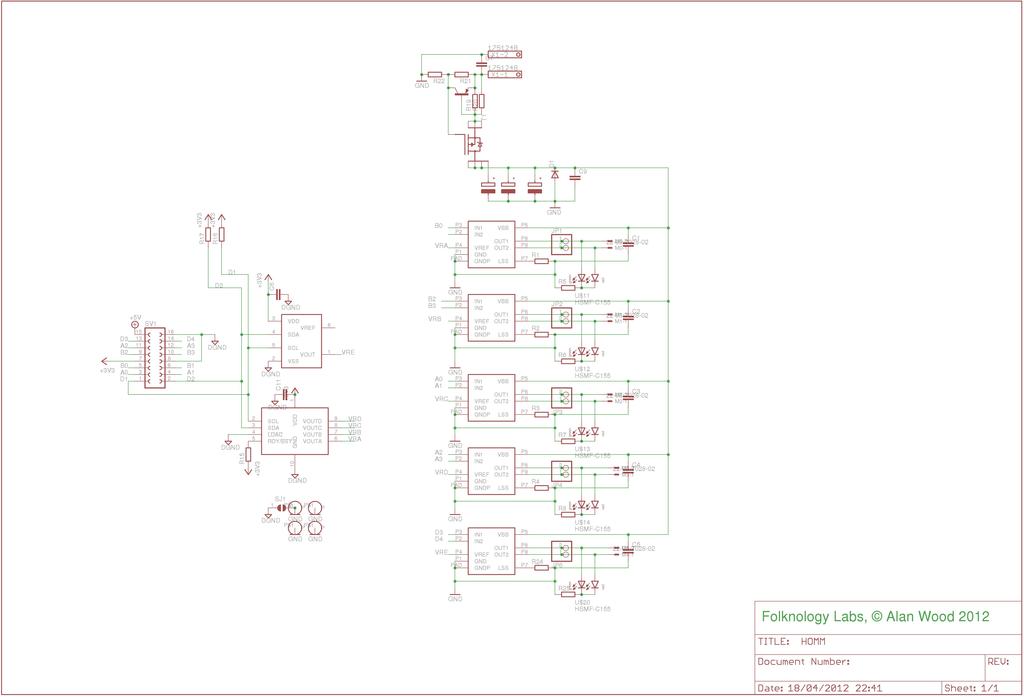

Schematic

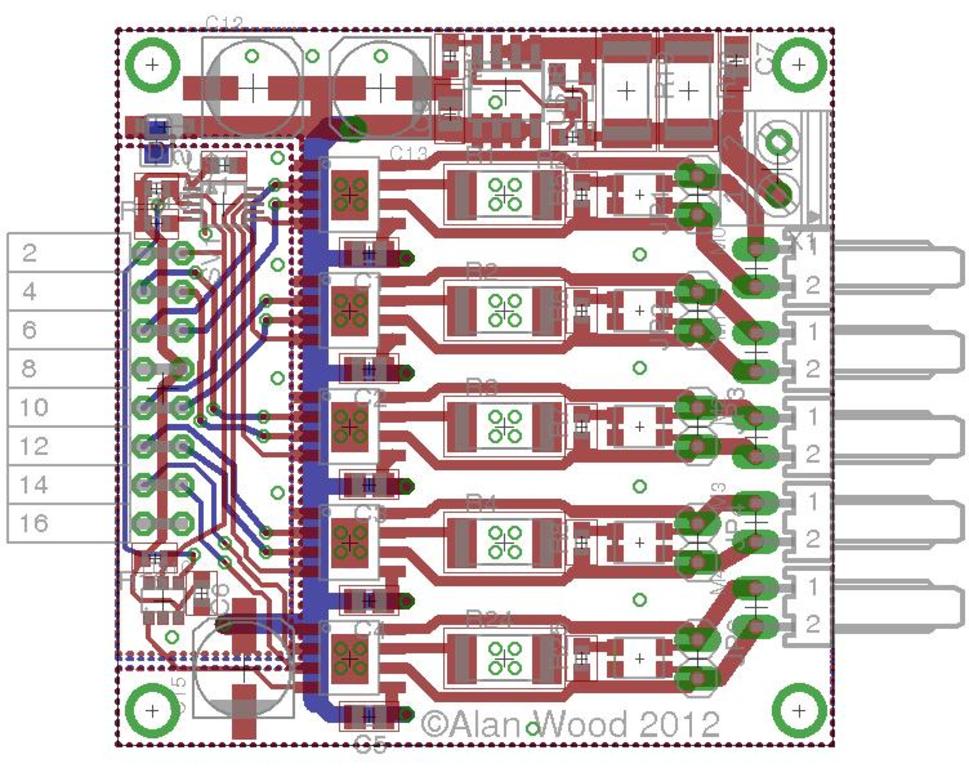

Board

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Alan Wood, and is published under the terms of the CERN Open Hardware Licence, version 1.1 licence.
