Fluxlight folknology

Light Industrial coms based Flux motion controller

Fluxlight

Recent activity:

Tagged with

Description

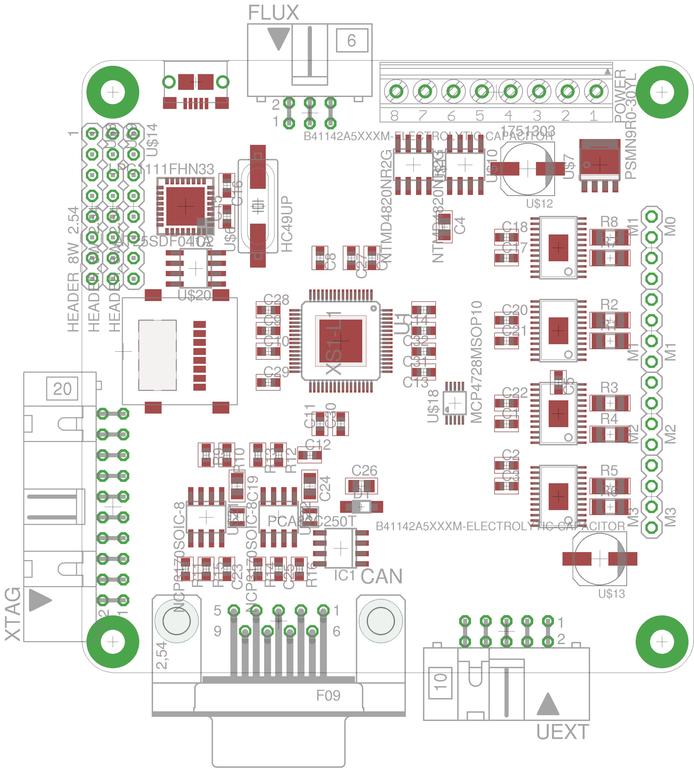

Part of the Flux series of networked multi access motion controllers, Fluxlight is equipped with light industrial interfaces like CAN as well as a Uext expansion for adding things like RS422/485 or input encodings over SPI etc.. It supports up to 4 small stepper axis or 8 DC servos. It also has a virtual USB coms port for bootloading, communication and diagnostics. A combination of ADCs and PWMs also allow for temperature and simple PID based controls concurrently with the networked motion controller cores.

Schematic

This project does not have a schematic diagram.

Board

This project does not have a board layout.

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Alan Wood, and is published under the terms of the CERN Open Hardware Licence, version 1.1 licence.
