Temperature Strip dirkx

Measure temperatures in a range of places with ease

Recent activity:

  • dirkx board processed — 12 years ago
  • dirkx schematic processed — 12 years ago
  • dirkx board received — 12 years ago
  • dirkx schematic received — 12 years ago
  • dirkx bom received — 12 years ago
  • dirkx pushed to — 12 years ago

Tagged with

Description



This project does not have a descriptive photograph.

A small strip of MAXIM 7500 temperature sensors which can be made as long or short as needed and easily connected to an arduino

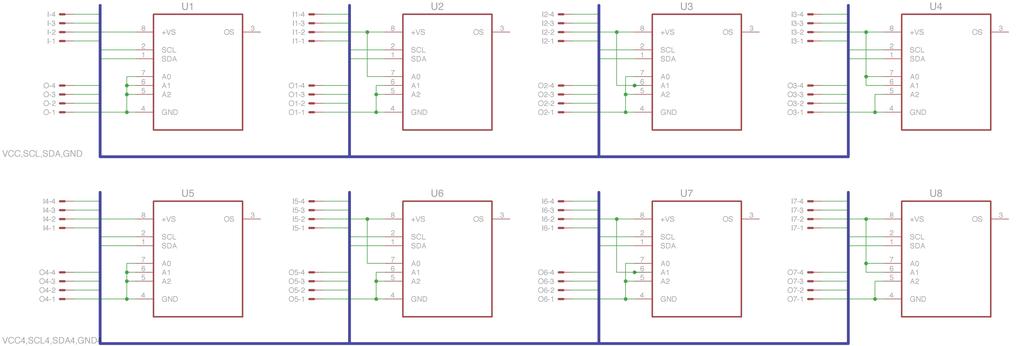

Schematic

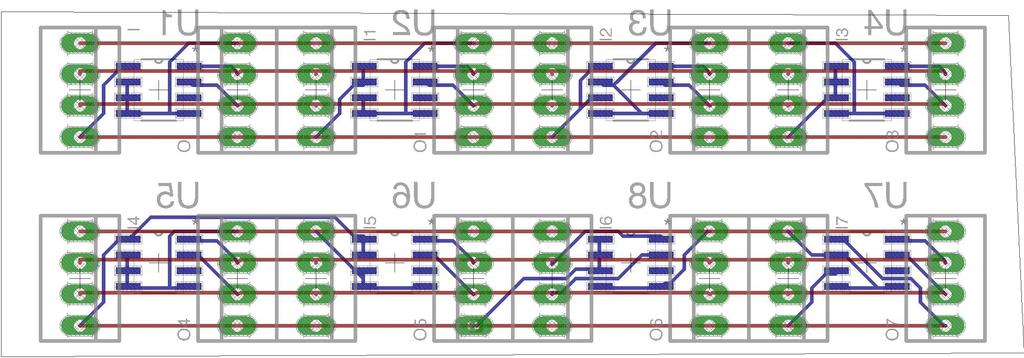

Board

Bill of Materials

Designator Value Description
I .100" (2.54mm) Center Header - 4 Pin
I1 .100" (2.54mm) Center Header - 4 Pin
I2 .100" (2.54mm) Center Header - 4 Pin
I3 .100" (2.54mm) Center Header - 4 Pin
I4 .100" (2.54mm) Center Header - 4 Pin
I5 .100" (2.54mm) Center Header - 4 Pin
I6 .100" (2.54mm) Center Header - 4 Pin
I7 .100" (2.54mm) Center Header - 4 Pin
O .100" (2.54mm) Center Header - 4 Pin
O1 .100" (2.54mm) Center Header - 4 Pin
O2 .100" (2.54mm) Center Header - 4 Pin
O3 .100" (2.54mm) Center Header - 4 Pin
O4 .100" (2.54mm) Center Header - 4 Pin
O5 .100" (2.54mm) Center Header - 4 Pin
O6 .100" (2.54mm) Center Header - 4 Pin
O7 .100" (2.54mm) Center Header - 4 Pin
U1 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface
U2 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface
U3 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface
U4 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface
U5 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface
U6 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface
U7 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface
U8 Digital Temperature Sensor and Thermal Watchdog with 2-Wire Interface

[JSON]

Files

This project is © Dirk-willem van Gulik, and is published under the terms of the BSD License licence.
