Persistence Of Vision 555 Hack andyjpb

OSHCamp Persistence Of Vision 555 Hack

Recent activity:

  • andyjpb pushed to13 years ago
  • andyjpb updated13 years ago
  • andyjpb pushed to13 years ago
  • andyjpb updated13 years ago
  • andyjpb updated13 years ago
  • andyjpb board processed13 years ago

Tagged with

Description



This project does not have a descriptive photograph.

This is my 555 timer hack made from the excellent :oomlout: electronics kits at the very first OSHCamp on the 27th November 2011.

This circuit was featured in the Flickr long-photograph at the end of Paul Downey's writeup of the day.

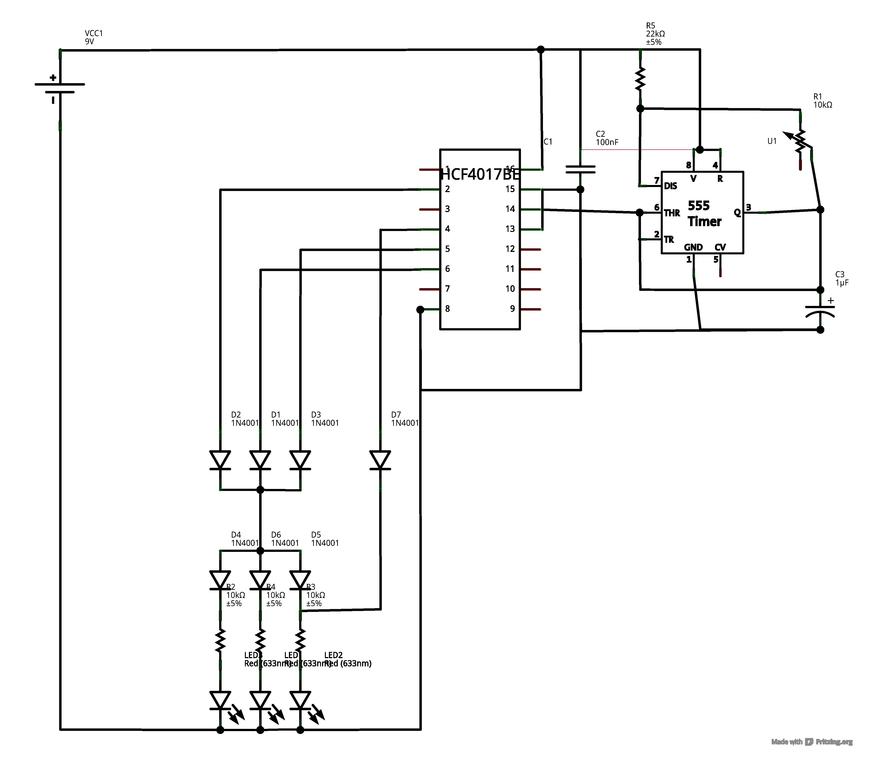

Schematic

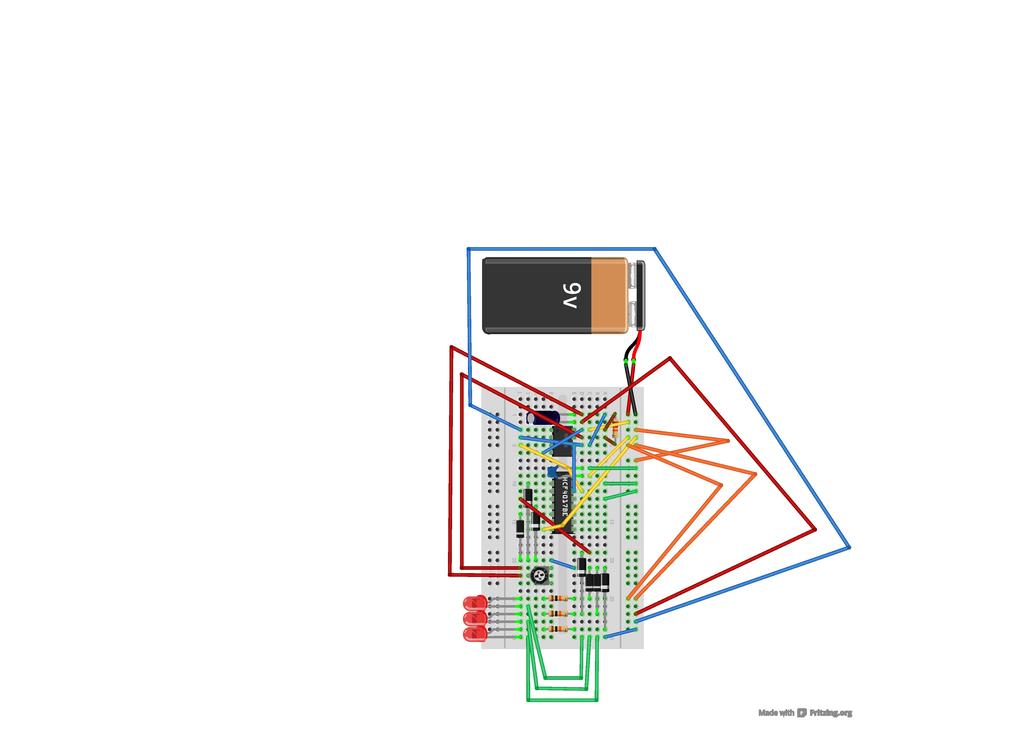

Board

Bill of Materials

This project does not have a bill of materials.

Files

This project is © Andy Bennett <andyjpb@ashurst.eu.org>, 2011, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
