This is a PCB for a Synapse Wireless RF200 module. It provides access to 2 relays and 4 GPIO pins of the module. One of the GIPOs can also serve as an analog in. There are 2 status LEDs as well. It can also provide a usb port to allow a computer to communicate to the module.

Power can be provided by a mini-USB plug or via 2 pin screw terminal.

At the last minute, I added an Xbee footprint, so it should work with both modules.

Schematic

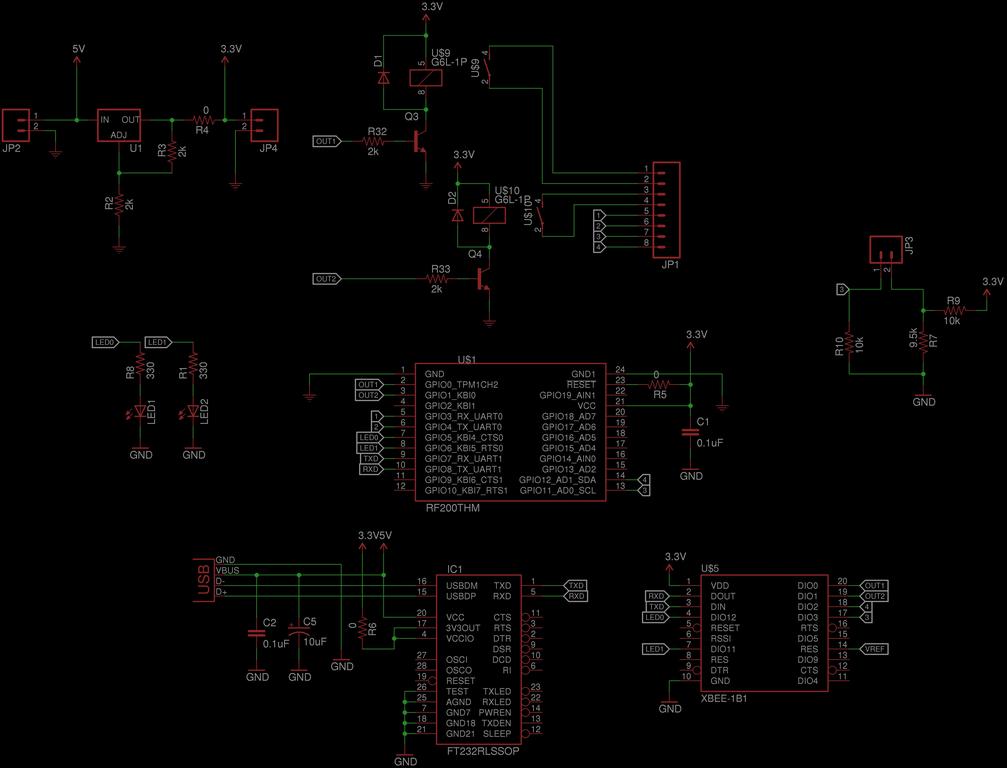

schematic of synapse-relay

Board

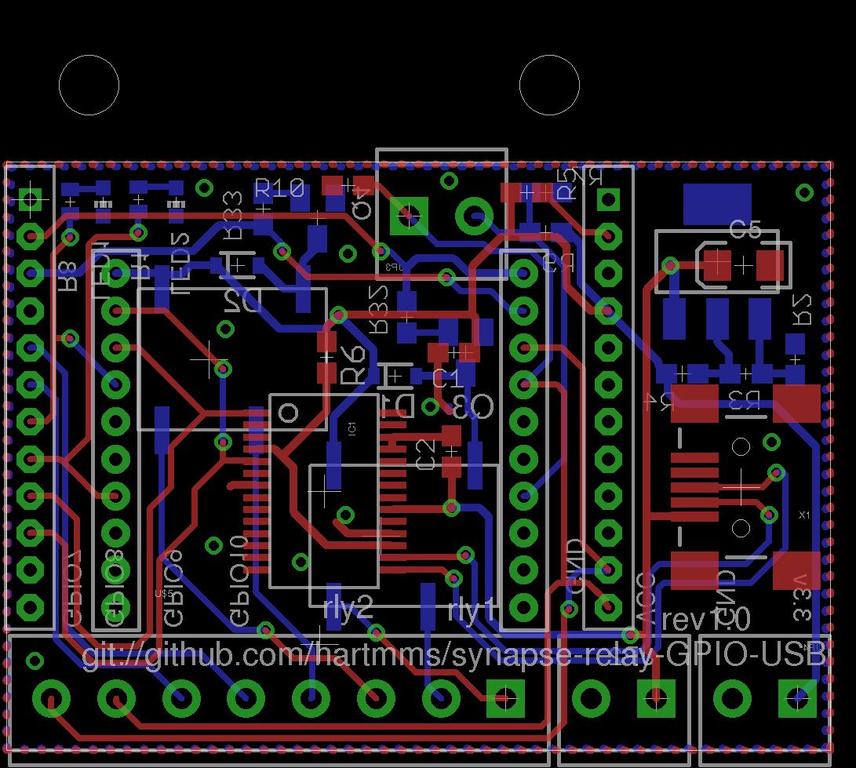

board of synapse-relay

Bill of Materials

Designator Value Description
C1 0.1uF Capacitor
C2 0.1uF Capacitor
C5 10uF Capacitor Polarized
D1 Diode
D2 Diode
IC1 FT232RLSSOP USB UART
JP1 Header 8
JP2 Header 2
JP3 Header 2
JP4 Header 2
LED1 LED
LED2 LED
Q3 Transistor NPN
Q4 Transistor NPN
R1 330 RESISTOR, American symbol
R2 2k Resistor
R3 2k Resistor
R4 0 Resistor
R5 0 Resistor
R6 0 Resistor
R7 9.5k Resistor
R8 330 RESISTOR, American symbol
R9 10k Resistor
R10 10k Resistor
R32 2k Resistor
R33 2k Resistor
U$1 RF200THM
U$5 XBEE-1B1
U$9 G6L-1P SMT relay
U$10 G6L-1P SMT relay
U1 V_REG_317SMD Voltage Regulator
X1 USBSMD USB Connectors
