Description

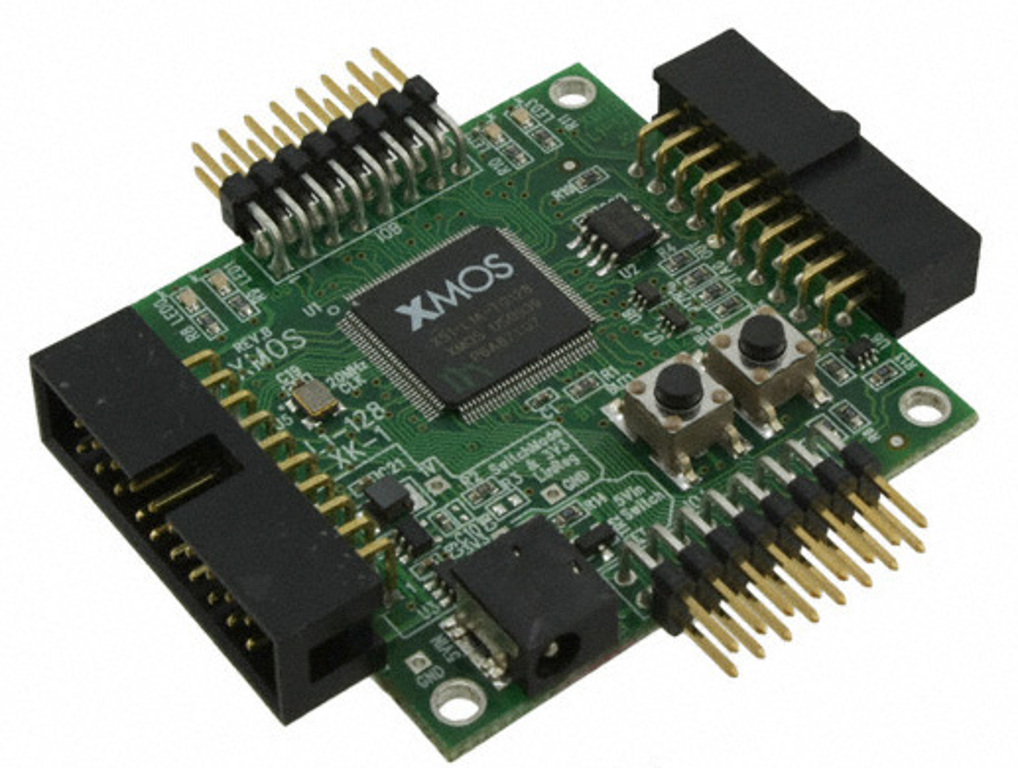

The XK-1A is a low cost development board for exploring event-driven processor designs based on the XS1-L1 device from XMOS. Multiple XK-1A boards can be linked together in a chain and two I/O expansion areas are provided for connecting additional components to the XK-1A. Design files for example add-on boards are available, including an SD card reader, a Bluetooth adapter and a Control Card.

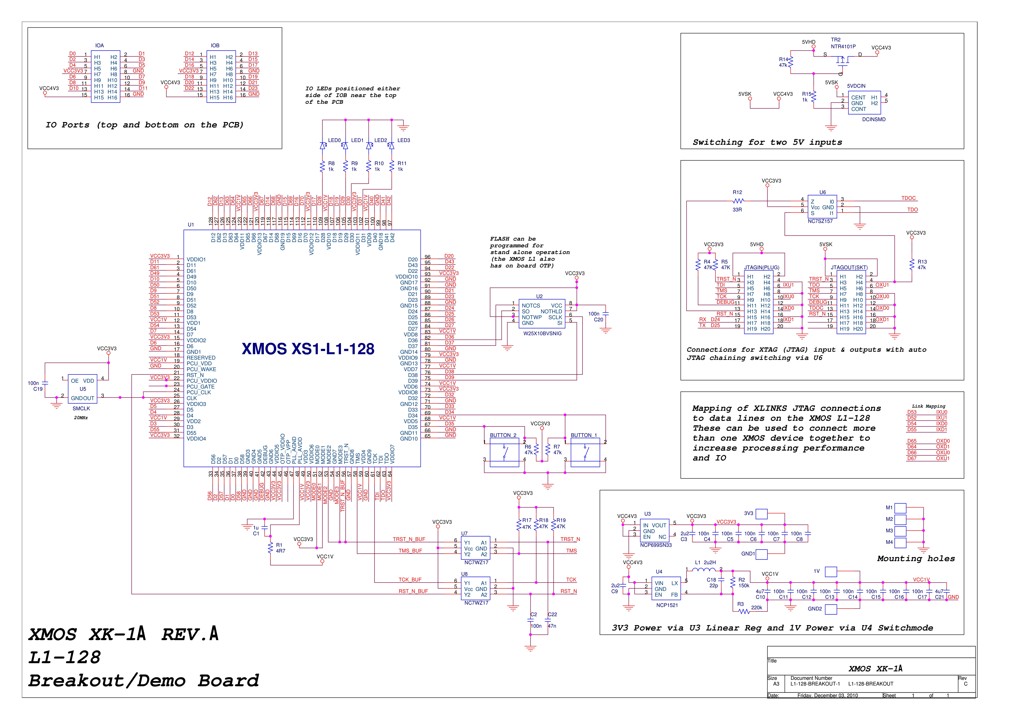

Schematic

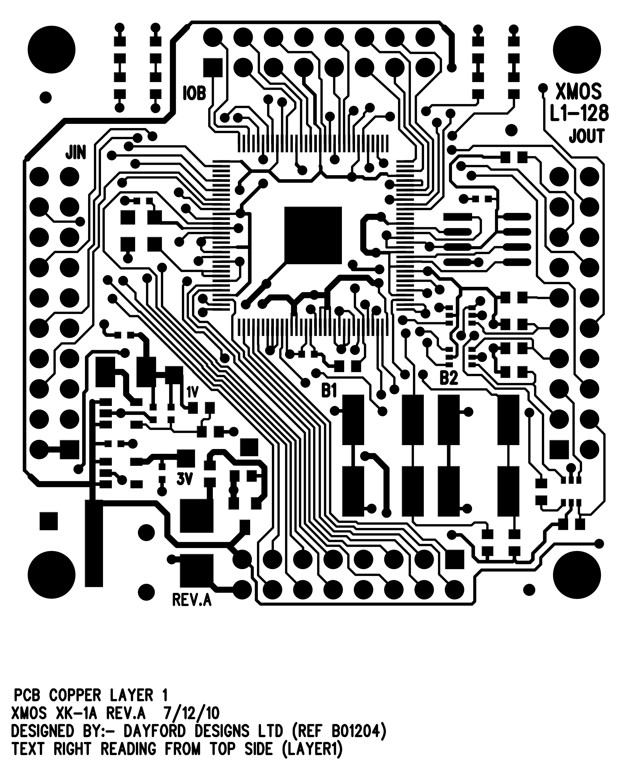

Board
Bill of Materials
This project does not have a bill of materials.
Files
| .solderpad/ | |
| DesignFiles/ | |
| Gerbers/ | |
| Symbols/ | |
| README | 1.6 KB |
| XK-1A-BOM(Rev-A).pdf | 45.2 KB |
| XK-1A-Hardware-Manual(1.0).pdf | 2.2 MB |
| XK-1A-Schematic(Rev-A).pdf | 45.1 KB |
This project is © XMOS Ltd, and is published under the terms of the XMOS Hardware License Agreement licence.
