RS485 Breakout Board vicatcu

Breakout board for the LTC3515

RS485 Breakout

Recent activity:

  • vicatcu schematic processed — 14 years ago
  • vicatcu board processed — 14 years ago
  • vicatcu board received — 14 years ago
  • vicatcu schematic received — 14 years ago
  • vicatcu pushed to — 14 years ago

Tagged with

Description



This project does not have a descriptive photograph.

Isolated UART to RS-485 Trasceiver Breakout Board Supports Full and Half Duplex operation with a slider switch. Includes 120-ohm termination resistors.

Schematic

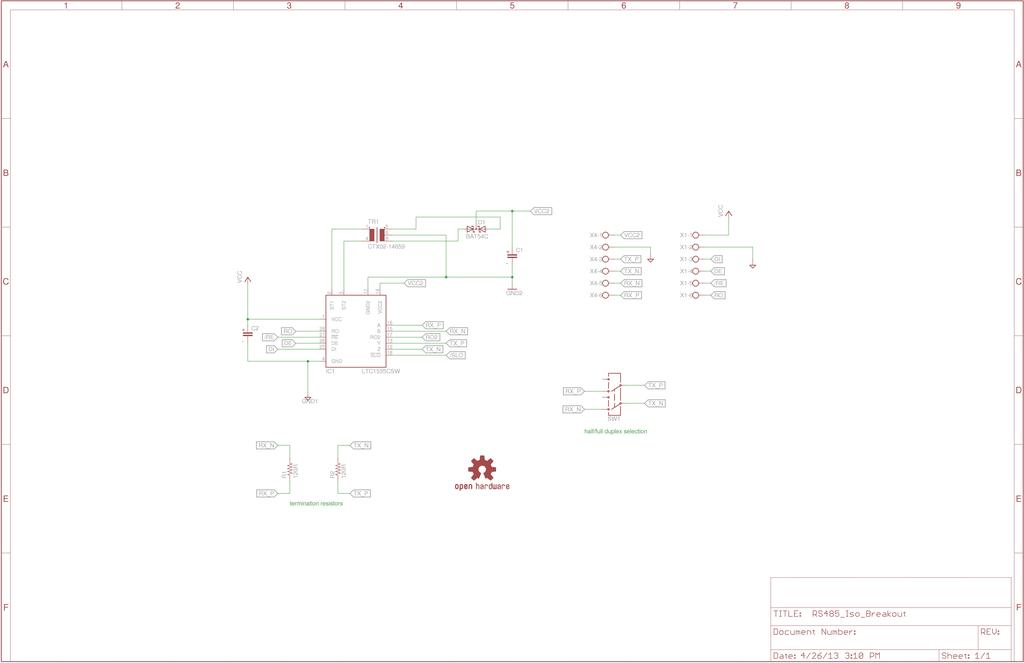

schematic of RS485 Breakout Board

Board

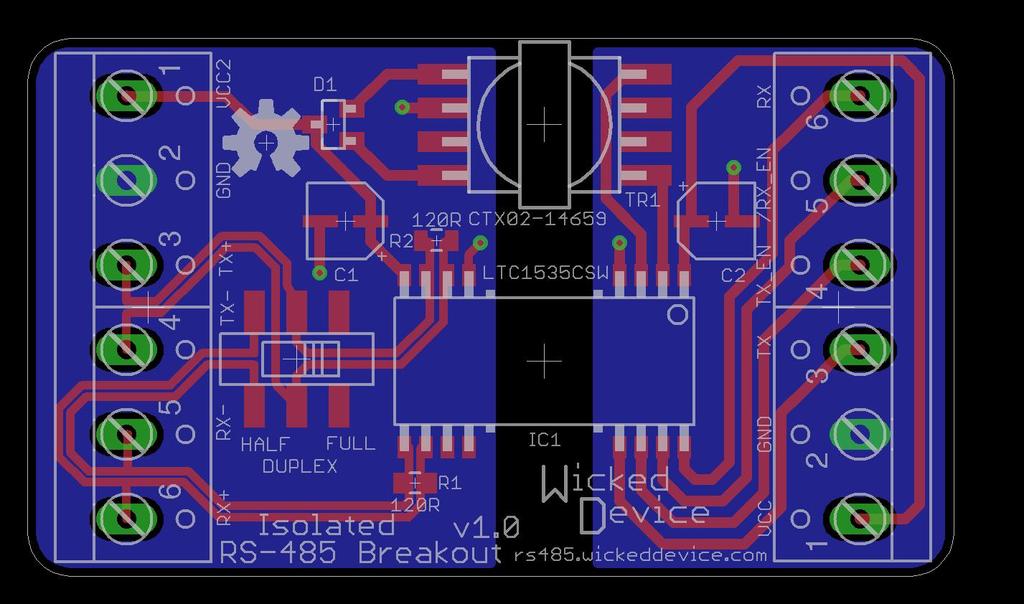

board of RS485 Breakout Board

Bill of Materials

This project does not have a bill of materials.

Files

Last commit: added VCC to terminal blocks — vicatcu, 14 years ago

.solderpad/
board.brd59.0 KB
schematic.sch340.9 KB
