Nanode Gateway v7.2 vicatcu

Arduino Compatible + Ethernet + RTC + SRAM + RF + SD

Recent activity:

  • vicatcu schematic processed — 14 years ago
  • vicatcu board processed — 14 years ago
  • vicatcu board received — 14 years ago
  • vicatcu schematic received — 14 years ago
  • vicatcu pushed to — 14 years ago

No tags defined

Description



This project does not have a descriptive photograph.

This board integrates the ATMega328 microcontroller with the ENC28J60 Ethernet controller (just like the classic Nanode), and also adds support for an RTC, a microSD slot, an RFM12B radio and an external SRAM. This is a great set of features for being the basis of a RF to Ethernet intermediary (i.e. a Gateway).

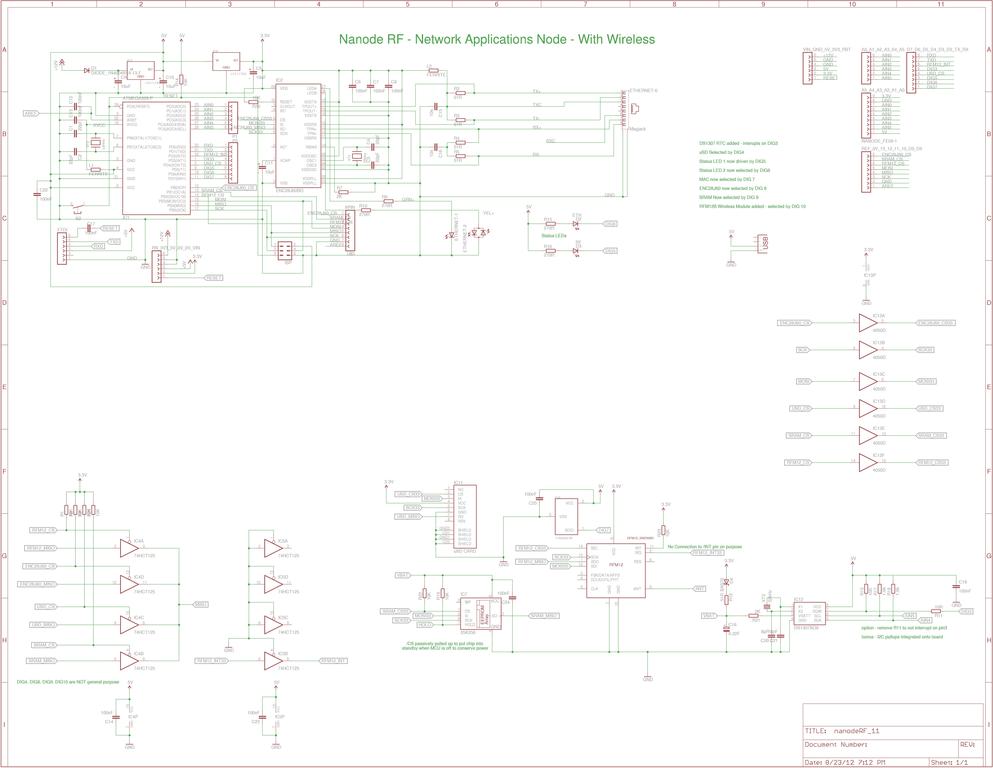

Schematic

schematic of Nanode Gateway v7.2

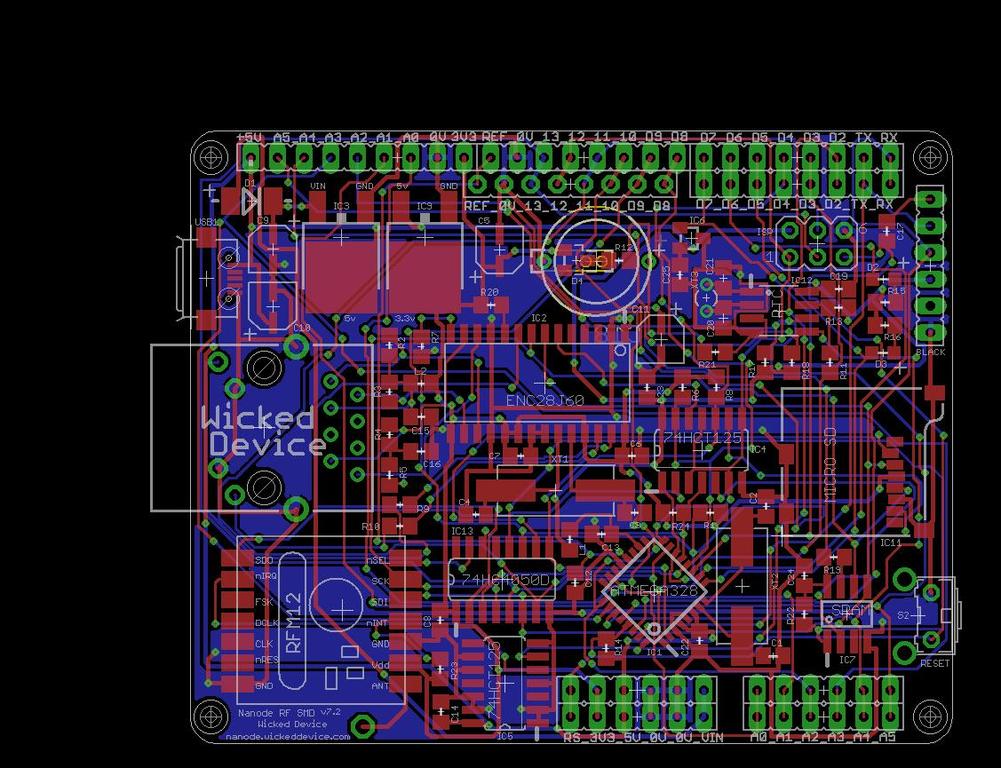

Board

board of Nanode Gateway v7.2

Bill of Materials

This project does not have a bill of materials.

Files

Last commit: added solderpad metadata — vicatcu, 14 years ago

.solderpad/
nanode_gw072.brd342.1 KB
nanode_gw072.sch991.3 KB

This project is © Wicked Device LLC, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
