AQE Sensor Interface Shield vicatcu

Air Quality Egg Shield for Nanode

Air Quality Egg

Recent activity:

  • vicatcu pushed to — 14 years ago
  • vicatcu pushed to — 14 years ago
  • vicatcu schematic processed — 14 years ago
  • vicatcu board processed — 14 years ago
  • vicatcu board received — 14 years ago

Tagged with

Description



This project does not have a descriptive photograph.

Support circuitry for the E2V MICS 2710 NO2 and MICS 5525 CO sensors, DHT22 combined temperature and relative humidity sensor, PCA9540B 2:1 I2C Multiplexer, and connectors for Egg Bus add on modules.

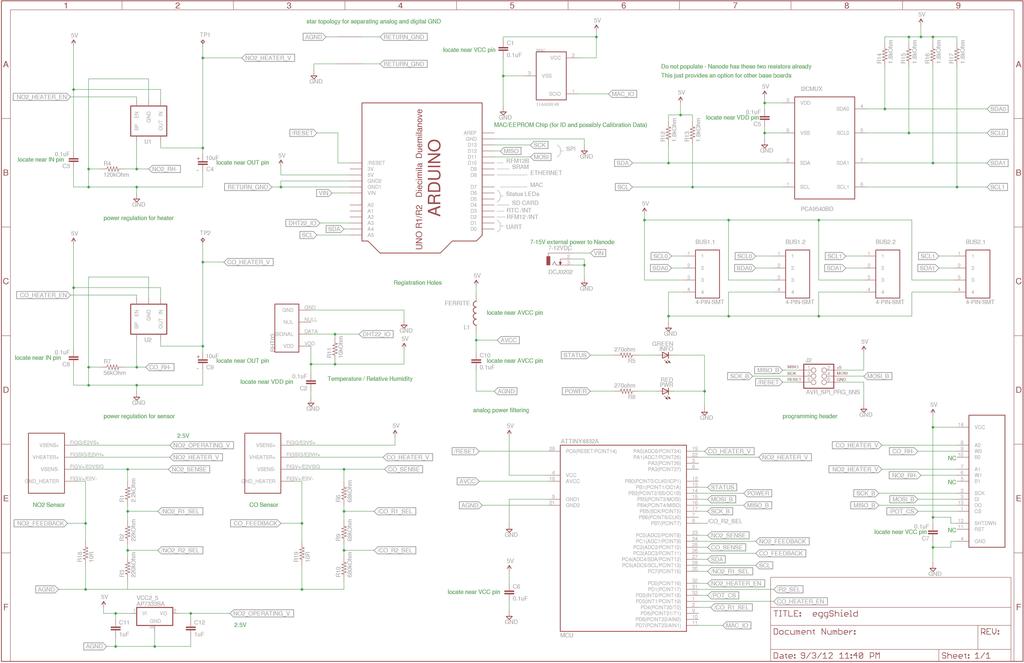

Schematic

schematic of AQE Sensor Interface Shield

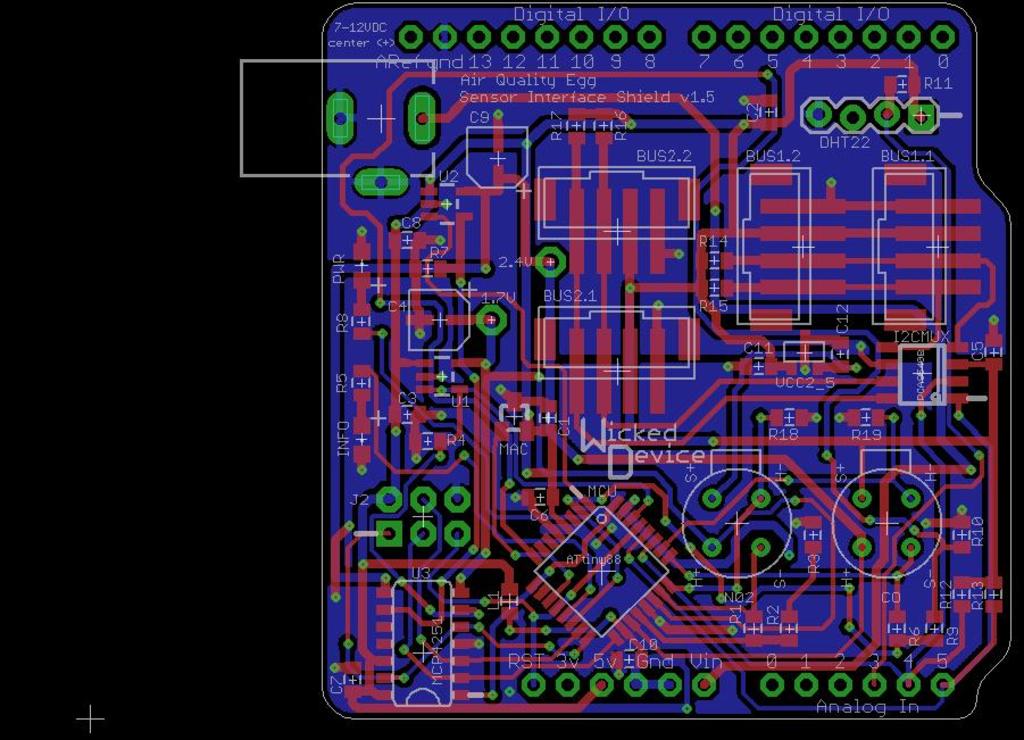

Board

board of AQE Sensor Interface Shield

Bill of Materials

This project does not have a bill of materials.

Files

Last commit: updated the library to provide real units through table interpolation and added more examples — vicatcu, 14 years ago

.solderpad/
AirQualityEggNanode/
AQEWkshop/
dev/
libraries/
PCB/
readme.textile696 B

This project is © Wicked Device LLC, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
