LeafLabs Maple Mini solderpad

An Arduino-compatible microcontroller board with a 72MHz 32bit ARM Cortex M3

leaflabs.com/devices/#Maple-Mini

Recent activity:

  • 9600 pushed — 15 years ago
  • 9600 pushed — 15 years ago
  • psd pushed — 15 years ago
  • psd pushed — 15 years ago
  • 9600 pushed — 15 years ago

Tagged with

Description

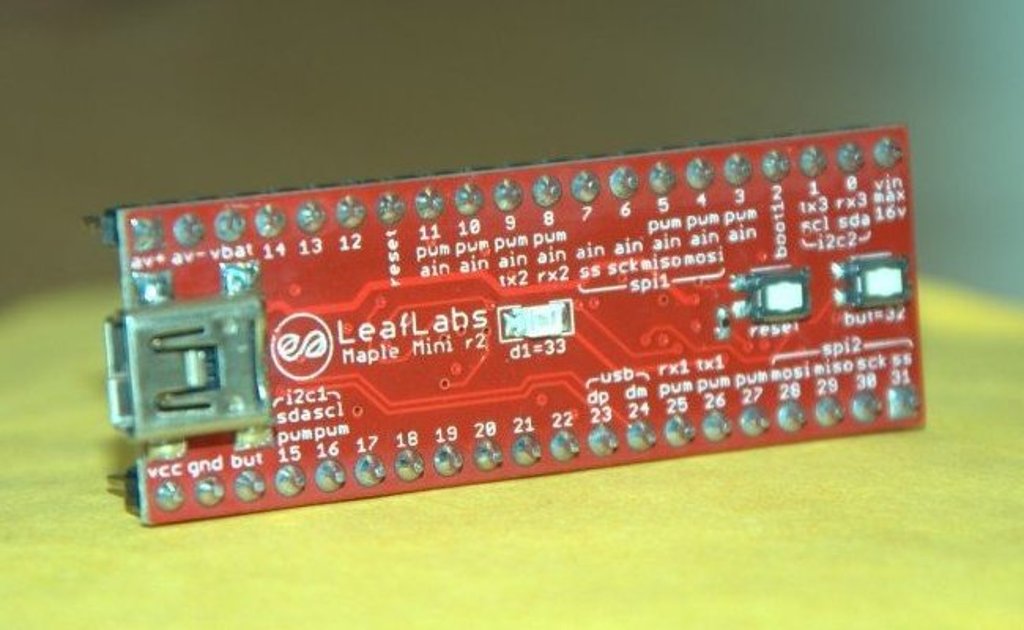

photo of LeafLabs Maple Mini

Maple Mini is a “breadboard-able” PCB for applications where space is limited, or simply if a breadboard is the preferred prototyping tool. Smaller than a stick of gum, Maple Mini features a smaller, 48-pin STM32 with the same speed and memory as the Maple. Maple Mini also sports a complete silkscreen, making it uniquely detailed for a board its size.

Schematic

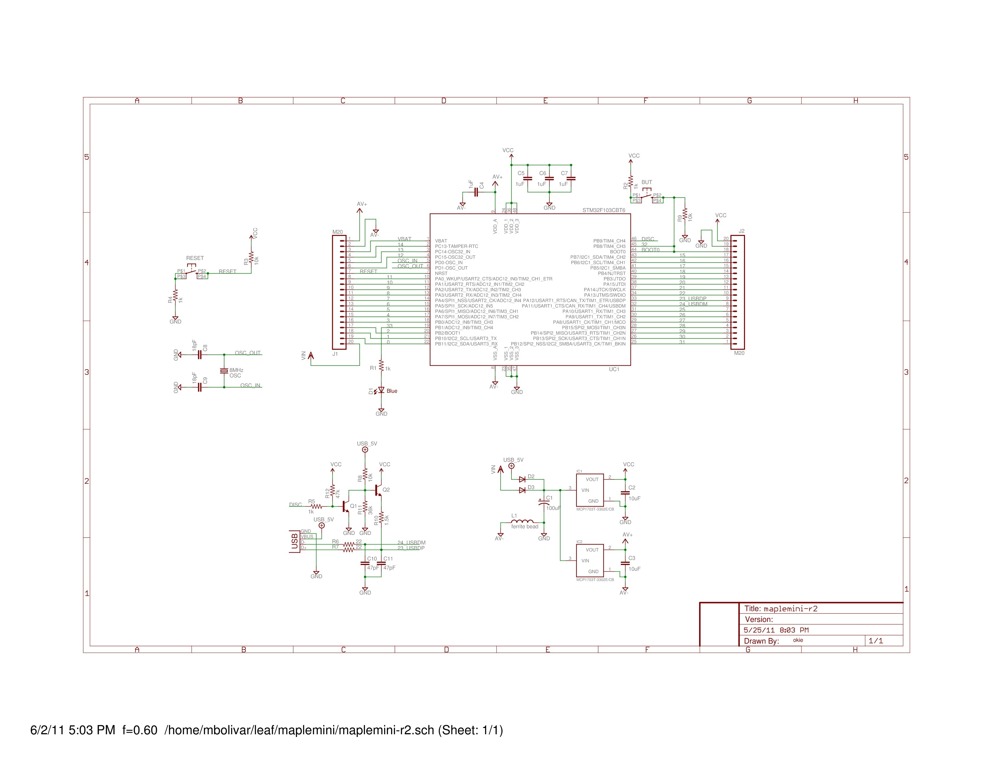

schematic of LeafLabs Maple Mini

Board

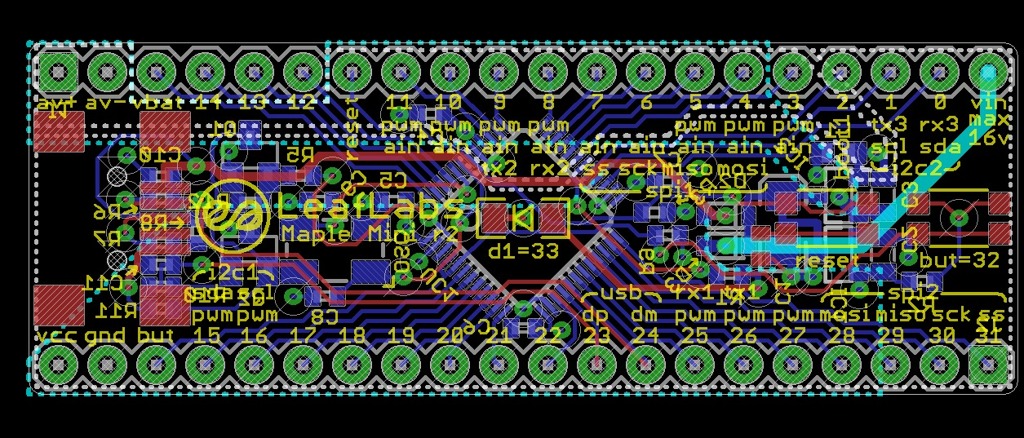

board of LeafLabs Maple Mini

Bill of Materials

This project does not have a bill of materials.

Files

Last commit: Added BoM — 9600, 15 years ago

.solderpad/
maplemini-r2.brd84.3 KB
maplemini-r2.cam8.9 KB
maplemini-r2.pdf24.3 KB
maplemini-r2.sch84.3 KB
README96 B

This project is © LeafLabs, LLC, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
