CERN ARMadillo solderpad
Small multi-purpose ARM-based piggy-back PCB with Linux support
www.ohwr.org/projects/armadilloDescription

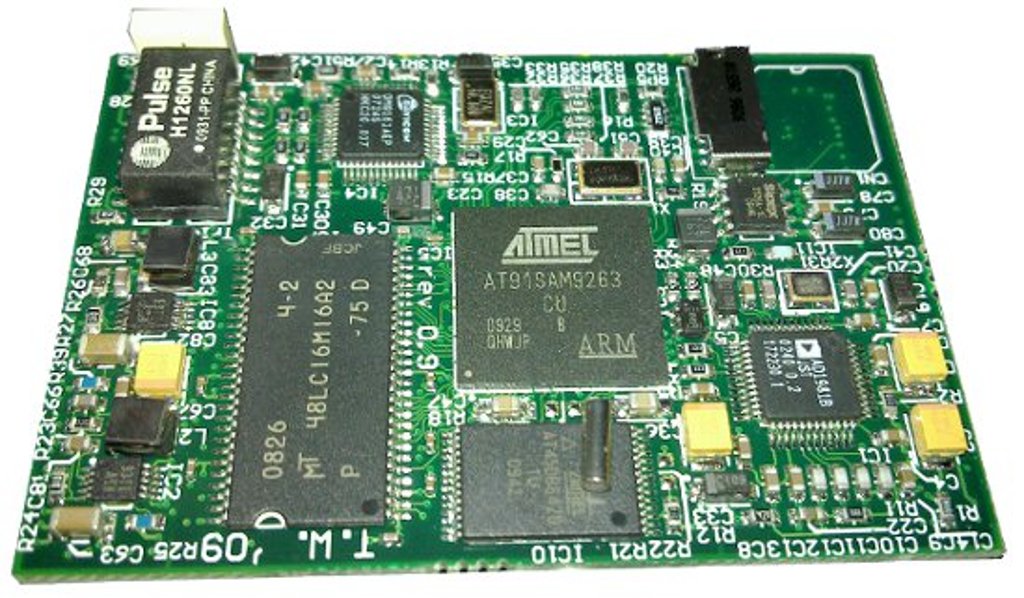

ARMadillo is a small footprint single board ARM-based computer running Linux with:
- Atmel's AT91SAM9263 CPU with ARM926EJ-S core running at 200 MHz
- 64 MB SDRAM running at 133 MHz
- 8 MB serial DataFlash memory
- microSD card slot for extra storage
On the bottom side of PCB, there are two dense 60-way pinheads, containing:
- 2x USB 2.0 host (full-speed)
- 1x USB 1.1 slave (full-speed)
- 10/100 MBps Ethernet (with integrated transformer)
- graphical LCD display interface
- stereo audio input/output
- lots of GPIO pins, UARTs, I2C, SPI, SSC interfaces
.... and all that fits on a 65x45 mm PCB which makes ARMadillo a perfect solution for all network and multimedia-enabled applications.

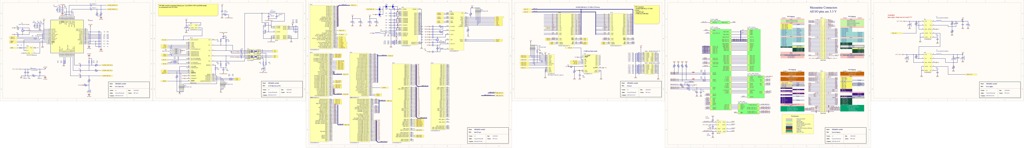

Schematic

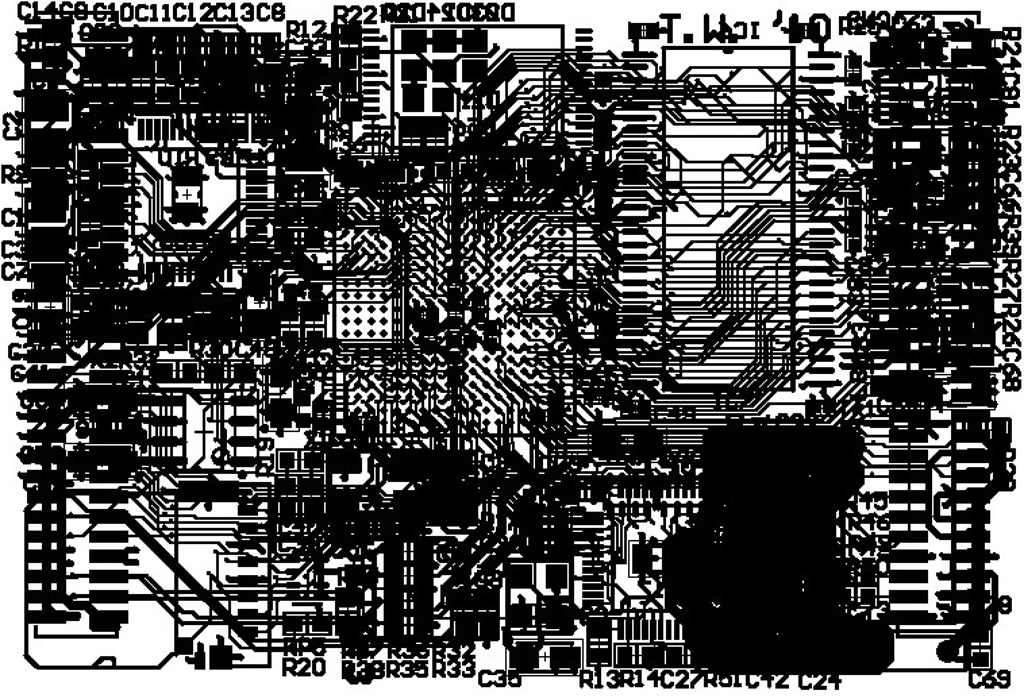

Board
Bill of Materials
This project does not have a bill of materials.
Files
| .solderpad/ | |
| Gerber/ | |
| ac97_codec.SchDoc | 435.5 KB |
| armadillo.OutJob | 2.2 KB |
| armadillo.PcbDoc | 1.7 MB |
| armadillo.pdf | 1.4 MB |
| armadillo.PrjPcb | 84.5 KB |
| CPU_100m_ethernet.SchDoc | 351.5 KB |
| CPU_io_ports.SchDoc | 1.3 MB |
| CPU_memory.SchDoc | 297.0 KB |
| MAIN.SchDoc | 347.5 KB |
| power_supply.SchDoc | 154.5 KB |
This project is © CERN, and is published under the terms of the MIT License licence.
