Bug Labs BUGusb solderpad

USB 2.0 port to accommodate 3rd-party USB dongles and keyfobs

wiki.buglabs.net/index.php/Hardware:BUGusb_Module

Recent activity:

  • 9600 updated — 15 years ago
  • psd pushed — 15 years ago
  • psd pushed — 15 years ago
  • psd pushed — 15 years ago
  • 9600 pushed — 15 years ago

Tagged with

Description

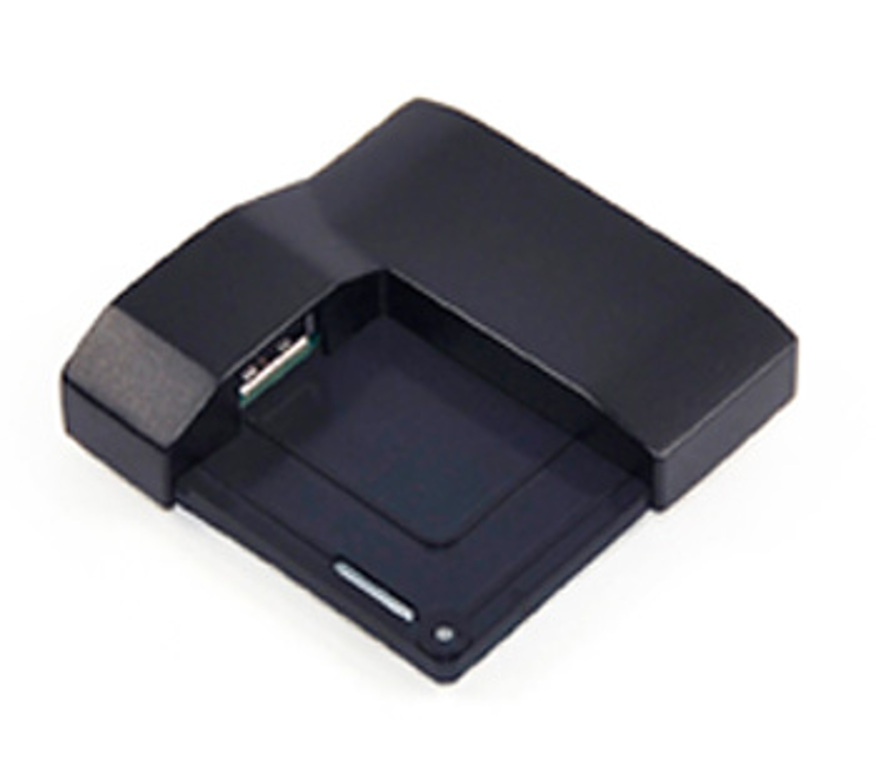

photo of Bug Labs BUGusb

BUGusb offers a USB 2.0 port plus unique packaging to accommodate 3rd-party USB dongles and keyfobs. Prototype new device capabilities with your BUG as soon as they’re released!

Schematic

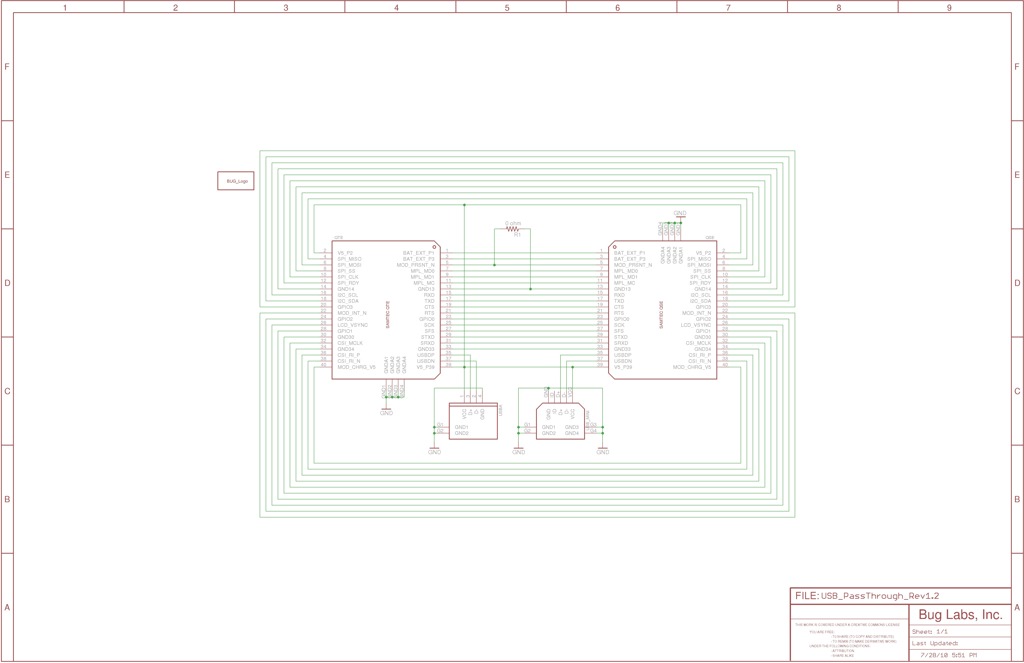

schematic of Bug Labs BUGusb

Board

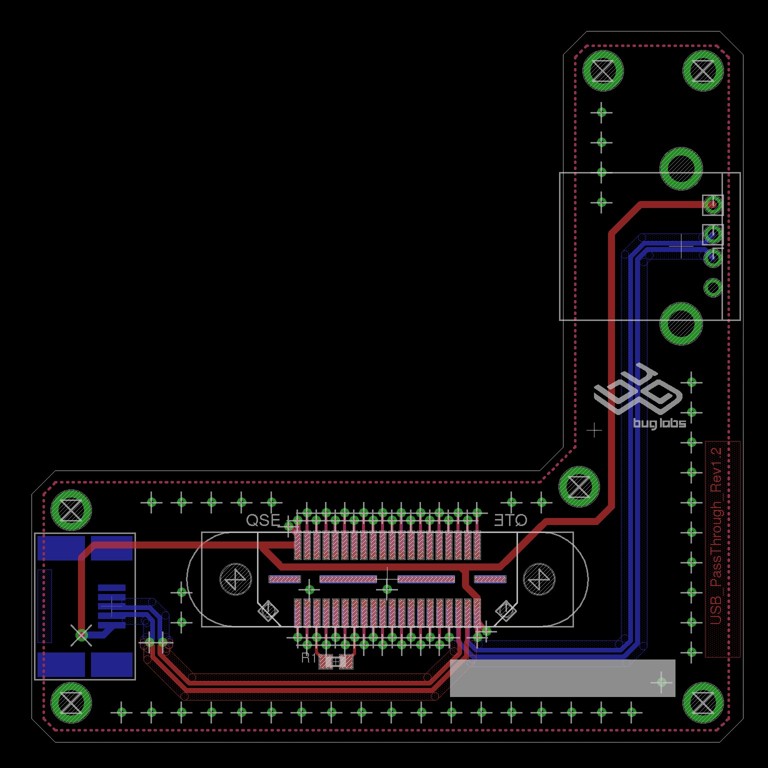

board of Bug Labs BUGusb

Bill of Materials

Designator Value Description
QSE BUG_SAMTEC_QSE
QTE BUG_SAMTEC_QTE
R1 0 ohm RESISTOR, American symbol
U$1 BUG_LOGO_SM
USBA MOLEX_67643_1910
USB_MINI MOLEX_56579_0576

[JSON]

Files

Last commit: rebuilt bom — psd, 15 years ago

.solderpad/
Gerber/
USB_PassThrough_Rev1.2_EAGLE/
USB_PassThrough_Rev1.2_BOM.xls7.5 KB

This project is © Bug Labs Inc., and is published under the terms of the GNU General Public License, version 3 licence.
