Bug Labs BUGstinger solderpad

BUGstinger is BUG’s version of a developer’s docking station

wiki.buglabs.net/index.php/Hardware:BUGstinger_Module

Recent activity:

  • 9600 updated — 15 years ago
  • psd pushed — 15 years ago
  • 9600 pushed — 15 years ago
  • 9600 pushed — 15 years ago

Tagged with

Description

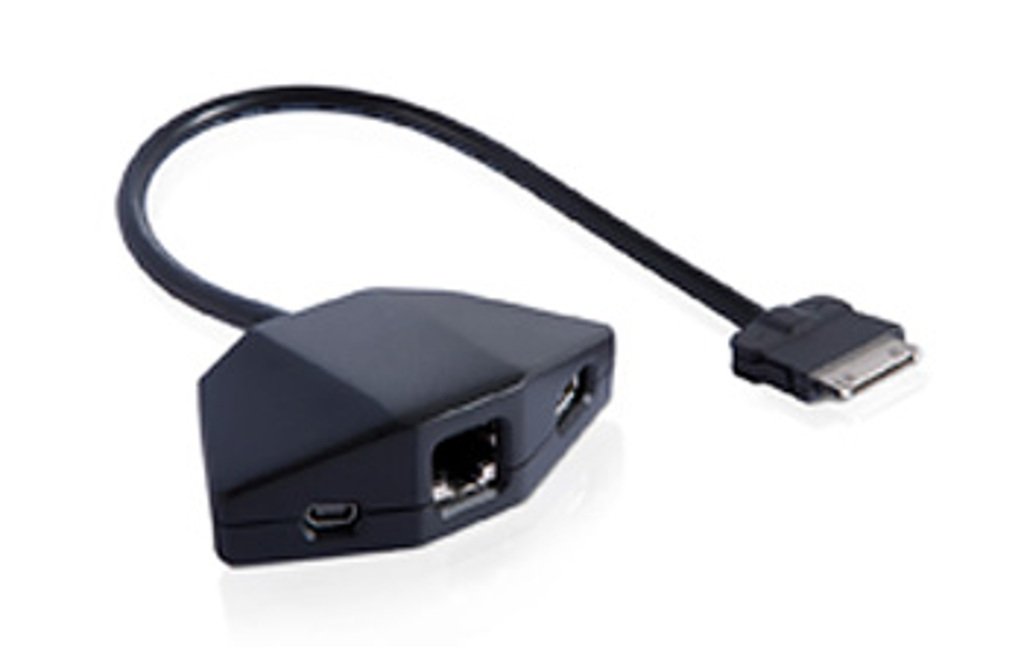

photo of Bug Labs BUGstinger

BUGstinger is BUG’s version of a developer’s docking station. It’s a port replicator that offers 10/100BASE-T Ethernet, a full-size female USB port and Mini-USB (for serial over USB to your computer). It’s used primarily to step-through and debug application code, but is also handy for connecting to peripherals.

Schematic

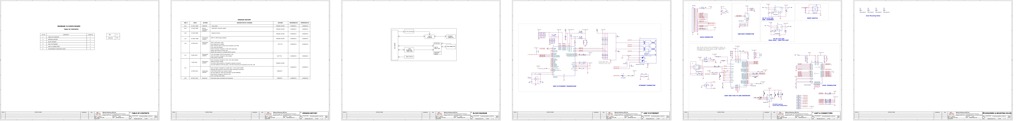

schematic of Bug Labs BUGstinger

Board

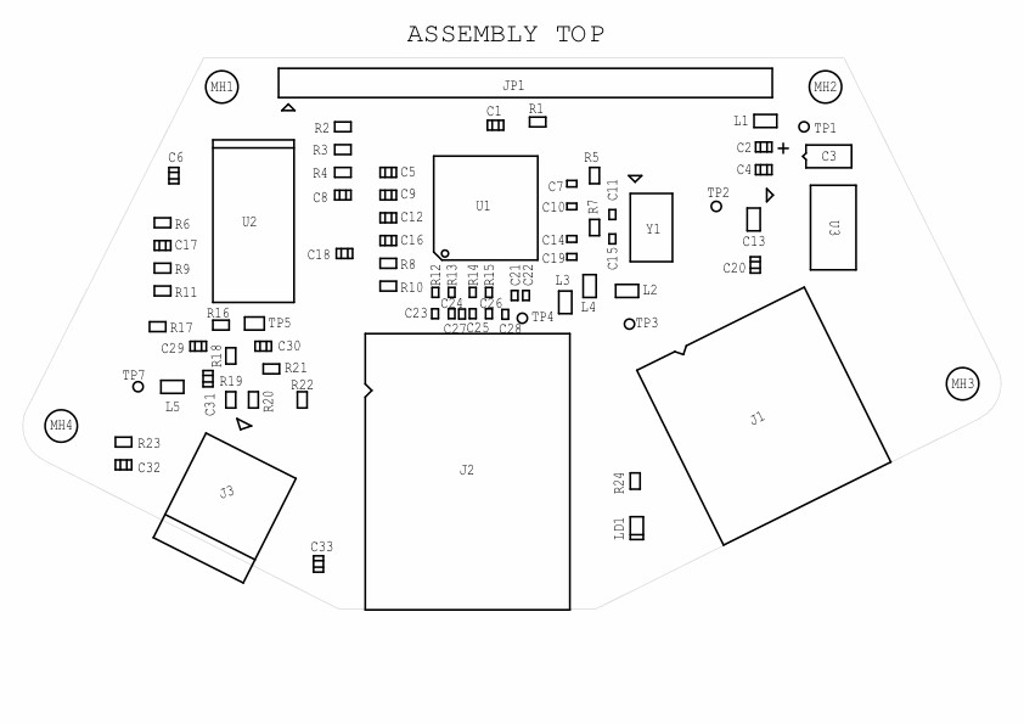

board of Bug Labs BUGstinger

Bill of Materials

This project does not have a bill of materials.

This project is © Bug Labs Inc., and is published under the terms of the GNU General Public License, version 3 licence.
