Blinking LED psd

a 555 timer in astable operating mode

Recent activity:

  • psd board processed — 15 years ago
  • psd schematic processed — 15 years ago
  • psd board received — 15 years ago
  • psd schematic received — 15 years ago
  • psd pushed to — 15 years ago

Tagged with

Description

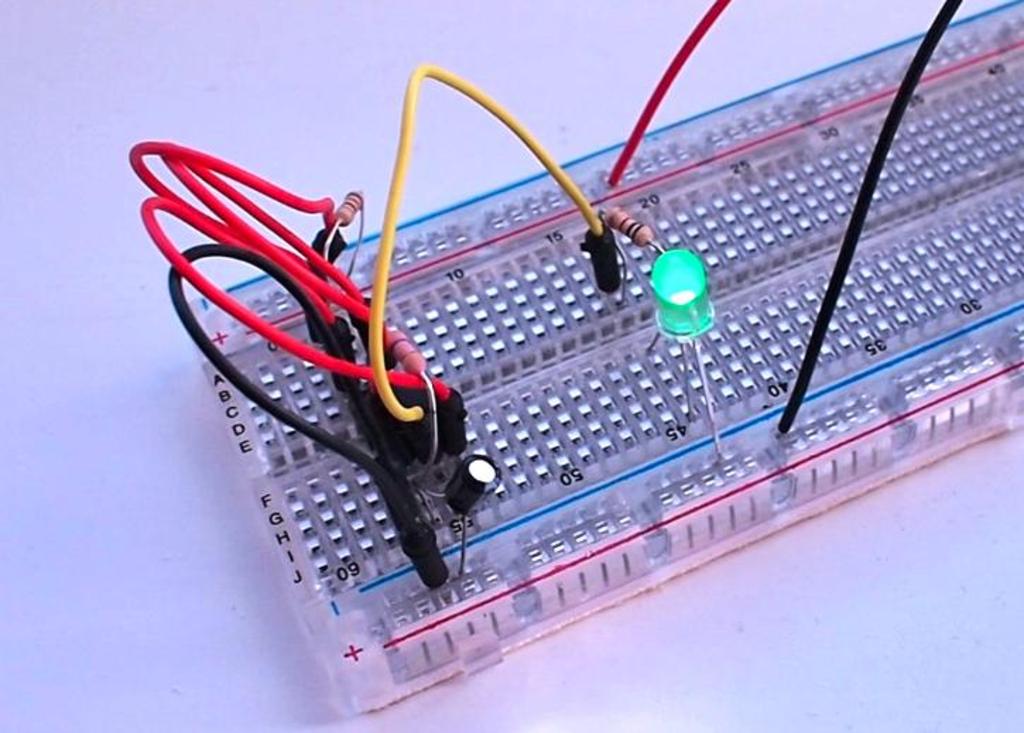

photo of Blinking LED

This is effectively the "hello world" of the 555 Timer, and the basis of a number of other circuits. The speed and duration of the blinking are governed by the values [R1] and [R2].

video

Schematic

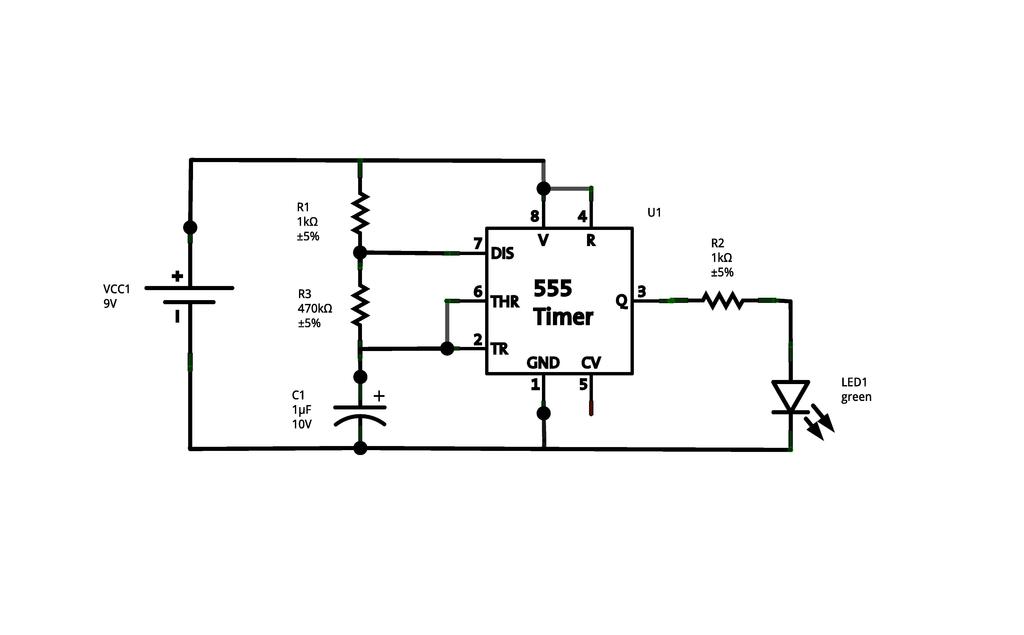

schematic of Blinking LED

Board

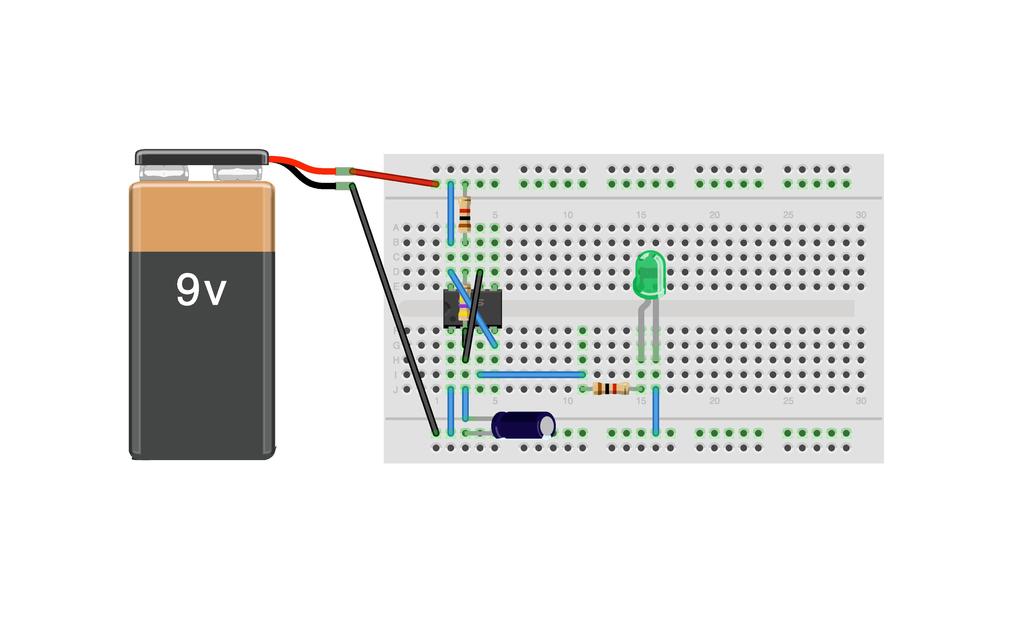

board of Blinking LED

Bill of Materials

Designator Value Description
C1 1µF Electrolytic capacitor; 1µF; voltage 10V
R1 1kΩ Resistor
R2 1kΩ Resistor
R3 470kΩ Resistor
LED1 LED-05G 5mm LED green
U1 NE555 555 Timer
VCC1 9V 9V battery, PP3 or similar

[JSON]

Files

Last commit: cropped pdfs in preview — psd, 15 years ago

.solderpad/
blinking-led_bom.html2.9 KB
blinking-led_netlist.xml2.5 KB
blinking-led.fz185.2 KB

This project is published under the terms of the BSD License licence.
