TinyTX3 Wireless Sensor Node nathanchantrell
An ATtiny84 and RFM12B based wireless sensor node
nathan.chantrell.net/tinytx/Recent activity:
- nathanchantrell board processed — 14 years ago
- nathanchantrell board received — 14 years ago
- nathanchantrell photo received — 14 years ago
- nathanchantrell pushed to — 14 years ago
- nathanchantrell updated — 14 years ago
Description
A small board for wireless sensor projects using the ATtiny84 microcontroller.
Uses the RFM12B wireless transceiver (433MHz, 868MHz or 915MHz) for compatibility with OpenEnergyMonitor, Nanode and Jeenodes.

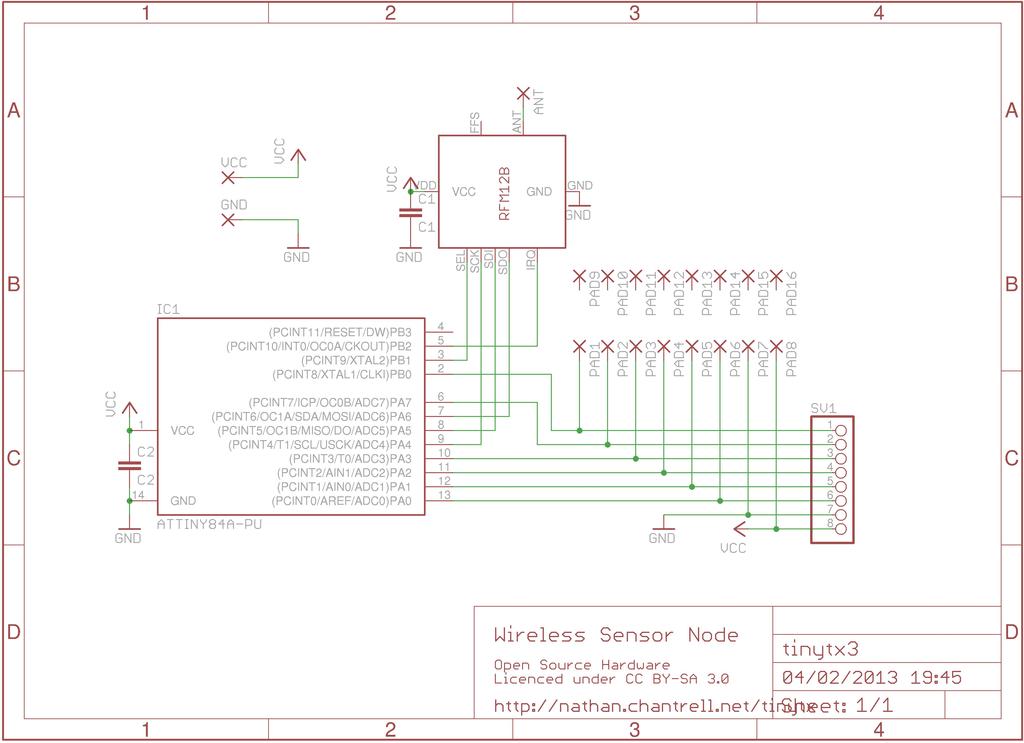

Schematic

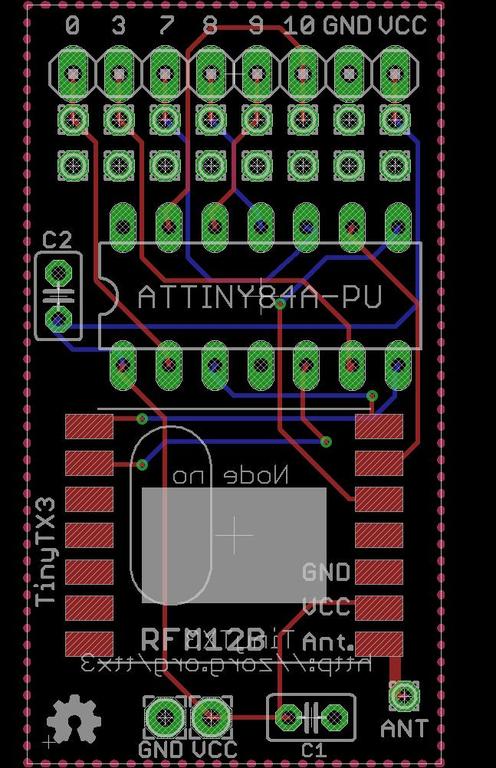

Board
Bill of Materials
This project does not have a bill of materials.
Files
| .solderpad/ | |
| tinytx3.brd | 74.3 KB |
| tinytx3.sch | 206.7 KB |
This project is © Nathan Chantrell, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
