JeeLabs JeeLink v3 jcw
USB stick with an Atmel ATmega processor and a HopeRF wireless radio
jeelabs.net/projects/hardware/wiki/JeeLinkDescription

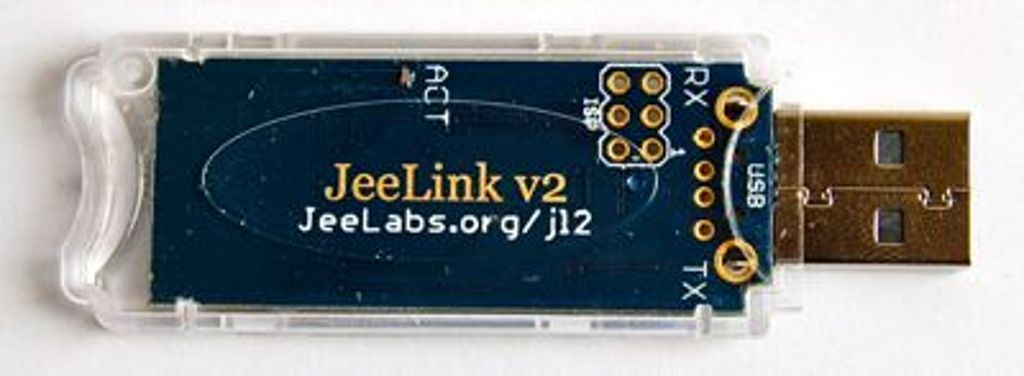

The JeeLink is a small module in the shape of a USB stick, with an Atmel ATmega processor and a HopeRF wireless radio.

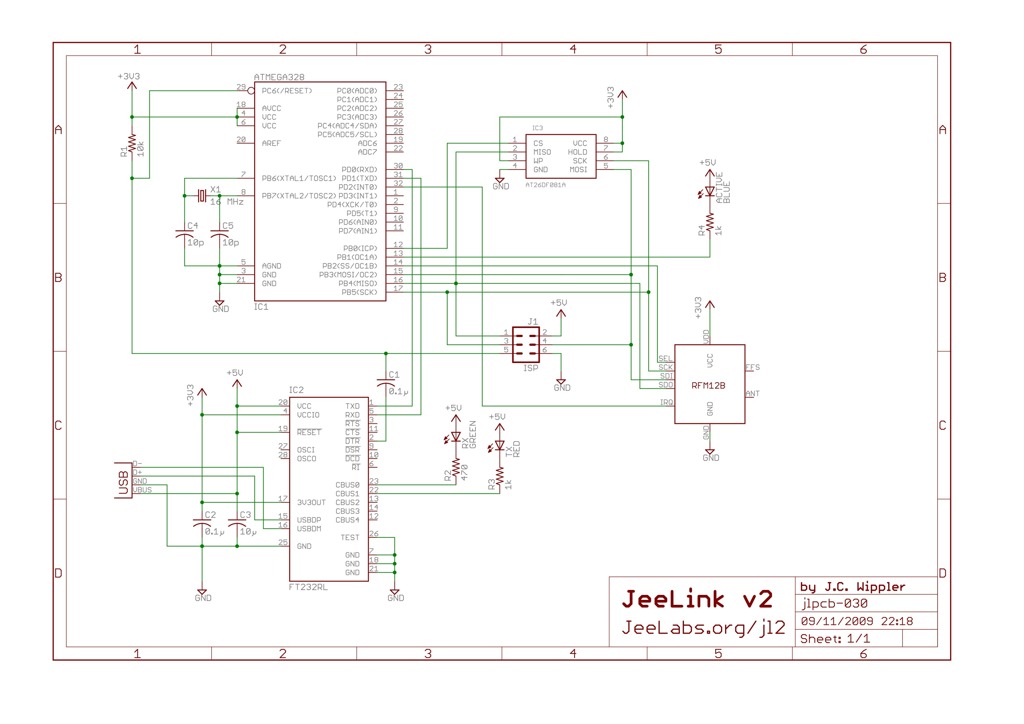

Schematic

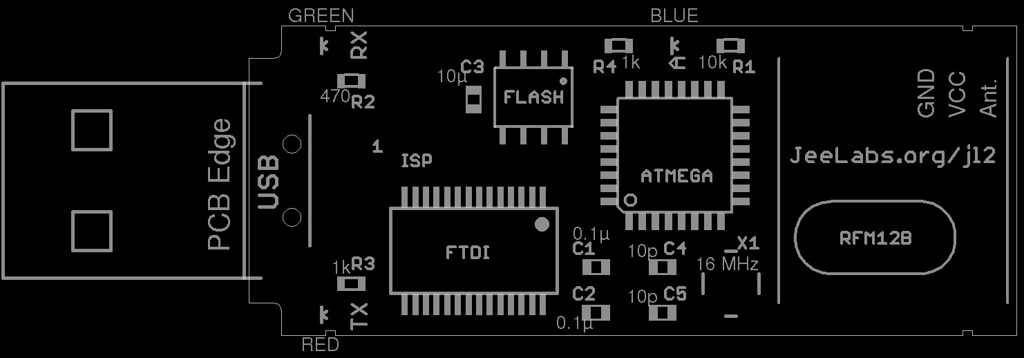

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| ACTIVE | BLUE | LEDs |
| C1 | 0.1µ | CAPACITOR, American symbol |
| C2 | 0.1µ | CAPACITOR, American symbol |
| C3 | 10µ | CAPACITOR, American symbol |
| C4 | 10p | CAPACITOR, American symbol |
| C5 | 10p | CAPACITOR, American symbol |
| IC1 | ATMEGA328 | |
| IC2 | FT232RL | Source: http://www.ftdichip.com/Documents/DataSheets/DS_FT232R_v104.pdf |
| IC3 | AT26DF081A | 8pin SPI Flash series x25xx. Works with devices like W25X32 and BR25L32 |
| ISP | J1 | PIN HEADER |
| R1 | 10k | RESISTOR, American symbol |
| R2 | 470 | RESISTOR, American symbol |
| R3 | 1k | RESISTOR, American symbol |
| R4 | 1k | RESISTOR, American symbol |
| RFM12B | RFM12B | |
| RX | GREEN | LEDs |
| TX | RED | LEDs |
| USB | USB-A-H | USB Connectors |
| X1 | 16 MHz | Crystals |
[JSON]
Files
| .solderpad/ | |
| jlpcb-030.brd | 241.3 KB |
| jlpcb-030.sch | 129.8 KB |
This project is © Jean-Claude Wippler, and is published under the terms of the Creative Commons Attribution 3.0 Unported licence.
