folknology's avatar

Slice Cobbler folknology

A way to link Slicekit to a breadboard

www.folknology.com/slicecobbler

Recent activity:

Tagged with

Description

photo of Slice Cobbler

Slice boards are to small to put breadboards because of their width restrictions, however you can cobble you slice pins from the Slicekit to your breadboard providing breakout using some headers, IDC cable and this.

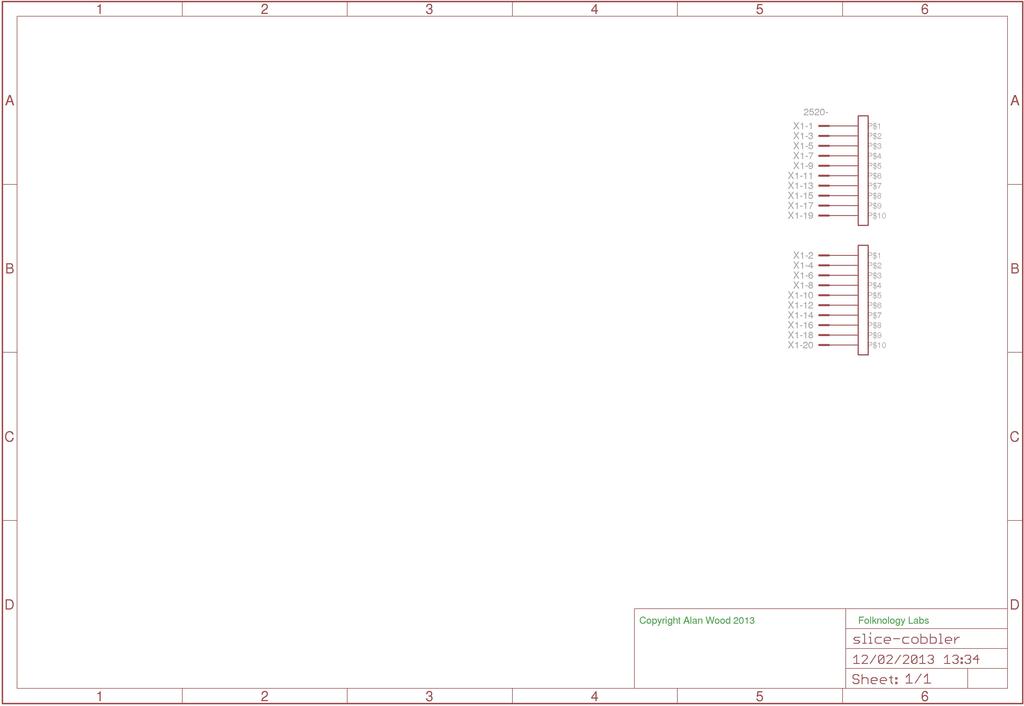

Schematic

schematic of Slice Cobbler

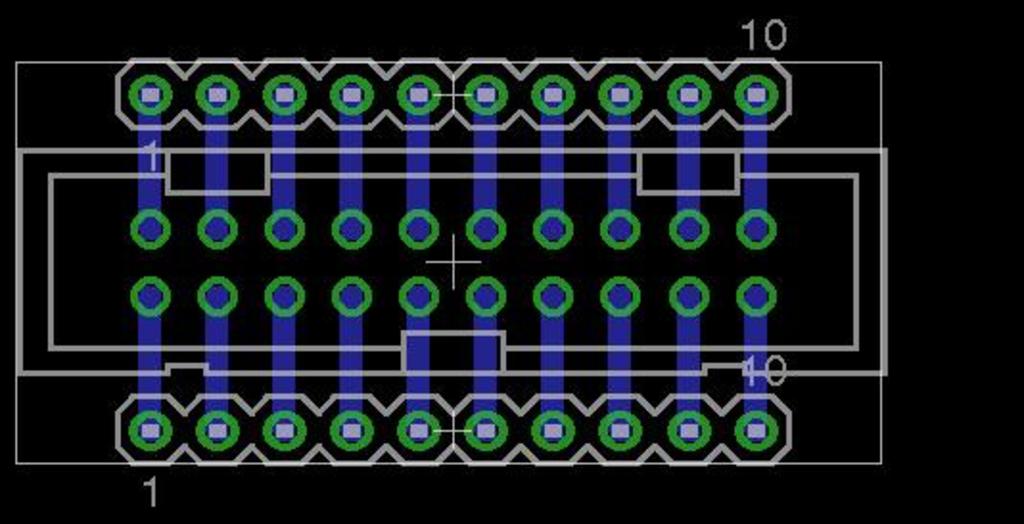

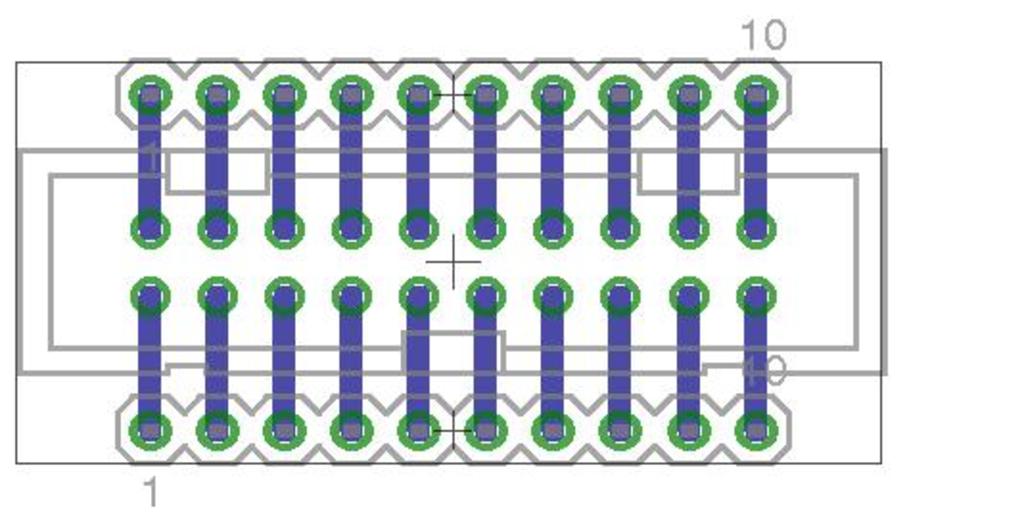

Board

board of Slice Cobbler

Bill of Materials

This project does not have a bill of materials.

Files

Last commit: Updated silk — Folknology, 14 years ago

.solderpad/
changes.txt0 B
contrib.txt0 B
Licence.txt7.9 KB
product.txt0 B
slice-cobbler.brd26.2 KB
slice-cobbler.sch33.6 KB

This project is © Alan Wood, and is published under the terms of the CERN Open Hardware Licence, version 1.1 licence.
