A hybrid motion controller for Xi

Fluxxi

Recent activity:

Tagged with

Description

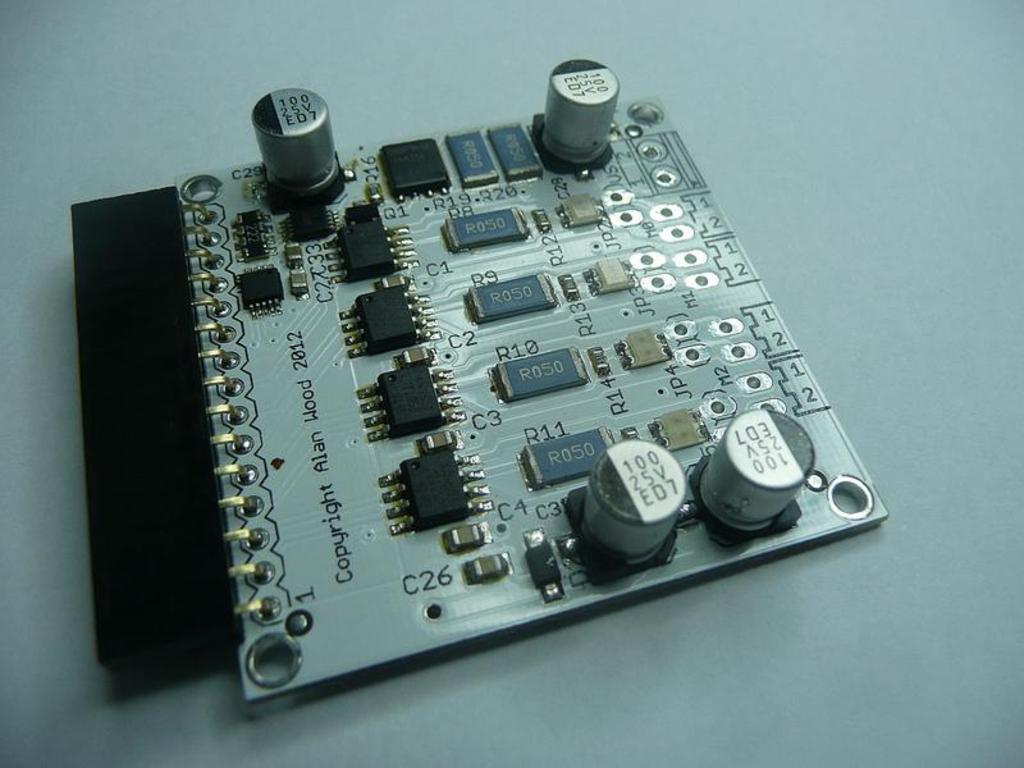

photo of Fluxxi

This hybrid Xi module can control 2 bipolar stepper motors or 4 bipolar DC motors or than even combination. Configuration is done at the software driver level as required by the software.

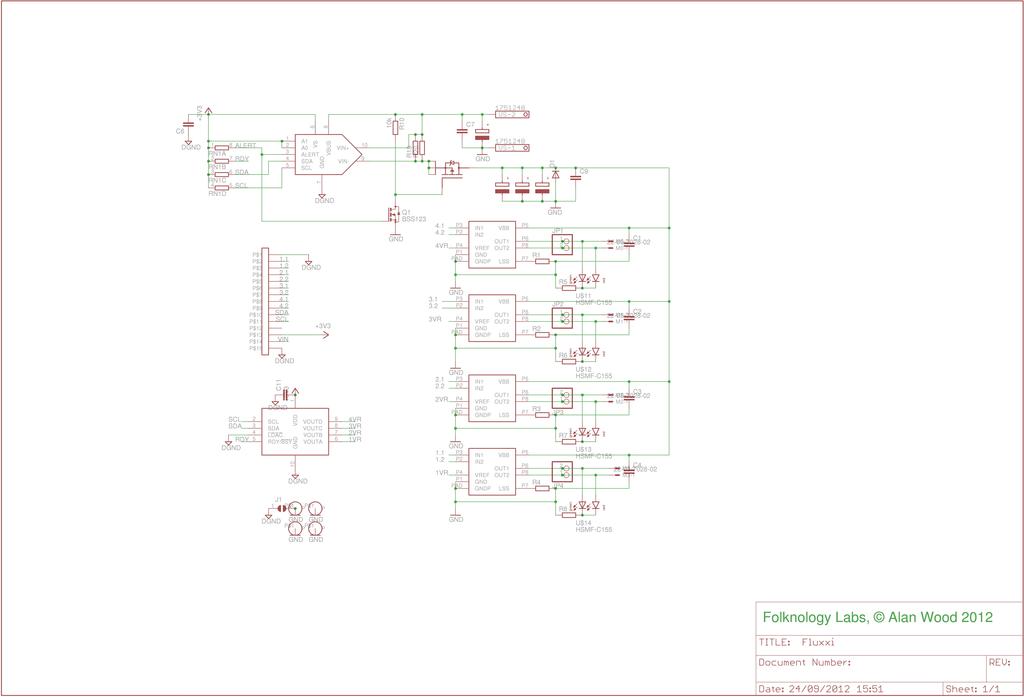

Schematic

schematic of Fluxxi

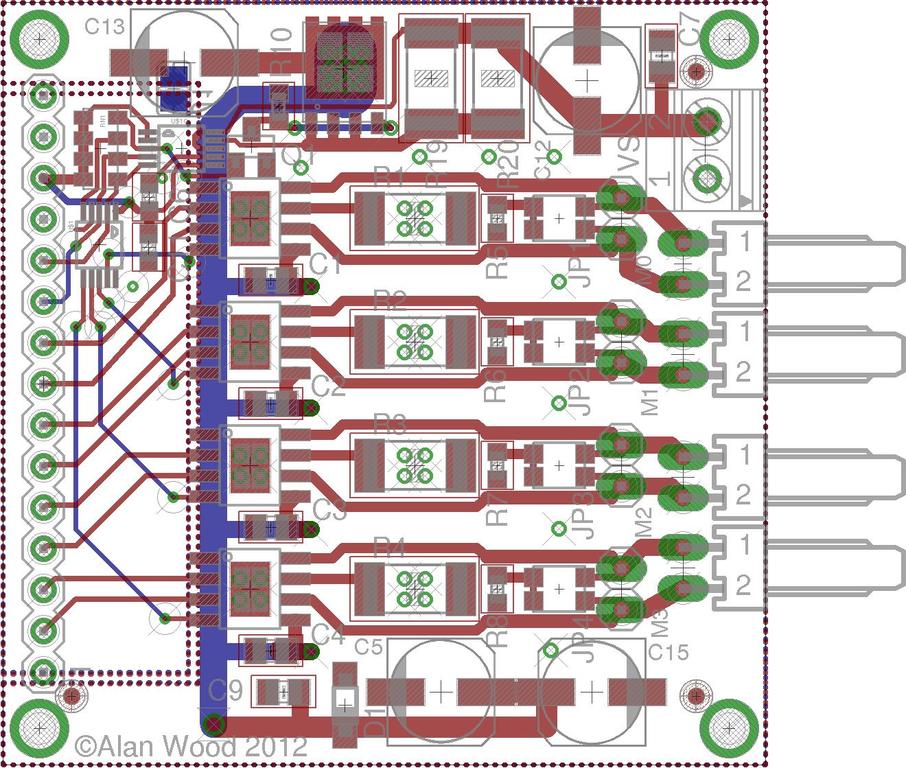

Board

board of Fluxxi

Bill of Materials

This project does not have a bill of materials.

Files

Last commit: First Public Commit for Fluxxi — Folknology, 14 years ago

.solderpad/
changes.txt0 B
contrib.txt0 B
Fluxxi.brd99.0 KB
Fluxxi.sch477.1 KB
Licence.txt7.9 KB
product.txt0 B

This project is © Alan Wood, and is published under the terms of the CERN Open Hardware Licence, version 1.1 licence.
