SRF Multi purpose sensor andrewdlindsay

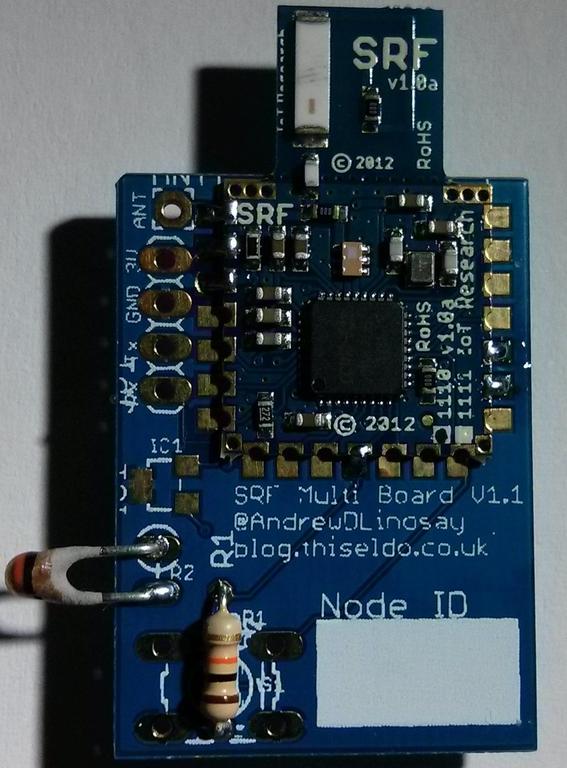

Ciseco SRF based thermistor and switch sensor
Recent activity:
- andrewdlindsay bom received — 13 years ago
- andrewdlindsay pushed to — 13 years ago
- andrewdlindsay board processed — 13 years ago
- andrewdlindsay schematic processed — 13 years ago
- andrewdlindsay board received — 13 years ago
Description
Ciseco SRF based thermistor and switch sensor based on Ciseco SRF using LLAP communications. Options for thermistor, LDR, pushbutton, hall-effect sensor and tilt switches.

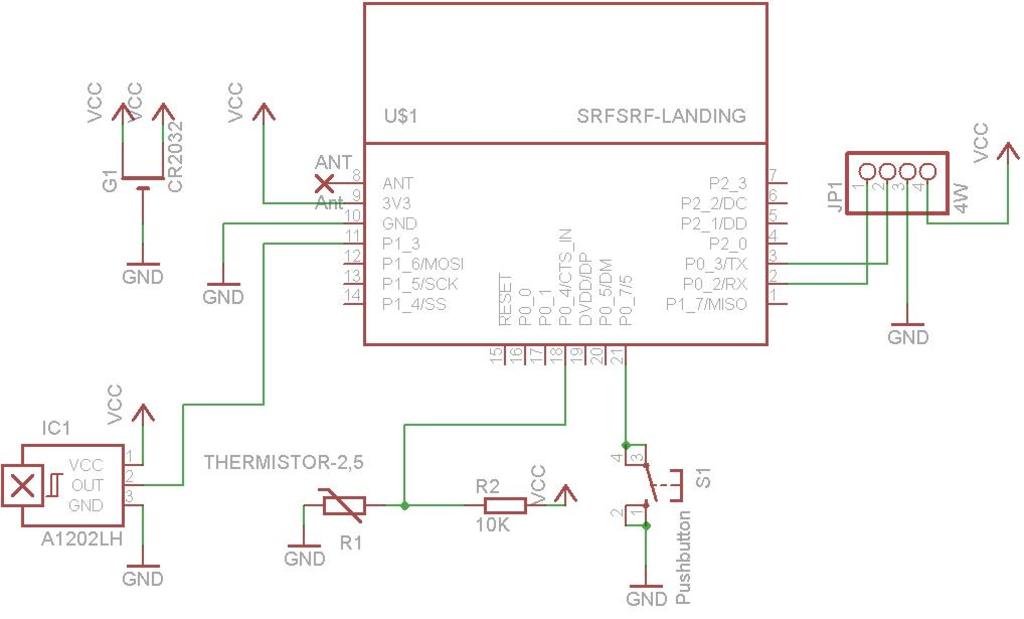

Schematic

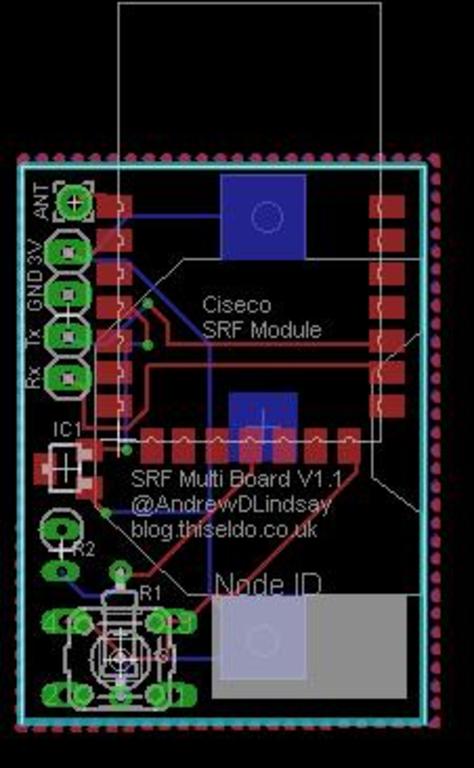

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| ANT | Ant | THROUGH-HOLE PAD |
| G1 | CR2032 | |
| IC1 | A1202LH | Hall-effect bipolar switch |
| JP1 | 4W | PIN HEADER |
| R1 | THERMISTOR-2,5 | THERMISTOR |
| R2 | 10K | RESISTOR, European symbol |
| S1 | Pushbutton | OMRON SWITCH |
| U$1 | SRFSRF-LANDING | SRF Wireless UART Serial Data Module. |
[JSON]
Files
| .solderpad/ | |
| SRFBoardTempButton.brd | 75.6 KB |
| SRFBoardTempButton.sch | 191.5 KB |
This project is © Andrew Lindsay, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
