RFu Display andrewdlindsay
Ciseco RFu-328 and TFT LCD display
Simple Wireless Display using Ciseco RFu-328Recent activity:
- andrewdlindsay bom received — 13 years ago
- andrewdlindsay pushed to — 13 years ago
- andrewdlindsay bom received — 13 years ago
- andrewdlindsay pushed to — 13 years ago
- andrewdlindsay bom invalid — 13 years ago
Description

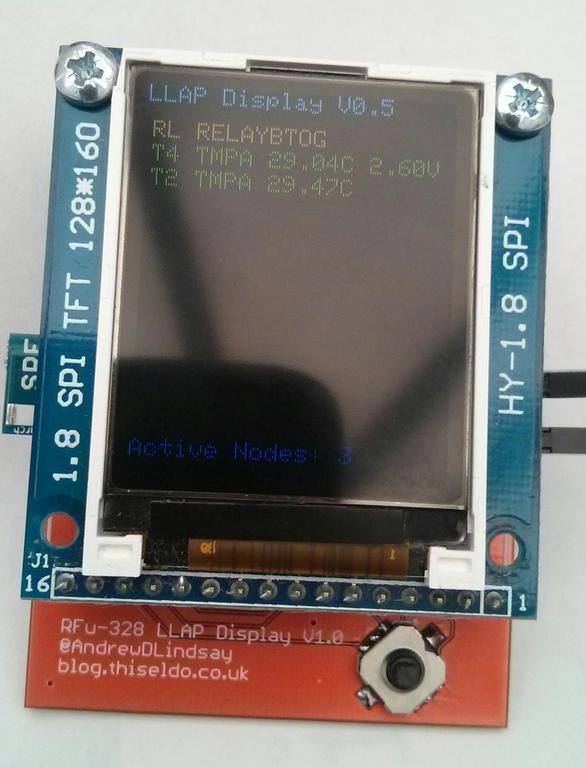

Simple battery powered wireless display using Ciseco radio module, 1.8" LCD display and 5 way tactile switch.

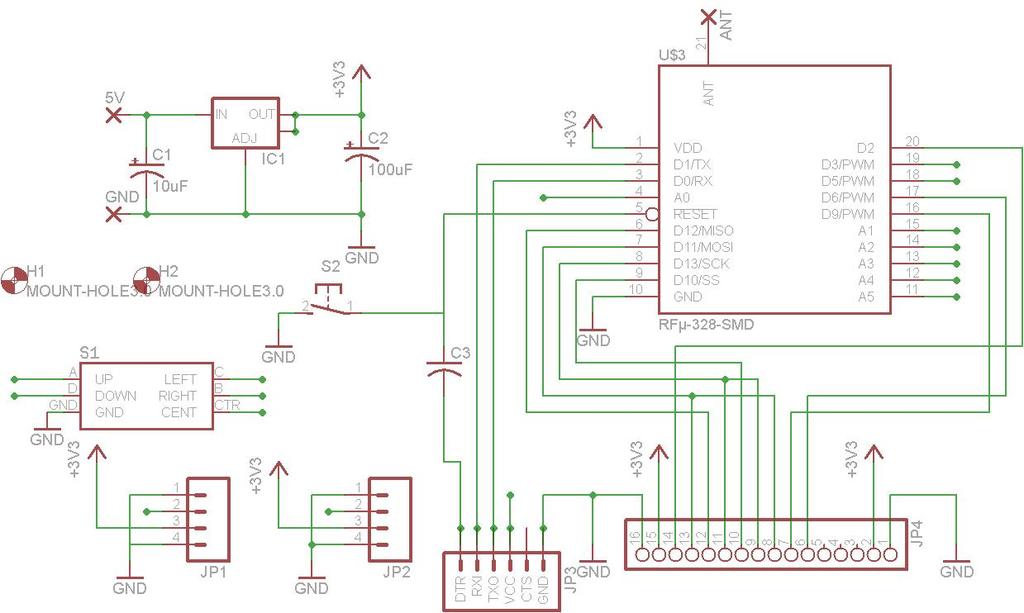

Schematic

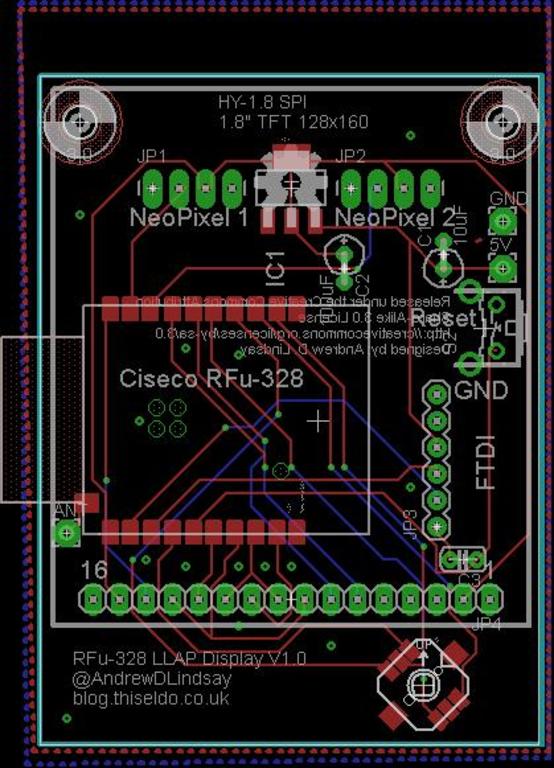

Board
Bill of Materials
| Designator | Value | Description |
|---|---|---|
| 5V | THROUGH-HOLE PAD | |
| ANT | THROUGH-HOLE PAD | |
| C1 | 10uF | POLARIZED CAPACITOR, American symbol |
| C2 | 100uF | POLARIZED CAPACITOR, American symbol |
| C3 | 100nF | CAPACITOR, American symbol |
| GND | THROUGH-HOLE PAD | |
| H1 | MOUNT-HOLE3.0 | MOUNTING HOLE with drill center marker |
| H2 | MOUNT-HOLE3.0 | MOUNTING HOLE with drill center marker |
| IC1 | Voltage Regulator LM1117 | |
| JP1 | Header 4 | |
| JP2 | Header 4 | |
| JP3 | FTDI connector footprints | |
| JP4 | PIN HEADER | |
| S1 | Small 5-way tactile joystick, COM-10063 | |
| S2 | OMRON SWITCH | |
| U$3 | RFu-328-SMD |
[JSON]
Files
| .solderpad/ | |
| rfu-display.brd | 78.6 KB |
| rfu-display.sch | 583.4 KB |
This project is © Andrew Lindsay, and is published under the terms of the Creative Commons Attribution-ShareAlike 3.0 Unported licence.
